Installation Instruction
5
Technical specifications
Power supply 230V ac 50 Hz
Nominal power 180 W
External device power 12Vdc – 6W
Emergency battery 24 V 1.2 Ah for about 100 manoeuvres in the event of power failure
Opening speed Adjustable up to 70 cm/sec. (1 wing) or up to 140 cm/sec. (2 wings)
Closing speed 70% of opening speed
Capacity One wing 120 Kg
Two wings 80+80 Kg
Wing dimensions One wing 700÷3000 mm.
Two wings 450÷1500 mm.
Working temperature Internal cross-piece from 0°C to +50°C
Anti-crushing Automatic traction restriction in the presence of obstacles
Weight 8,5 kg per linear meter
Service Intensive

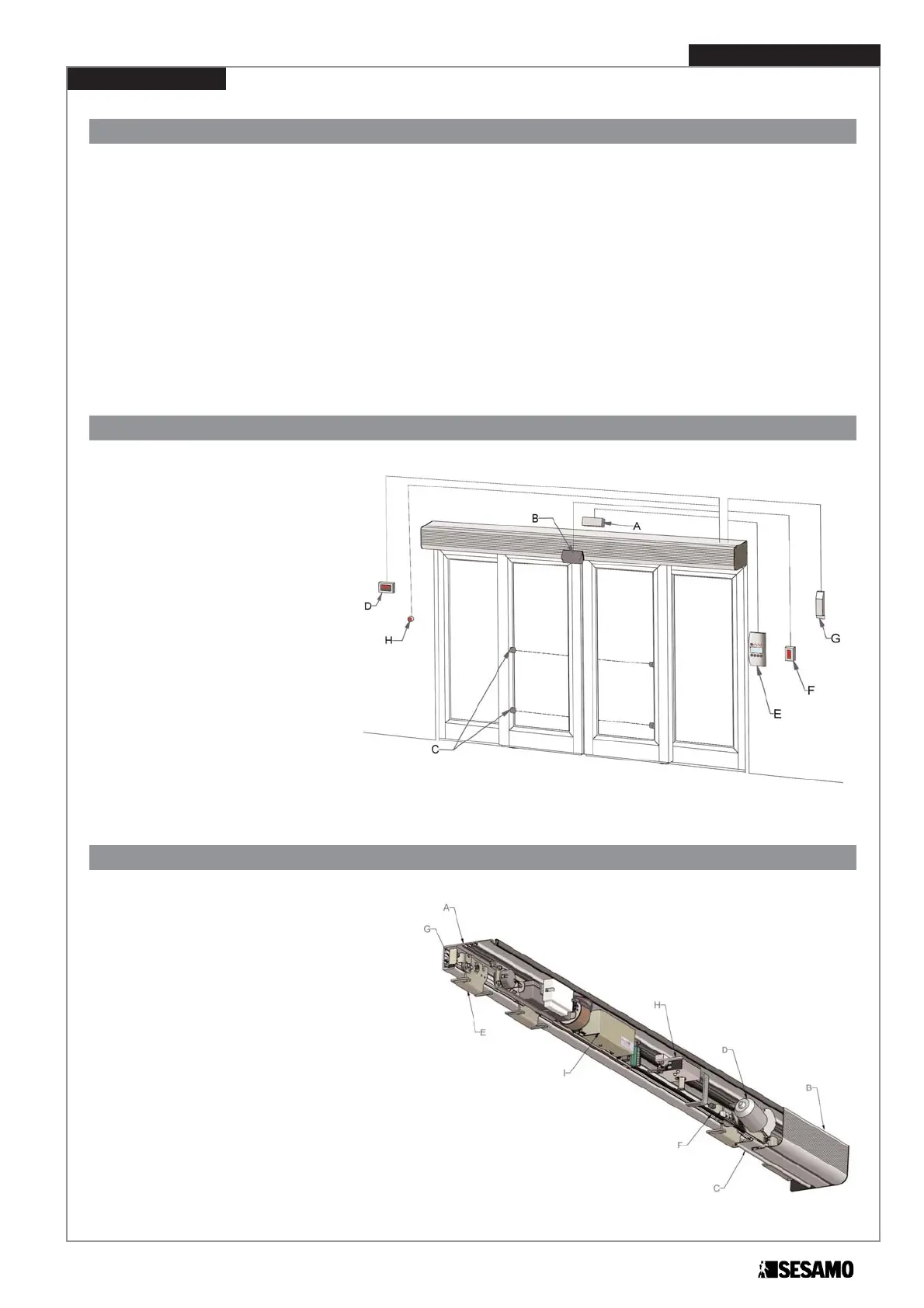

Automatism installation preparation
The automatism is prepared to work
in different accessory and peripheral
configurations. Fig. 1 shows a com-
plete installation where the possible
automatism box access points for
peripheral connections are indicated.
These peripherals include:
A. Entry Radar
B. Exit Radar
C. Safety photocells
D. Circuit breaker (230Vac)
E. Logic selection selector
F. Reset button
G. Manual release handle
H. Safety closing device
Automatism description
The Light Millennium automatism (Fig.2)
is essentially made up of:
A. Extruded aluminium alloy box
B. Extruded aluminium alloy automatism cover
(optional)
C. Bumper profile (optional)
D. Gear motor unit
E. Carriage complete with non-derailment device
and steel wheel.
F. Transmission belt
G. Wing limit stop
H. Electronic wing lock (optional)
I. Integrated movement control modul
Fig. 1
LIGHT MILLENNIUM
Fig. 2
