Installation Instruction
17

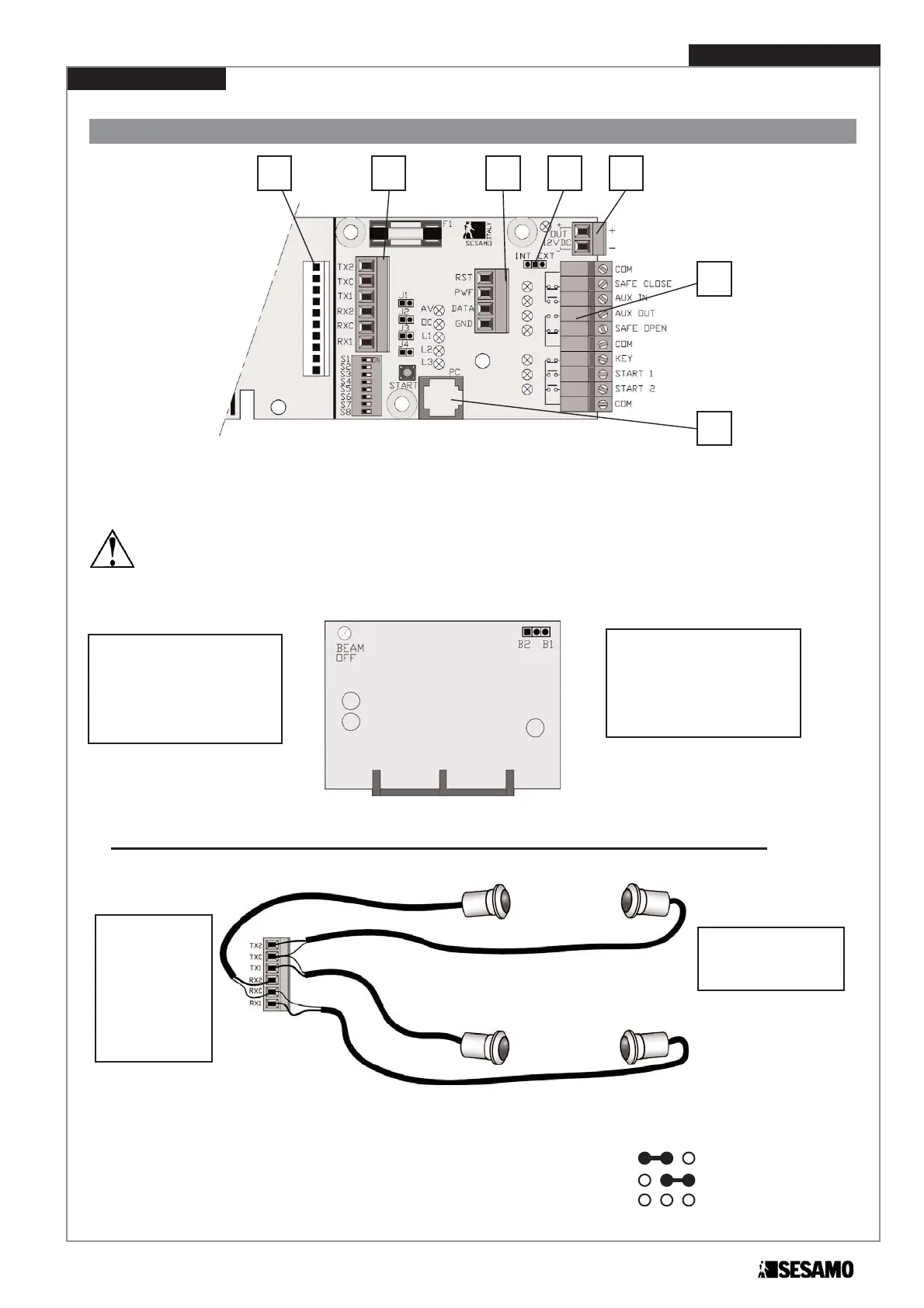

Right Side Electronic Board Connections
A. Photocell amplifier board connector (optional)
Insert the amplifier module observing the assembly direction shown in Fig. 29
WARNING
Select the Jumper for single or double beam and check the red led
B. Photocell beam connector
(only use if the internal photocell amplifier board module is installed)
C. Selector Jumper between Millenium - and external cell amplifier
The system has three selectable working models:
A Millenium amplifier only Jumper close towards INT
B External amplifier only Jumper close towards EXT
C Both Millenium + External amplifier Jumper open
Fig. 31
BEAM OFF
On
) Beam interrupted
Off
) Correct
JUMPER
Closed towards B2
) Double beam
Closed towards B1
) Single beam
Fig. 32
Fig. 33
A RED
small band
distinguishes
the Transmitter
A WHITE
small band
distinguishes
the Receiver
Connect the
photocell’s beams as
in Fig. 33
LIGHT MILLENNIUM
INT EXT
A B D E
F
G
C
