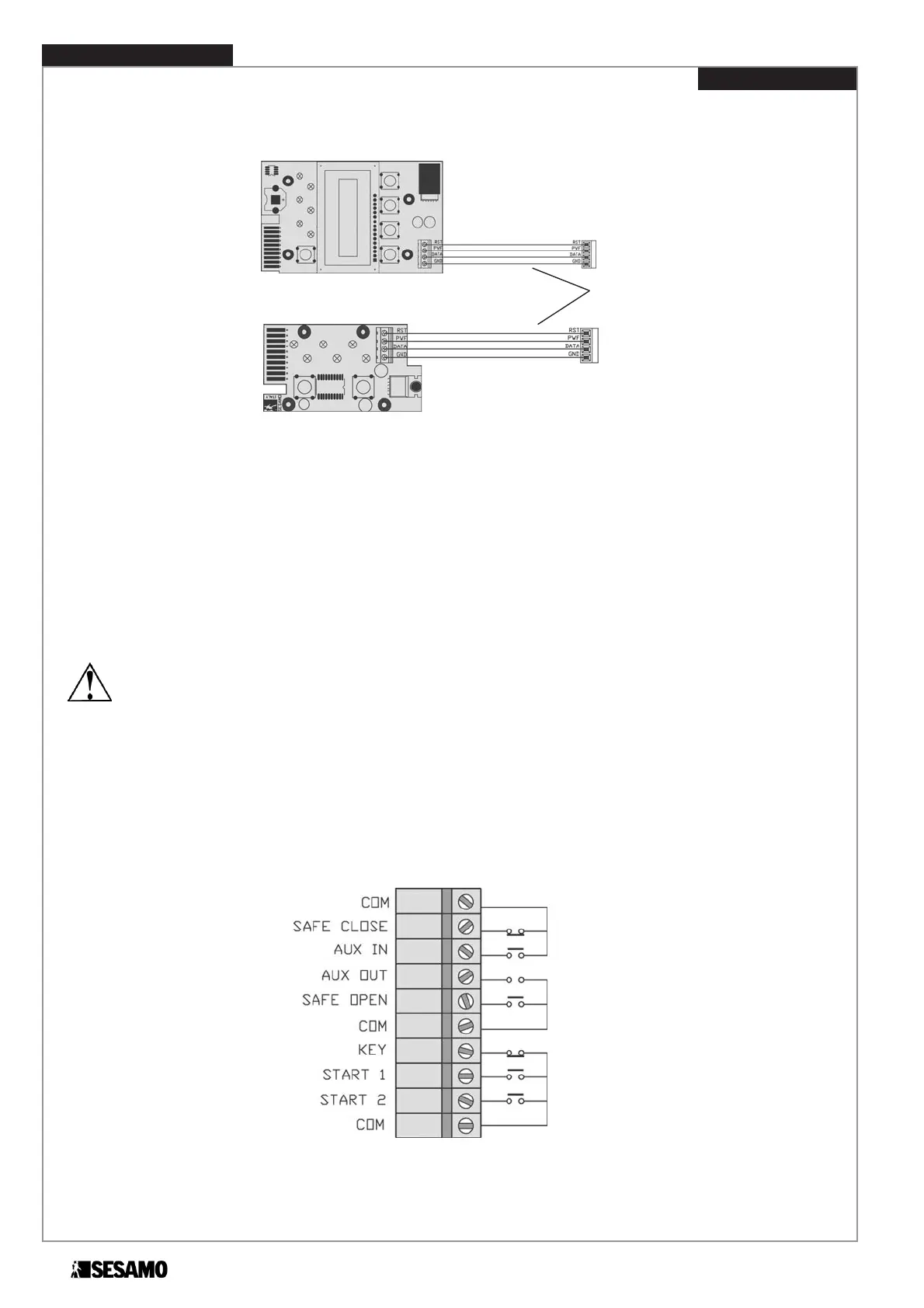

D. Multi-logic selector connector
Use the four conductors in the shielded wire for connections, observing the correspondences indicated by the markings
on the terminal board and multi-logic selector.
Do not connect the shield of the wire used.
For further information on multi-logic selector use, see the instructions for use.
E. External peripheral power connector – 12 Vdc 6W max (500mA)
Real power value may vary from 12 Vdc to about 15 Vdc depending on the resistive load situations connected
to these terminals.
WARNING
Do not invert power polarity. When the green led D39 is on it indicates normal voltage presence 12V. If off check:
• For mains and/or battery voltage
• That fuse F1 is not interrupted
F. External peripheral connector
ADVANCED
SELECTOR
BASE
SELECTOR
Shielded cable with 4 wires 0,22 mm.
(Do not connect the shield of the wire
used)
Fig. 34
Fig. 35
Fig. 36
18
Installation Instruction
LIGHT MILLENNIUM
