PORTS SETUP
Programming the RS232 Settings
This setup allows selection of the settings for the three RS232 communication ports.
The factory default setting for the BI port is 9600 baud, 8 databits, no parity with hardware handshaking
on. For the IN and OUT ports, the factory default is 2400 baud, 8 databits, and no parity.

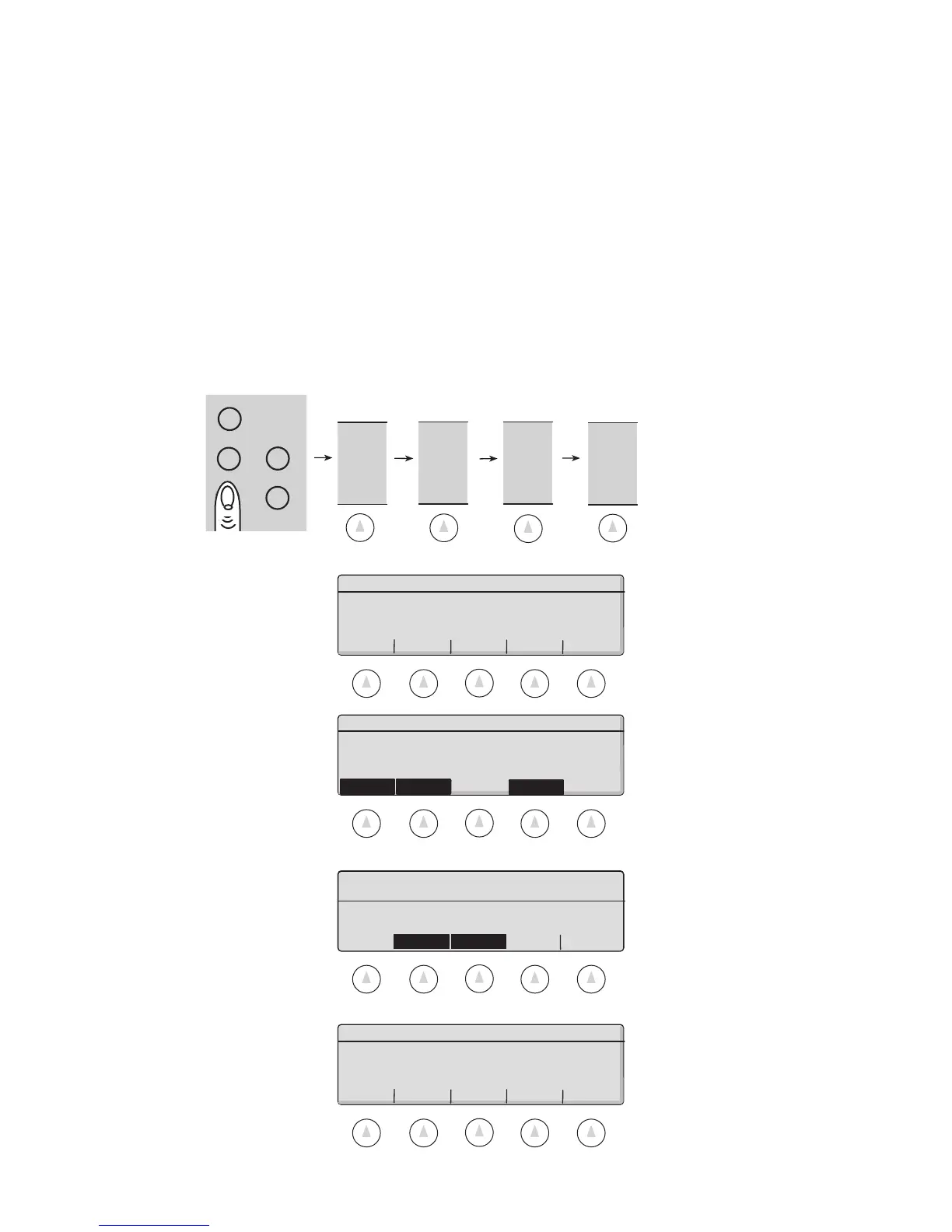

To access the RS232 menu, either follow the menu tree or press the soft keys in the order listed below:
1. Choose the RS232 port to configure.
2. Choose the baud rate.
3. Choose the databit/parity setting.
4. For the BI port only, choose to have hardware handshaking ON or OFF.
Select the baud rate:
B9600
B4800
B2400
B1200
GO BACK
BI OUT IN GO BACK
Select the port to configure:
Select the character format/byte size:
Note: IN & OUT ports share a common byte
8NONE 7ODD 7EVEN GO BACK
ON OFF GO BACK
Select enabling of hardware handshaking:
