GPS data can be received through this option:
COM Port 1: 115.200bps, 8, n, 1
TCP/IP Port: 20.000
Bluetooth: 115.200 bps

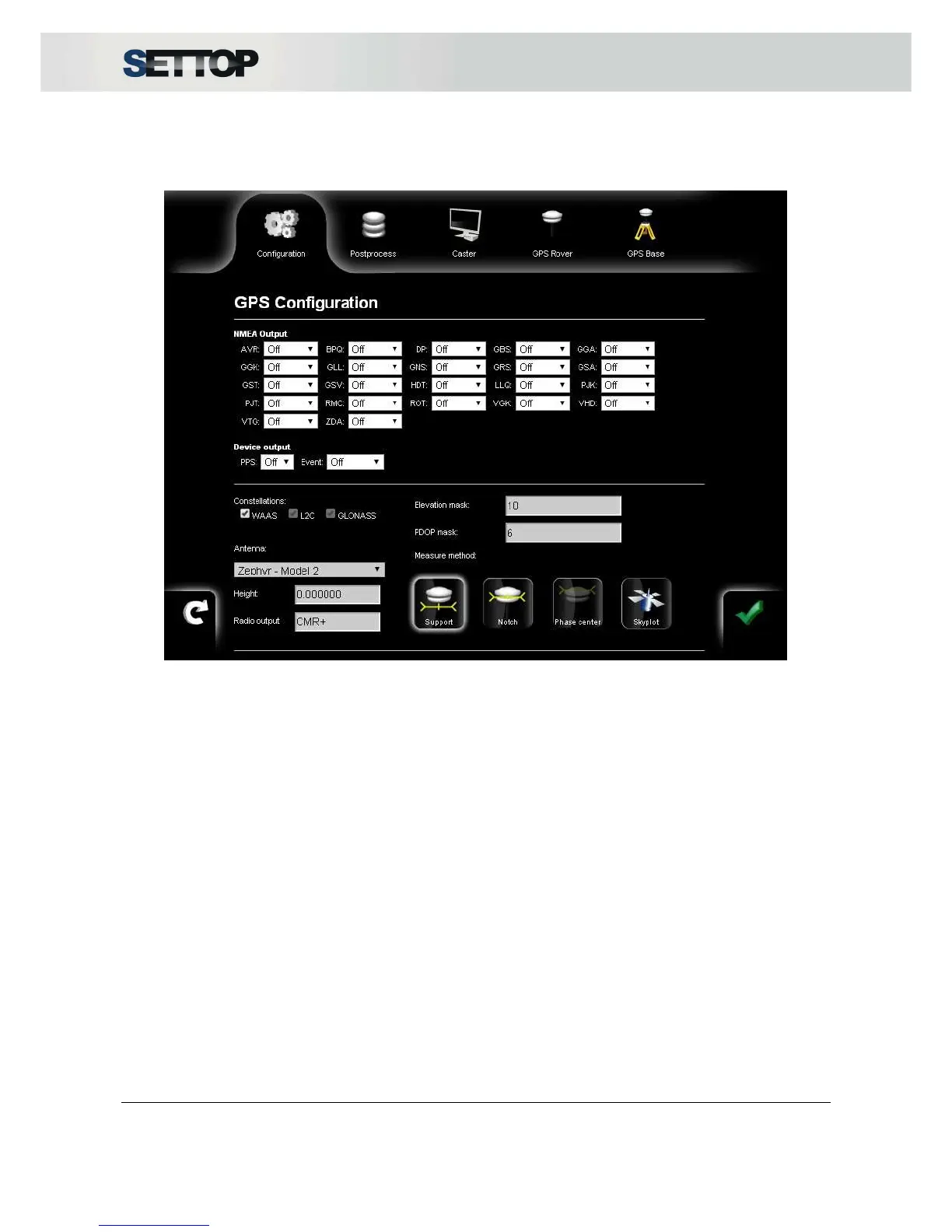

The common settings for the GNSS receiver that will be present in all other sections are:
•
Selecting and tracking constellations (WAAS, GLONASS, L2C)
•
Model Selection of antenna height measurement method
•
Elevation mask and PDOP mask.
Display the Skyplot (distribution of satellites in the sky and signal intensity) and SkyTable (satellite list and
information of these)
