Settop M1 - System Scheme and Views; Front View Layout

SETTOPSURVEY, S.L. Bofarull 14, 08027 Barcelona (Spain) Phone: (+34) 93 340 05 73 Fax: (+34) 93 351 95 18 www.settopsurvey.com info@settopsurvey.com
9
Scheme Settop M1
For a good understanding of the equipment, please study the following diagrams

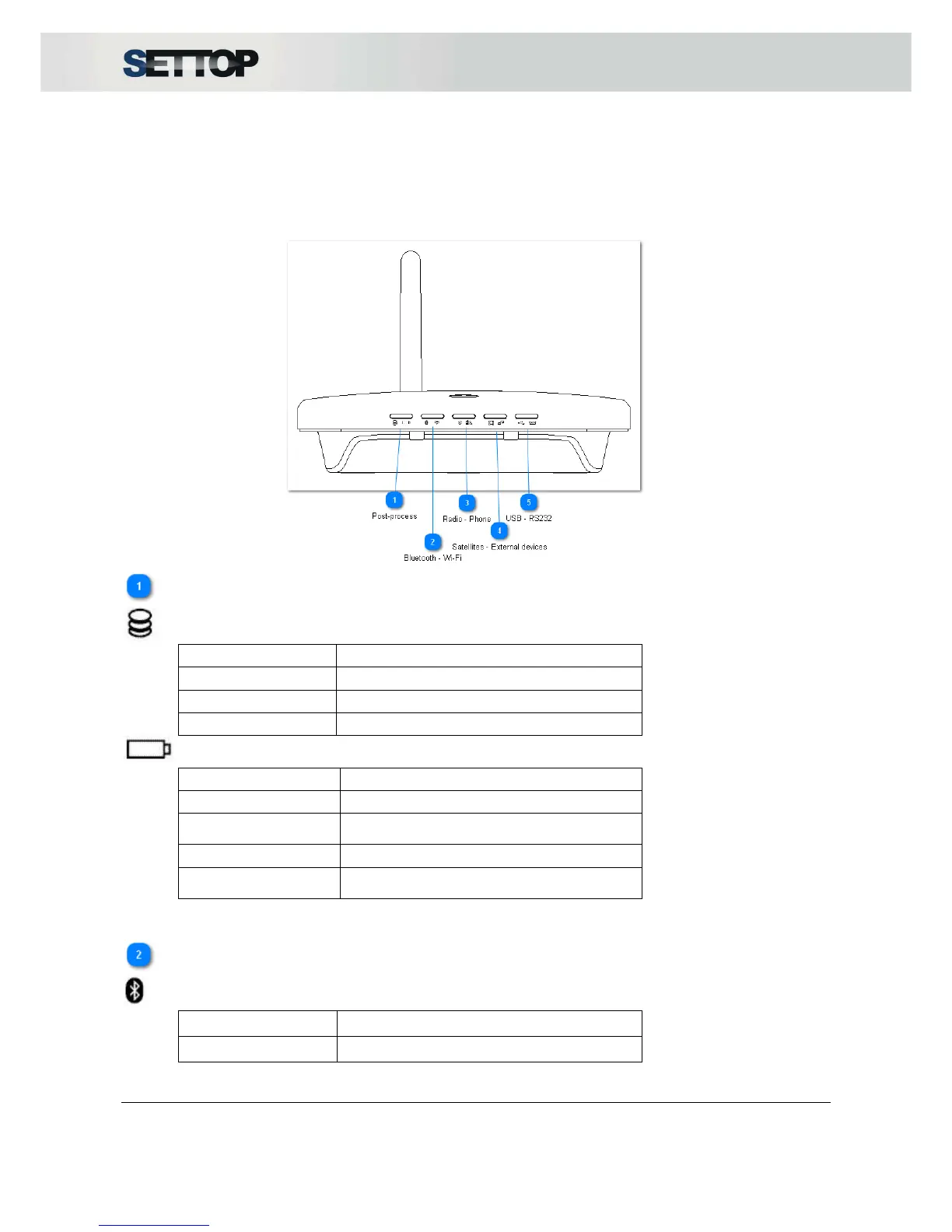

Front View
Post-process
Post-process (Green LED)
Status
Action
Turned Off Doesn't store data
Constant flashing 1s Storing data
Fixed Full memory
Power (Red LED)
Status
Action
Turned Off Not connected
Flashing fast and
continuous
Low battery
Fixed Turned on
Flashing (1) every
10s
Standby
*
* Power on unit, but unit is turned off
Bluetooth - Wi-Fi
Bluetooth (Green LED)
Status
Action
Turned Off Not linked to any device
