SI 480E DIN SIZE WEIGHING CONTROLER
Read Command
1.Current Weight data
ASCII : STX ID(2Byte) RCWT ETX
HEX : 02 30 31 52 43 57 54 03
SI 480E response
STX ID RCWT State1(1byte) State2(1byte) P decimal point(1byte)
+/-(1byte) Current weight(7byte) unit(2byte) ETX
State1 : O(Over load) , S(Steady), U(Unsteady)
State2 : N(Net weight), G(Gross weight), P+No. : decimal point
number

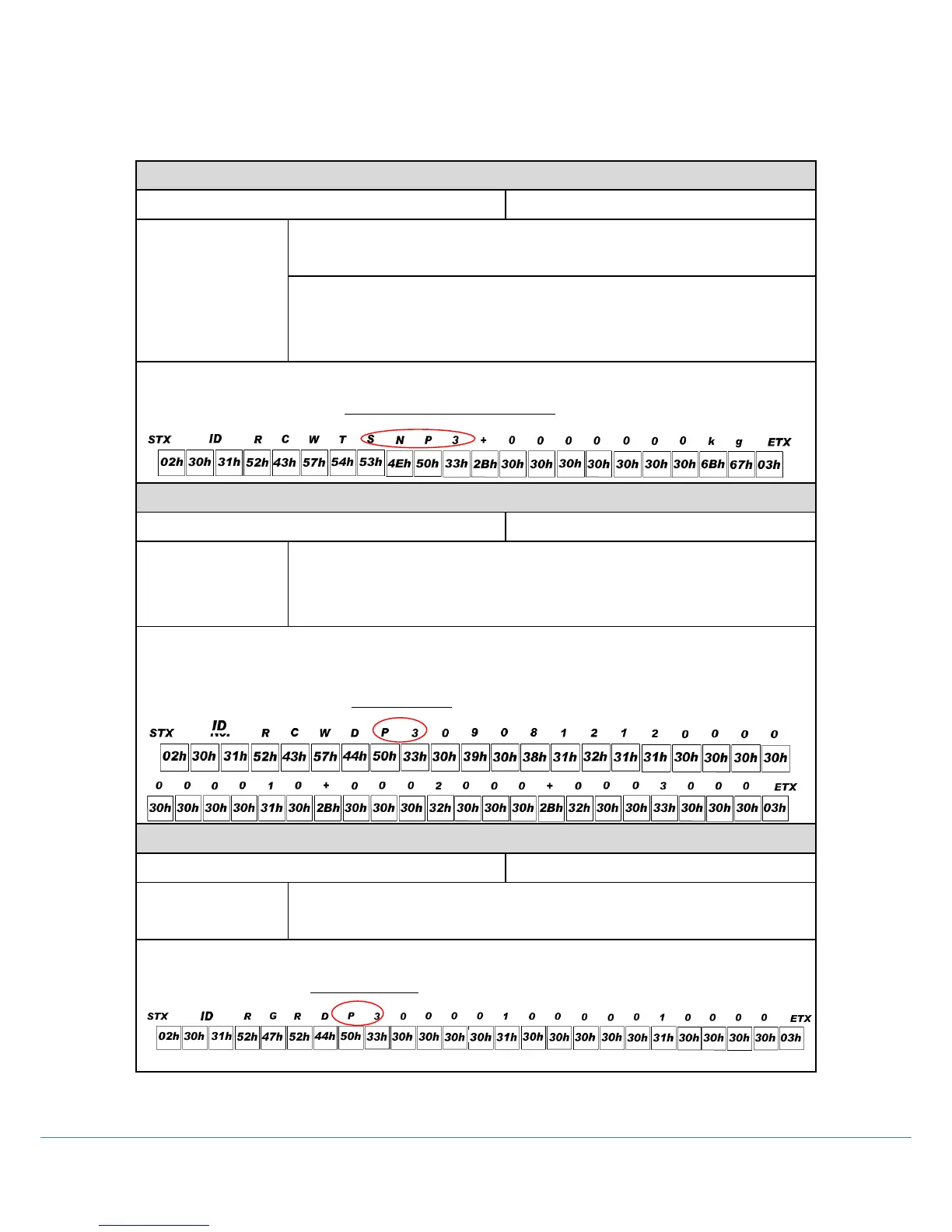

Ex) Steady(S), TARE not used(N), 0.000kg
State1, State2, Decimal point
2. Indicator memory data
ASCII : STX ID(2Byte) RCWD ETX
HEX : 02 30 31 52 43 57 44 03
SI 480E response
STX ID RCWD P decimal point(1byte)DATE(6byte) TIME(6byte) the
no. of weighing (6byte) +/- TARE(7Byte) +/- current
weight(7byte) unit(2byte) ETX
Ex) DATE : Aug 12
th
,2009, TIME : 12:00:00, the no. of weighing : 10, TARE : 2.000kg, current
weight : 3.000kg
decimal point
3. Grand Total data
ASCII : STX ID(2Byte) RGRD ETX
HEX : 02 30 31 52 43 57 44 03
SI 480E response
STX ID RGRD P decimal point(1byte) the no. of weighing (6byte)
Accumulated weight(10byte) unit(2byte) ETX
Ex) the no. of weighing : 10 , Accumulated Weight : 10.000kg
decimal point
