SFA COM2002 - Page 11

11
UK
7. OPERATION OF THE ALARM UNIT SANICOM® 2)

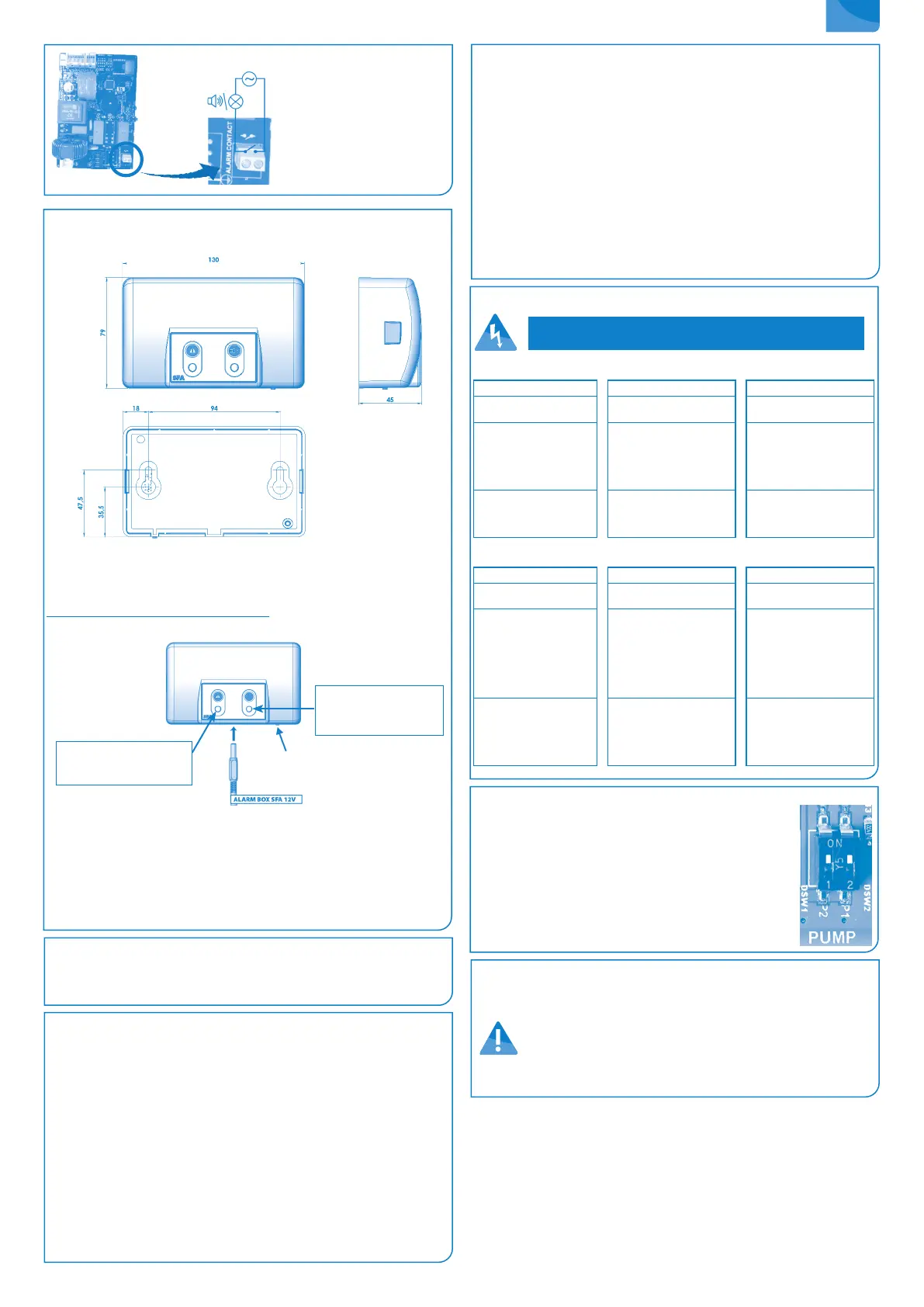

For wall mounting of the unit, use the following image as a guide (in mm) :
The SANICOM® alarm unit does not require a separate power supply. The
power is supplied through the SANICOM®. In case of power failure, the alarm
unit’s battery takes over.
Connection of the alarm unit to the device : Connect the alarm cable directly
to the unit.
1/ The red general alarm LED reproduces the operation of the corresponding
LED on the SANICUBIC® control panel. The alarm unit sounds as long as the
fault is present. To stop the alarm, press the reset (*) button on the device’s
keypad or the button under the alarm unit.
2/ The yellow «mains» LED indicates the power supply status of the alarm unit:
- steadily glowing light = live SANICOM® connected to the mains supply
- flashing = power failure on the SANICOM®.
(*) Reset
Red LED:
alarme
Yellow LED:
mains supply
9. INSPECTION AND MAINTENANCE
1/ Inspection
The proper running of the wastewater lifting station must be checked by user
once a month observing at least two starting cycles.
2/ Maintenance
The lifting station has to be regularly maintained by a qualied person.
Intervals should:
- Every 3 months for lifting stations installed in commercial premises
- Every 6 months for lifting stations installed in collective buildings
- Once a year for lifting stations installed in individual houses
During maintenance, the following should be done:
a) Check the watertightness of connections by checking pipework to and from
the lifting station
b) Activate the gate valves, check their smooth function and their
watertightness ( grease if necessary)
10. FAULT FINDING GUIDE
Alarm on SANICOM® 1 device :
FAULT DETECTED POSSIBLE CAUSES ACTION TO BE TAKEN
Flashing red alarm LED • Water level detection
system faulty
• Consult SFA after-sales
service
Steady red alarm LED • Blocked vent pipe
• Blocked discharge
• Blocked pump or out
of order
• Discharge too high or
excessive inow
• Check that air ows
freely in both directions in
the vent pipe
• Review installation
• Consult the SFA
customer services
LED o • Power outage
• Faulty printed circuit
board
• Check the electrical
system
• Consult the SFA
customer services
Alarm on the SANICOM® 2 control box:
FAULT DETECTED POSSIBLE CAUSES ACTION TO BE TAKEN
Siren + ashing red
general alarm LED
• Water level detection
system faulty
• Consult the SFA
customer services
Siren + steady red
general alarm LED
• Blocked vent pipe
• The device has
encountered the following
problem: blocked pipe,
pump(s) blocked
• The device has
encountered a power
failure
• Check that air ows
freely in both directions in
the vent pipe
• Press the manual start
button to reset the device
(alarm o)
• Consult SFA customer
services
Siren + general alarm
LED + ashing yellow
mains LED
• Mains cut • To stop the siren, press
on the Force Start button
• Check the electrical
system
• Consult the SFA
customer services
DISCONNECT THE STATION BEFORE ANY
INTERVENTION!
11. DISMANTLING
INSTRUCTIONS RESERVED EXCLUSIVELY FOR QUALIFIED
PROFESSIONAL SPECIALISTS
If one of the motors cannot be made to operate correctly, use
of that motor can be “disabled” by setting the corresponding
switch on the board (P1, P2 : Switches 1 and 2 for motors 1 and
2).
The motor thus “disabled” can be removed. The unit operates
on the other motor.
c) Open and clean up the non return-valve system, check it is functioning
correctly
d) Clean up the pumping system and its connections, check the impeller and
the cutting system (for macerating pumps)
e) Clean up the inside of the collecting tank
f) Visually check the lifting station’s electrical control box functions.
Once the checks have been made, restart the lifting station in compliance
with the manual instructions to check its proper running.
A report should be issued detailing the checks and any notable points.
If non-compliances that cannot be solved have been found, the qualied per-
son in charge of the maintenance work has to immediately inform the lifting
station’s user.
3/ Maintenance contract
It is advised to the users to establish a maintenance contract for regular main-
tenance and checking.
12. GUARANTEE
2 years guarantee as from its date of purchase subject to correct installation
and correct use.
Any damage due to foreign bodies such as cotton, condoms,
sanitary towels, wet wipes, food, hair, metal, wood or plastic
objects, will not be under guarantee. Solvents, acids and other
chemicals can also cause damage to the unit, and will invalidate
the guarantee.
8. STANDARD
This piece of equipment complies with the EN 12050-2 standard (Lift station for
euents not containing faecal matter) and European Low Voltage Directive.
Alarm contact can be connected
to a powered system. This
contact closes as soon as the
station is in alarm mode (except
in the case of area alarm) and
remains closed as long as the
alarm sounds.
Dry contact NO
External alarm
Max. 250 V / 16A
