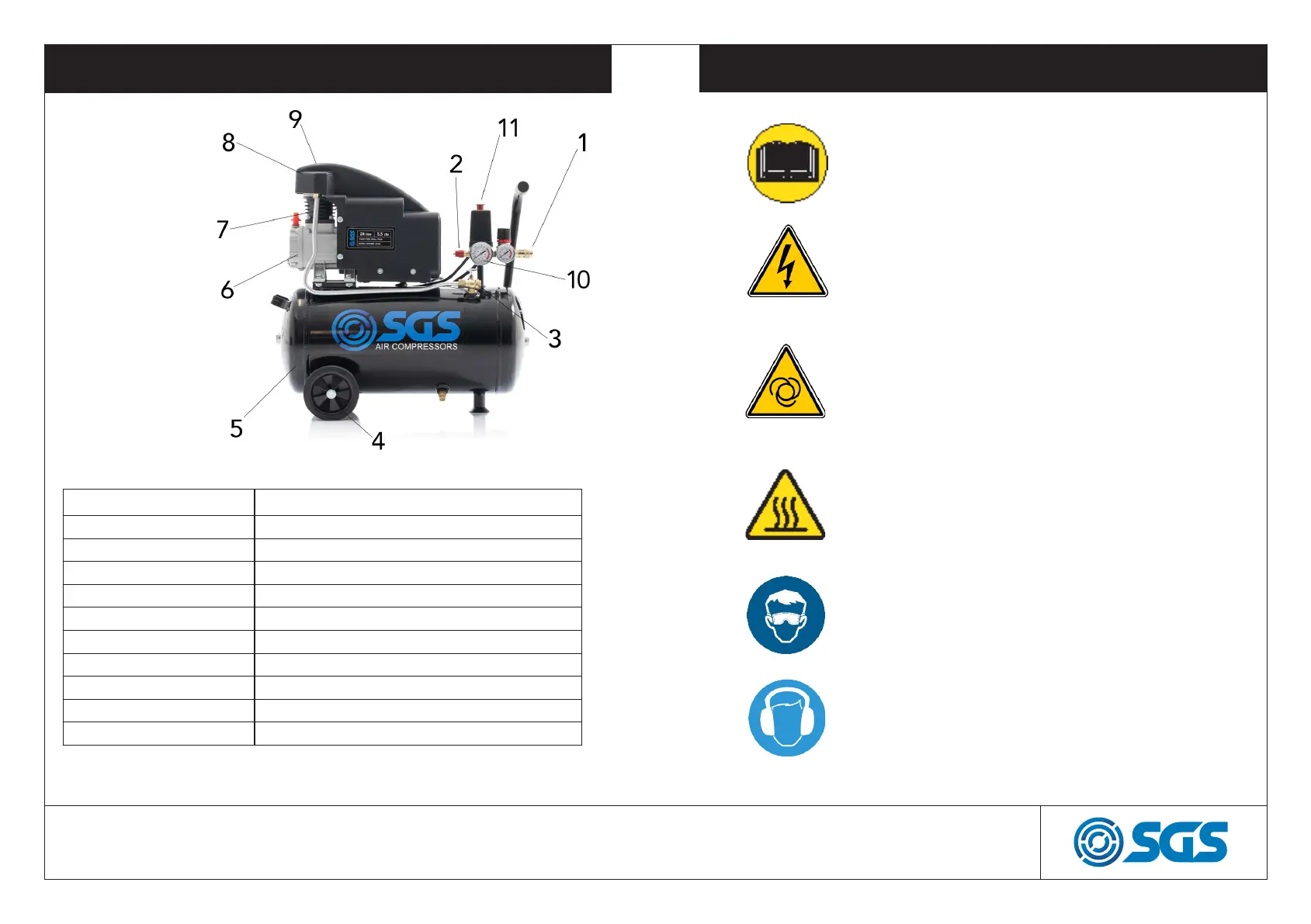

1. Outlet Valve
2. Safety valve
3. One-way Valve
4. Wheel
5. Air tank
6. Pump
7. Respirator
8. Fan cover
9. Muffler
10. Pressure gauge
11. Pressure switch
MAIN COMPONENTS
WARNING SYMBOLS
READ THIS INSTRUCTION MANUAL CARE-
FULLY BEFORE OPERATING OR ADJUSTING
THE COMPRESSOR.
Risk of electric shock. The compressor must
be disconnected from the mains supply before
maintenance or removing any covers. Do not
use in a damp environment.
Risk of accidental start-up. The compressor
could start automatically in the event of a
power cut and subsequent reset. Do not carry
the compressor while it is connected to the
power source, or when the tank is filled with
compressed air.
This compressor contains surfaces which may
reach a high temperature during operation.
Never operate with the motor housing re-
moved.
Air and condensation water can burst from the
compressor when the drain plug is removed.
Wear a safety goggles and ear protectors
when using this compressor.
This compressor produces a high sound level
during operation. Ear protection should be
worn.
Model SC24L
Power 0.75kW / 1.5HP
Voltage 230 V @ 50 Hz
Motor Poles 2 P
Rated Speed 2850 rpm
Delivery 4.2/ 5.5 CFM
Discharge Pressure 115PSI / 0.8MPa
Tank Capacity 24 L
Dimensions 580 x 255 x 580 mm
Net Weight 23 kg
Noise Specification LWA 97dB
