PAGE 16

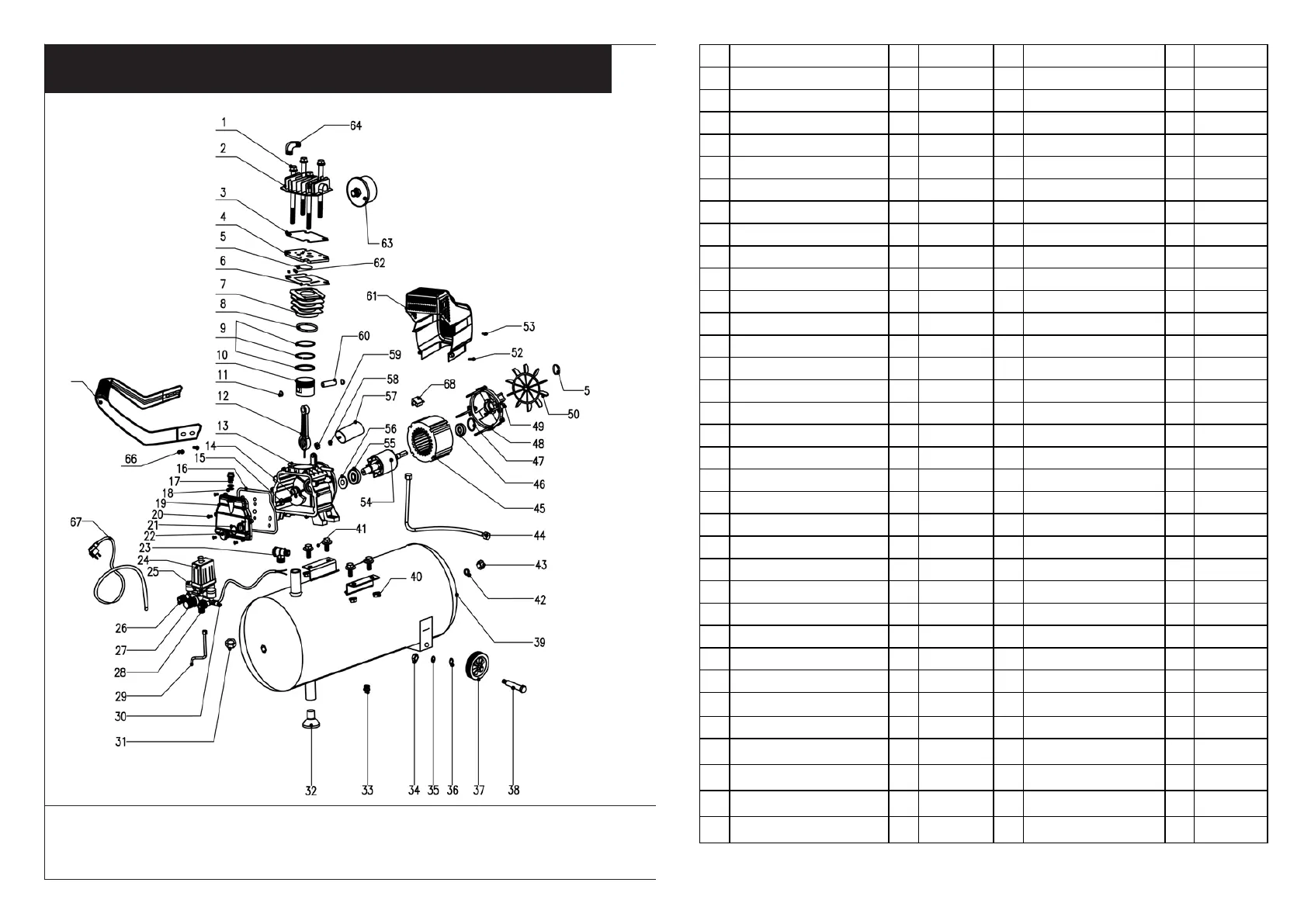

REPLACEMENT PARTS DIAGRAM
No. Part Qty Part No No Part Qty Part No
1 Bolt M8x103 4 905001 35 Washer 10 2 905033
2 Cylinder cover 1 905002 36 Spring washer 10 2 903623
3 Cylinder cover gasket 1 905003 37 Wheel 2 905034
4 Valve plate 1 905004 38 Wheel bolt M10 2 905035
5 Valve clack 1 905005 39 Tank 1 905036
6 Valve plate gasket 1 905006 40 Lock nut M8 4 900391
7 Cylinder 1 905007 41 Lock bolt M8x30 4 905037
8 Cylinder gasket 1 905008 42 Sealed ring φ18x2.4 2 905038
9 Piston ring 3 905009 43 Stem Rp1/2 2 905039
10 Piston 1 905010 44 Discharge pipe 1 905040
11 Circlip 2 905011 45 Stator 1 905041
12 Conncting rod 1 905012 46 Bearing 6203 1 905042
13 Crank case 1 905013 47 Conugated washer 1 905043
14 Crank 1 905014 48 Motor cover 1 905044
15 Hex bolt M8x22(left) 1 903627 49 Bolt M5x105 4 903830
16 Rubber gasket 1 905015 50 Fan 1 905045
17 Breather pipe 1 905016 51 Circlip 1 905046
18 Sealed ring 13x2.5 2 905017 52 Bolt ST3.9x19 2 905047
19 Crank case cover 1 905018 53 Bolt M5x8 2 903676
20 Bolt M6x10 6 901925 54 Rotor 1 905048
21 Oil leveler gasket 1 905019 55 Brearing 6204 1 905049
22 Oil leveler 1 905020 56 Sealing ring 1 905050
23 Only-way valve 1 905021 57 Capacitance 1 905051
24 Pressure switch 1 905022 58 Washer 8 1 903393
25 Pressure gauge 2 905023 59 Nut M8 1 901995
26 Quick couplers 2 905024 60 Piston pin 1 905053
27 Regulator valve 1 905025 61 Fan cover 1 905054
28 Distributor 1 905026 62 Column 3 2 905055
29 Release pipe 1 905027 63 Air filter 1 905056
30 Safety valve 1 905028 64 Curved head 1 905057
31 Nut Rp1/2 1 905029 65 Plastic hand 1 905058
32 Washer foot 1 905030 66 Bolt M5x12 4 904074
33 Drain valve 1 905031 67 Power cord 1 905060
34 Lock nut M10 2 905032 68 Thermal protector 1 905061
