17 18
1-800-798-7398 sharkclean.com

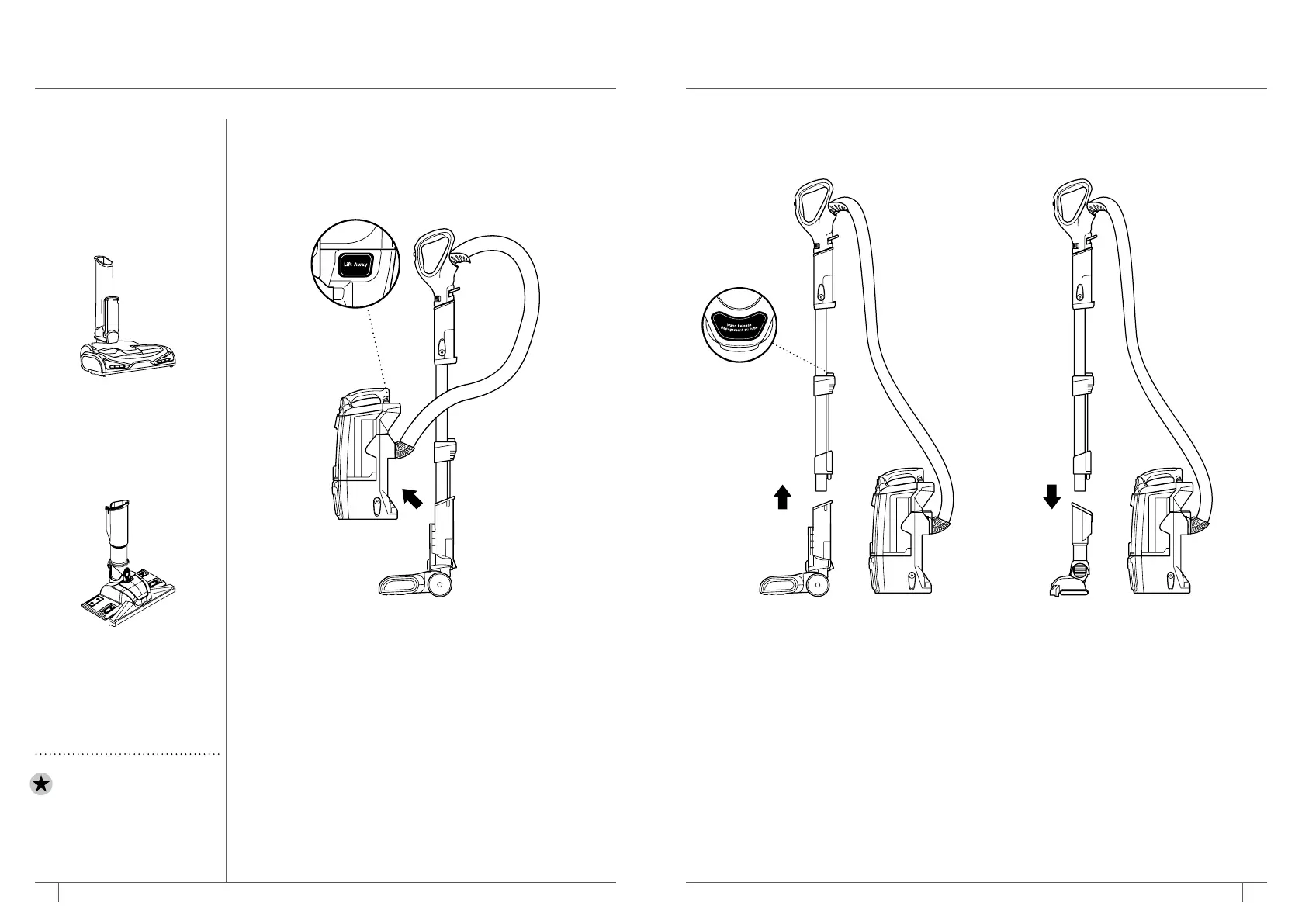

CHANGING YOUR FLOOR
NOZZLES (DUST-AWAY
™
)
STEP 1 STEP 2 STEP 3
Motorized Floor
Nozzle
Use the motorized floor nozzle
for deep-cleaning carpets and
picking up large debris on
hard floors.
If your vacuum comes
with a Dust-Away
™
Hard
Floor Attachment, use
these instructions�
To purchase a Dust-Away
Hard Floor Attachment,
go to sharkclean�com
IMPORTANT: Do not use
the Dust-Away Hard Floor
Attachment without the
microfiber pad attached.
Dust-Away Hard
Floor Attachment
Use the Dust-Away Hard Floor
Attachment to pick up debris
and wipe away fine dust on
hard floors.
DO NOT SCALE DRAWING
nv650_asm
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:5
WEIGHT:
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH
BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
5
4
3
2
1
2 Press Wand Release button to remove
wand from motorized floor nozzle.
1 Press Lift-Away
™
button to lift pod off motorized
floornozzle.
3 Insert wand into the Dust-Away
™
Hard
Floor Attachment.
Hold pod in hand to clean in Lift-Away
™
mode. You cannot use the Dust-Away Hard
Floor Attachment in regular upright mode.
To Next Page
