SHARK TRAILER SERVICE MANUAL • 9.801-302.0 • Rev. 4/14
15
TRAILER
SERVICE MANUAL

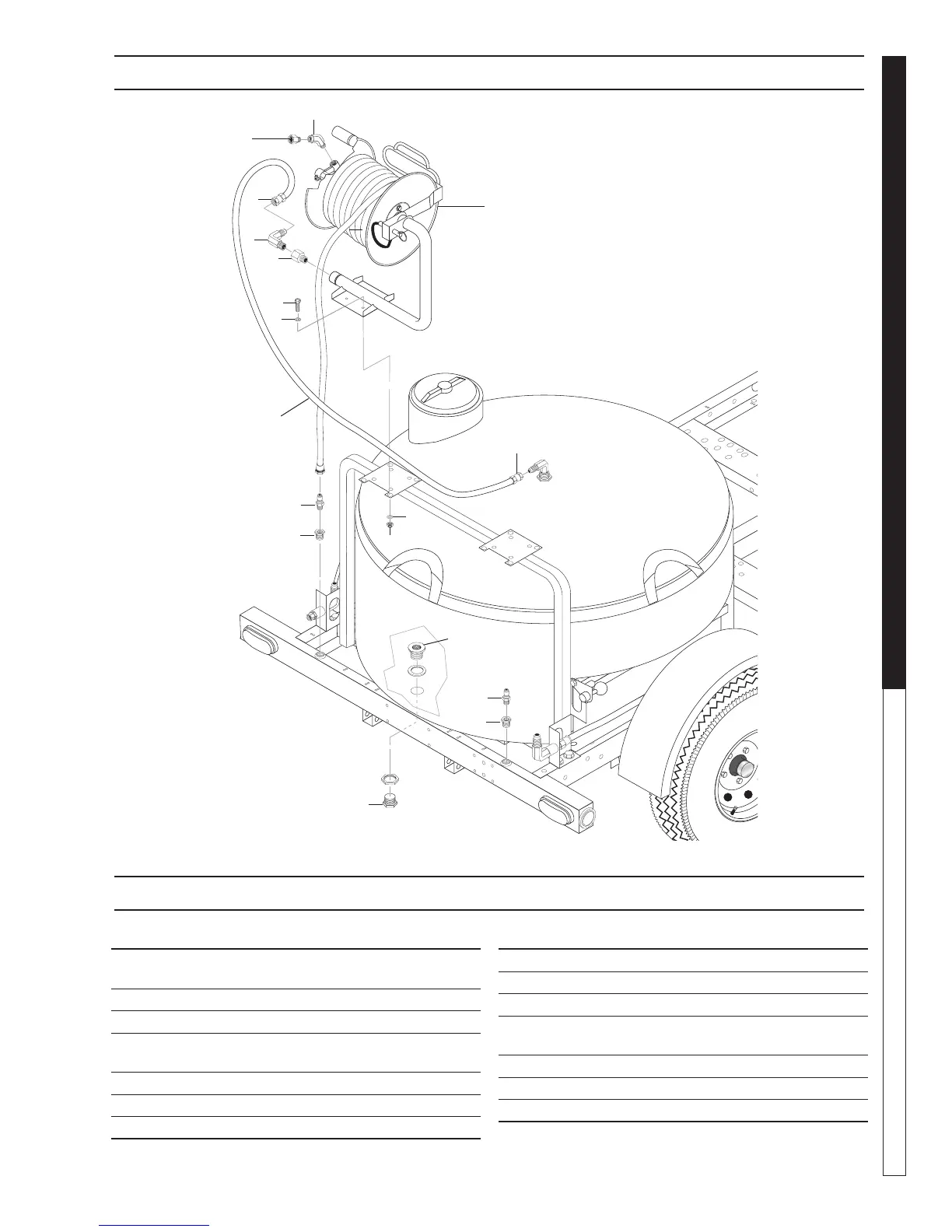

OPTIONAL HOSE REEL LOW PRESSURE 8.917-555.0
ITEM PART # DESCRIPTION QTY
1 9.122-002.0 Hose Reel,100 ft.,
Fixed Base 1
2 9.802-132.0 Elbow, 3/4" JIC x 1/2", 90° 1
3 8.706-834.0 Elbow, 3/8" Street, 45° 1
4 9.802-147.0 Swivel, 3/8" MP x 3/4" GHF
W/Strainer 1
5 9.802-152.0 Swivel, 3/4" FEM, Push-on 2
6 9.802-261.0 Hose, 3/4" Push-on, /FT 30"
7 9.802-171.0 Coupler, 3/8" Plug, Male 2
ITEM PART # DESCRIPTION QTY
8 9.802-722.0 Bolt, 3/8" x 1-1/4" 4
9 9.802-807.0 Washer, 3/8" SAE, Flat Zinc 8
10 9.802-779.0 Nut, 3/8", ESNA 4
11 8.706-984.0 Adapter, 1/2" FPT x 1/2" MPT,
Brass 1
12 9.802-052.0 Bulkhead, 3/4" Polypro 1
13 8.706-397.0 Plug, 3/4" MT, SCH 80 PVC 1
14 8.706-294.0 Bushing, 1/2" x 3/8" Steel 2
NOTE: Garden hose not included
OPTIONAL HOSE REEL LOW PRESSURE PARTS LIST
98013020-5
10
1
5
8
2
3
4
9
6
9
5
11
7
14
7
14
12
13
To Next Page
