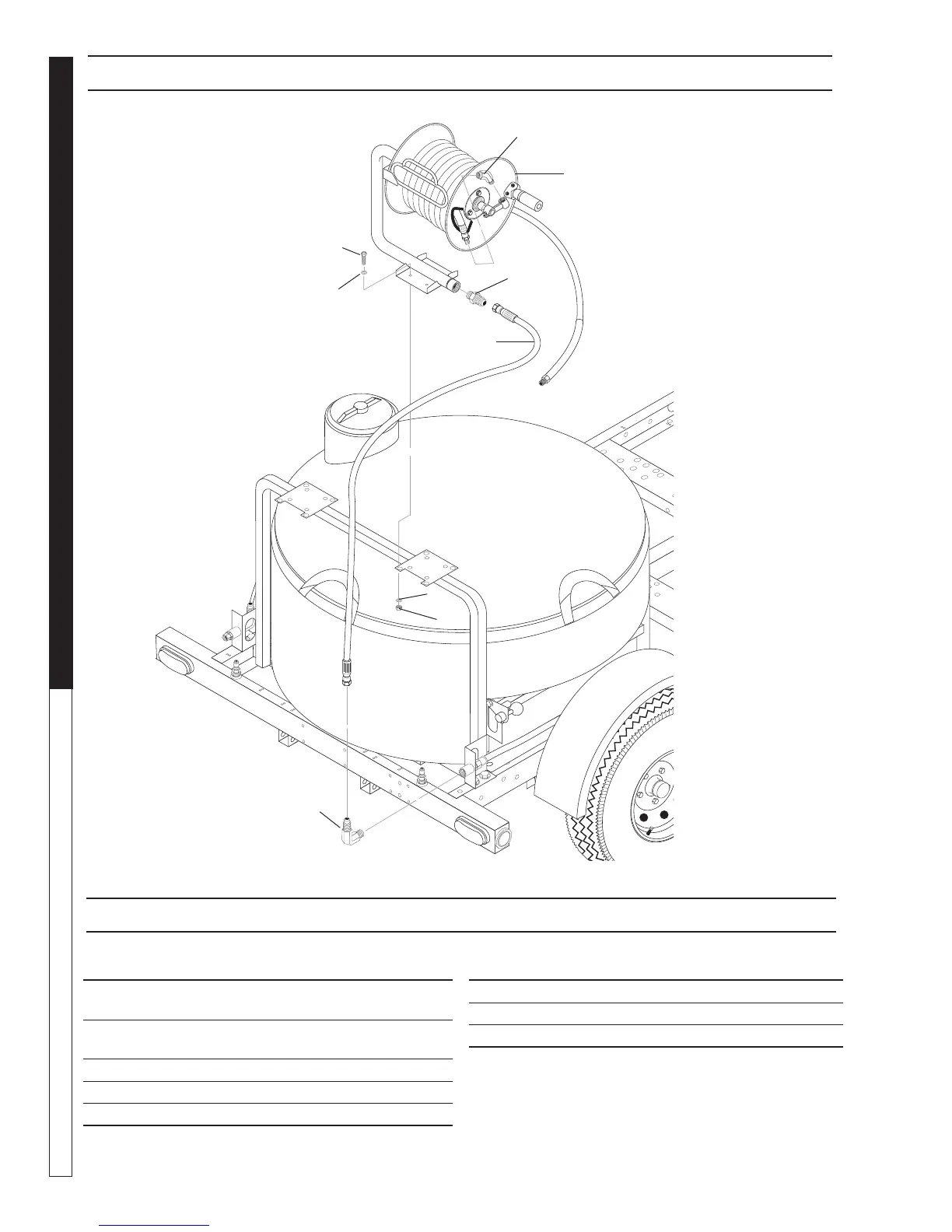

OPTIONAL HOSE REEL HIGH PRESSURE 8.917-554.0
ITEM PART # DESCRIPTION QTY
1 9.122-002.0 Hose Reel, Bolt on 100 ft.,
Fixed Base 1
2 9.802-036.0 Nipple, 1/2" JIC x 3/8" Pipe,
Steel 1
3 9.802-041.0 Elbow, 3/8" Steel, Street, 45° 1
4 9.802-243.0 Hose, 3/8" x 32", 2 Wire 1
5 9.802-040.0 Elbow, 1/2" , JIC , 1/2, 90°, 1
ITEM PART # DESCRIPTION QTY
6 9.802-722.0 Bolt, 3/8" x 1-1/4" 4
7 9.802-807.0 Washer, 3/8" SAE, Flat Zinc 8
8 9.802-779.0 Nut, 3/8", ESNA 4
OPTIONAL HOSE REEL HIGH PRESSURE PARTS LIST
