Sharp 1860L User Manual

16
4-12 Tailstock Operation
1. The tailstock handwheel dial is divided in 0.002mm per graduation. The tailstock
moves forward 5mm per clockwise revolution of handwheel.When revoluting
clockwise, the quill will retract and, to the last, the center will release
automatically.
2. Push the tailstock quill locking lever ○
30
forward to fix the tailstock quill. For
fixing the tailstock onto the bedway, push tailstock body clamping lever ○
29
forward.
3. Adjust the centerline of the tailstock by loosing the tailstock set-over adjusting
screw ○
26
on the side firstly, then adjust the screw on the other side. After
adjustment, tighten the screw on both sides.

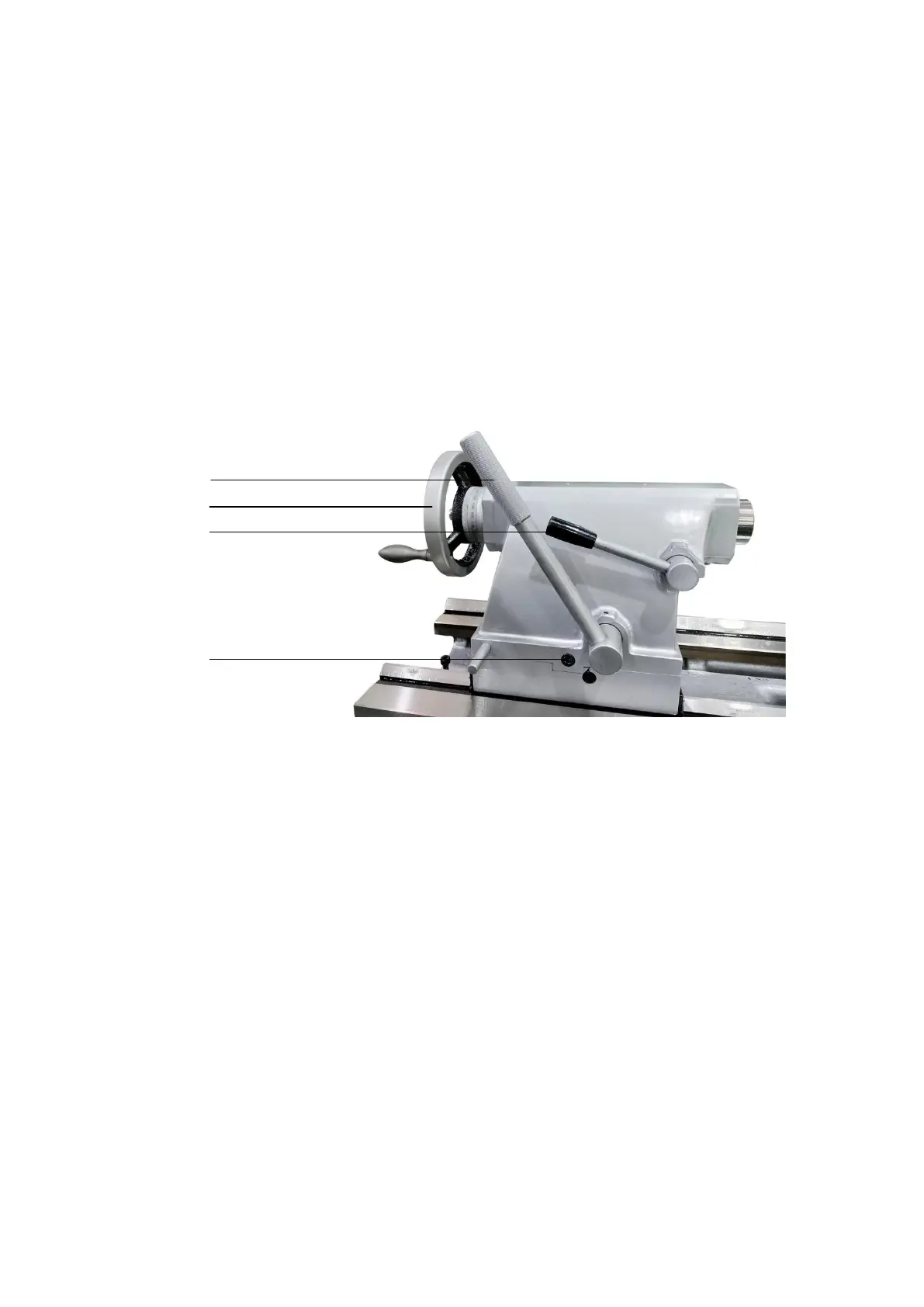

Fig.4-12
○
29
○
28
○
30
○
26
