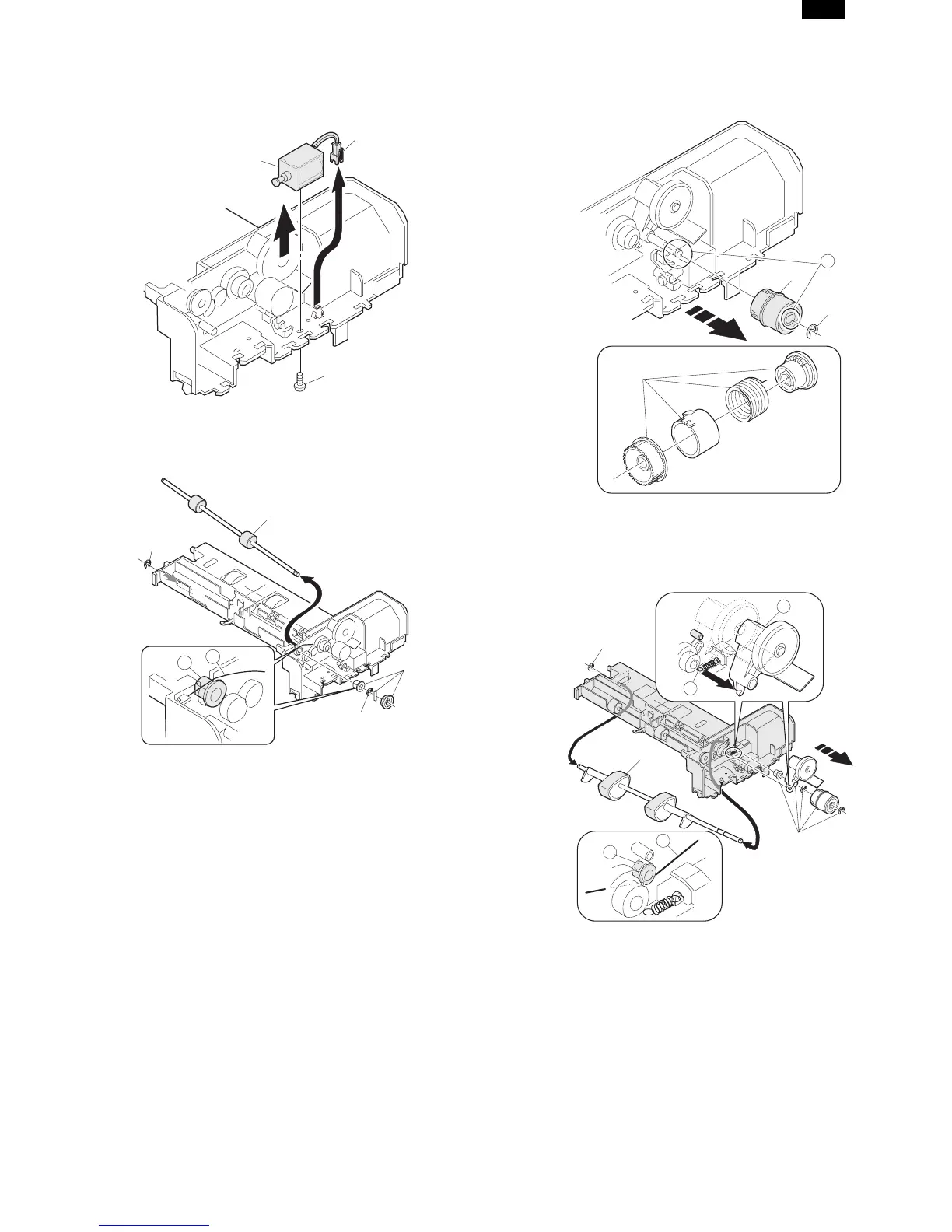

C. Paper feed solenoid
1) Remove the screw.
2) Remove the connector.
3) Remove the paper feed solenoid.
D. Transport roller
1) Remove two E-rings.
2) Remove the transport roller.
*
Install so that the earth spring A is brought into contact over
bearing B.
E. Paper feed clutch
1) Remove the E-ring.
2) Remove the paper feed clutch.
3) Remove the parts.
*
When installing, fit the cut surface A.
F. 2nd paper feed roller
1) Remove the E-ring and the parts.
2) Remove the 2nd paper feed roller.
*
When installing, hang the 2nd connection arm on the 2nd
connection arm SP B. Be sure to install so that the earth
spring C is in contact under the bearing D.
1
2
3
4
2
1
3
A
B
B
1
2
1
C
D
A
A
1
2
3
AL-1250
6-4
