Sharp AL-1020

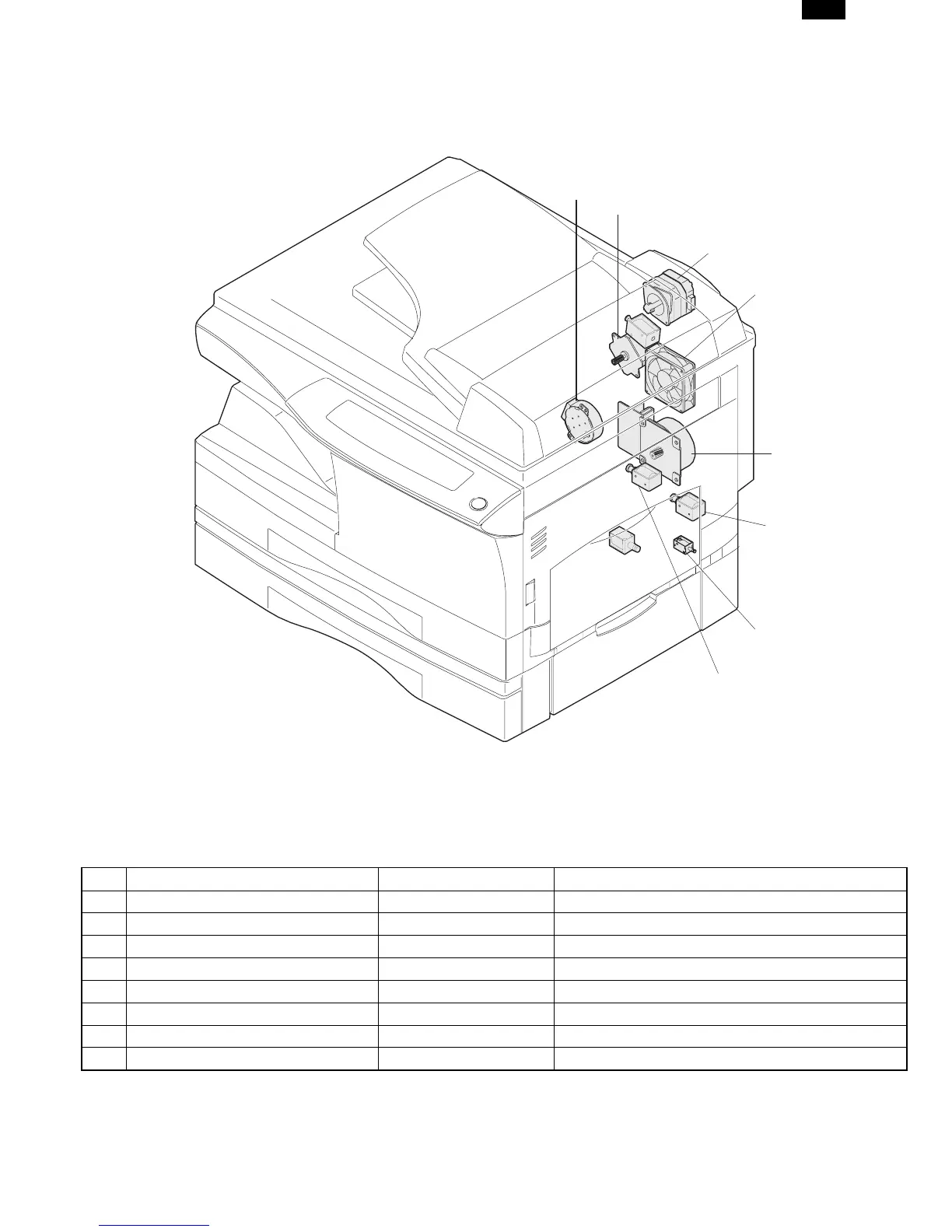

4. Motors and solenoids
No. Part name Control signal Function,operation
(1) Main motor MM Drives the copier.
(2) Mirror motor MRMT Drives the optical mirror base (scanner unit).
(3) Toner motor TM Supplies toner.
(4) Cooling fan motor VFM Cools the optical section.
(5) Resist roller solenoid RRS Resist roller rotation control solenoid
(6) Paper feed solenoid CPFS1 Cassette Paper feed solenoid
(7) Multi paper feed solenoid MPFS Multi manual pages feed solenoid
(8) SPF motor SPFM Drives the single pass feeder
(1)
(2)
(3)
(4)
(5)
(7)
(6)
(8)
AL-1250
3-3
