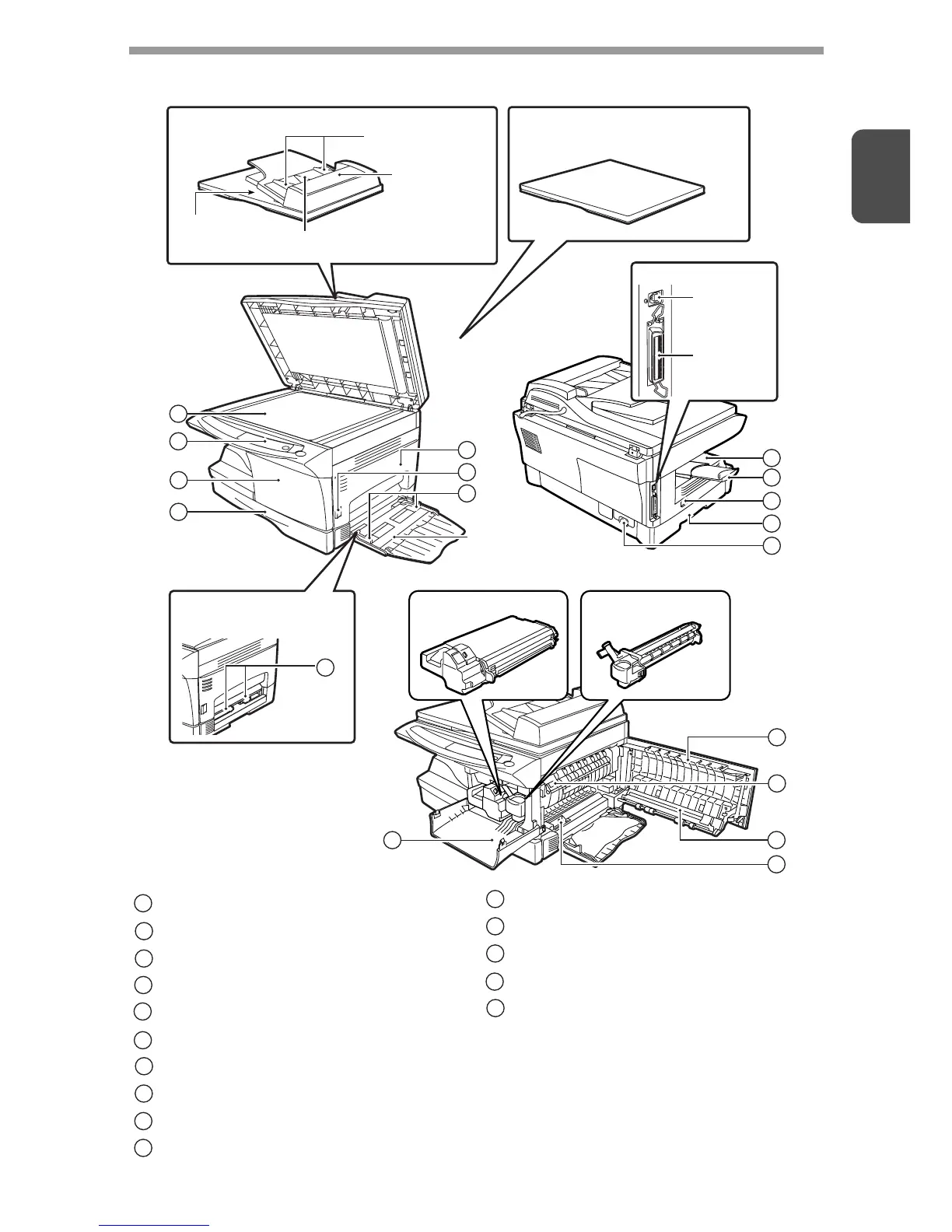

PART NAMES
TD cartridge Drum cartridge
SPF (AL-1457)
Original
exit area
Original cover (AL-1217)
2
3
4
1
5
7
6
8
9
10
11
13
14
15
7
Single bypass
(AL-1217)
Multi-bypass
tray (AL-1457)
Original guide
Original feeder tray
Feeding
roller cover
5
3
12
Interface
USB
interface
Parallel
interface
Original table
Operation panel
Front cover
Paper tray
Side cover
Side cover open button
Bypass paper guides
Paper output tray
Paper output tray extension
Power switch
1
2
3
4
5
6
7
8
9
10
Handle
Power cord socket
Fusing unit release lever
Transfer charger
Charger cleaner
11
12
13
14
15
