AL-1551CS EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 1
[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES
1. Appearance
*1 SPF only *2 RSPF only
2. Internal

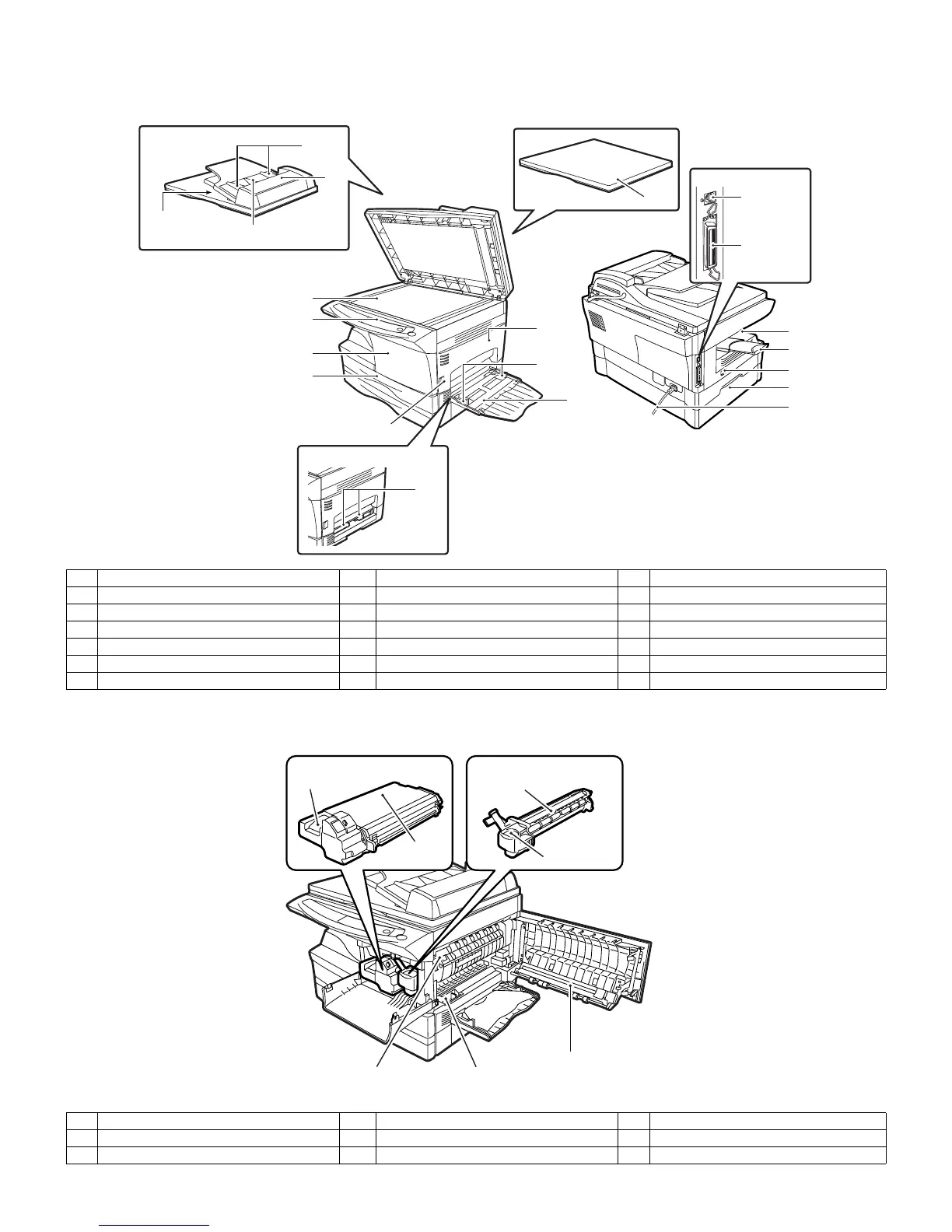

1 Original cover 2 Side cover 3 Bypass tray
4 Bypass tray guides 5 Side cover open button 6 Front cover
7 Paper tray 8 Operation panel 9 Original table
10 Document feeder tray 11 SPF exit area *1 / RSPF exit area *2 12 Original guides
13 Feeding roller cover 14 USB interface 15 Parallel interface
16 Paper output tray 17 Paper output tray extension 18 Power switch
19 Handle 20 Power cord
Interface
SPF/RSPF
8
6
7
9
11
12
13
10
2
1
14
15
4
3
5
16
17
18
19
20
Single bypass
4
1 TD cartridge lock release button 2 TD cartridge 3 Drum cartridge
4 Drum cartridge handle 5 Fusing unit release lever 6 Charger cleaner
7 Transfer charger
5
7
6
1
2
4
3
