– 5 –
5

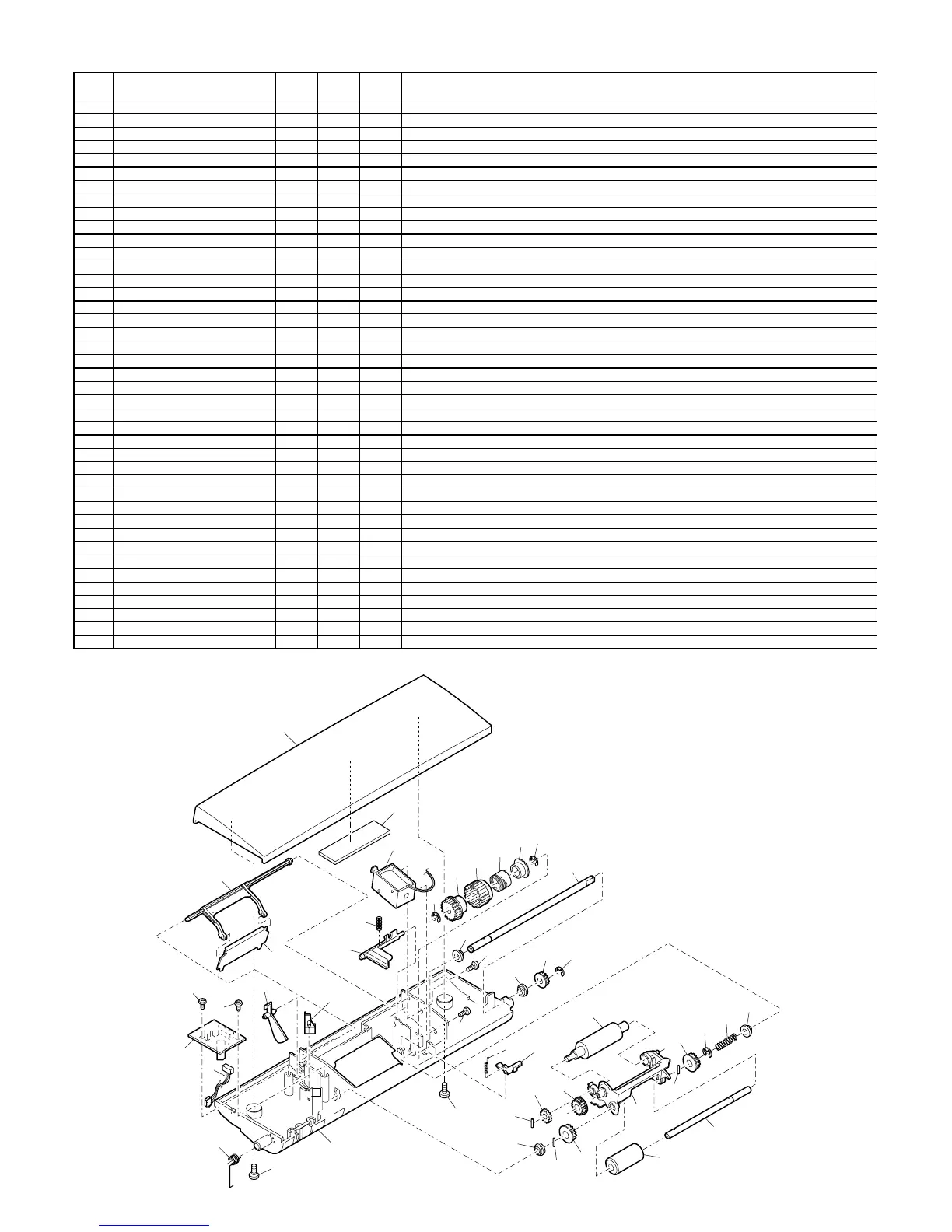

SPF pick up unit (AL-1553)
5
SPF pick up unit (AL-1553)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 GCAB-0008QSJZ AM D Open and shut cabinet
2 PSPO-0002QSZZ AC C Stopper cushion
4 MARMP0003QSZ1 AD C Stopper arm
5 LSTPP0001QSZ1 AD C Paper stopper R
6 XEBS730P08000 AC C Screw(3×8)
7 CPWBF0155QSE1 AM E SPF sensor PWB
8 DHAI-0293QSZZ AE C Sensor harness
9 MLEVP0009QSZZ AD C Set detect lever ACT
10 MLEVP0010QSZZ AE C Open and shut detect lever ACT
11 RPLU-0004QSZ1 AQ B PU solenoid
12 XBPS730P06KS0 AB N C Screw(3×6KS)
13 MARMP0002QSZZ AD C Solenoid arm
14 MSPRT0067QSZ1 AB C Solenoid arm spring
15 XRESP40-06000 AA C E-ring(E4)
16 NGERH0073QSZZ AE C Clutch gear(20T)
17 PPIPP0008QSZZ AD C Clutch sleeve
18 MSPRC1316FCZ1 AE C MF clutch spring B
19 LBOSZ1851FCZZ AC C STK clutch boss
20 LBSHZ0303FCZZ AC C M bushing C
21 NSFTZ0012QSZZ AG C Clutch shaft
22 LBSHZ0006QSZZ AC C M Bushing 2
23 NPLYZ0010QSZZ AE C 20MXL pulley
24 XRESP30-06000 AA C E-ring(E3)
25 MSPRT0066QSZ1 AC C Clutch pawl spring
26 PTME-0019QSZZ AD C Clutch pawl
27 NROLP0024QSZ1 AH C Pick-up roller
28 NGERH0990FCZZ AB C Gear(16T)
29 XPSSP20-07000 AA C Spring pin(φ2-7)
30 NGERH0992FCZZ AB C Gear(20T)
31 NROLR0922FCZ2 AR C Manual feeding roller
32 NSFTZ0011QSZ2 AF C PF shaft
33 MSPRC0115QSZZ AB C Paper feeding spring
34 MARMP0004QSZZ AF C Pick-up arm
35 LFRM-0011QSJ2 AL D Paper feeding frame
36 MSPRD0114QSZ1 AD C PF frame spring
(Unit)
901 CFRM-0011RS58 BF E SPF pick-up unit
PRP02511
1
2
4
5
6
7
9
10
11
12
13
15
16
17
18
19
20
21
23
24
25
26
28
29
30
31
32
33
34
35
6
15
30
29
22
14
8
6
15
20
20
30
6
29
27
36
12
