Sharp AL-1552 - Page 27

– 18 –
N

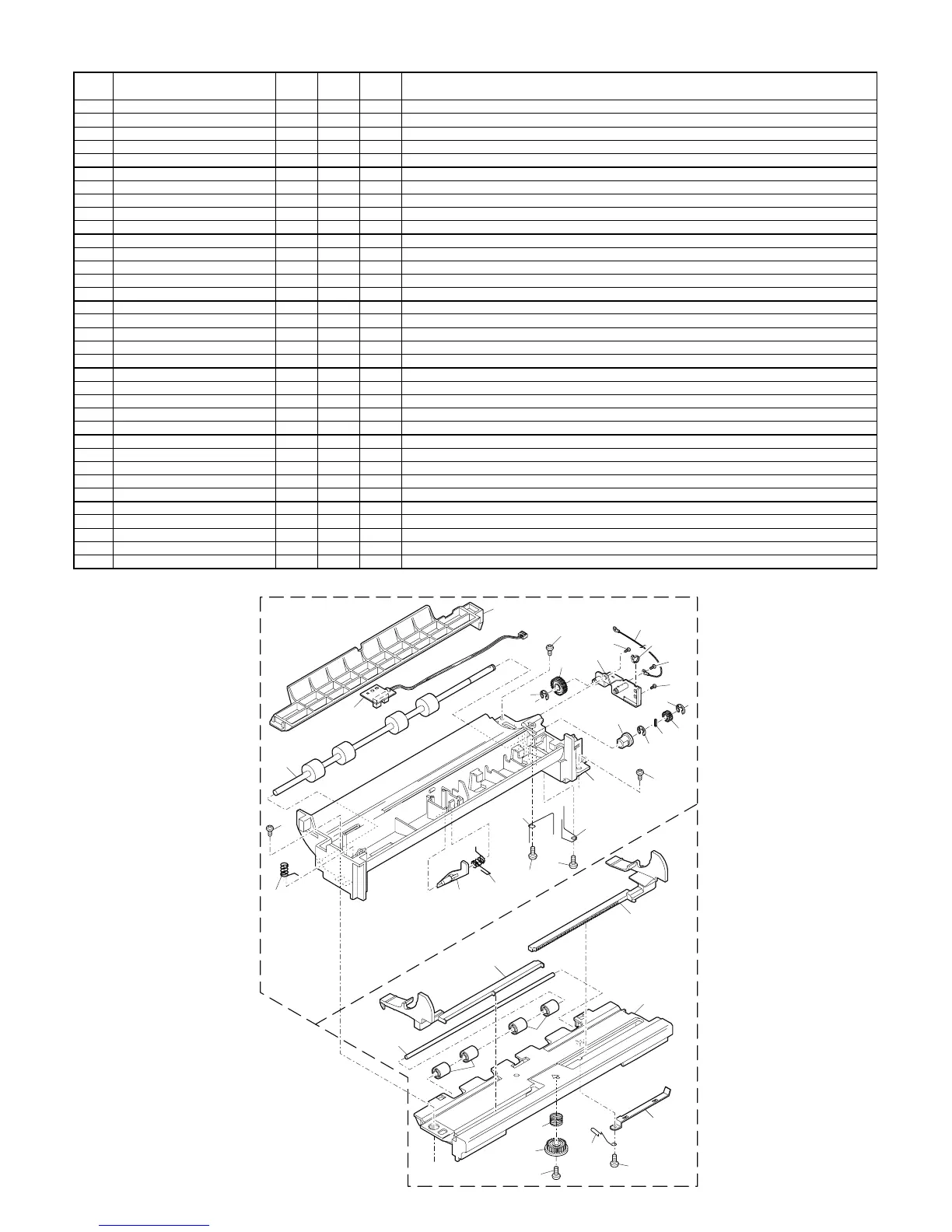

Single manual paper feeding unit (AL-1552)
N
Single manual paper feeding unit (AL-1552)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 CPWBF0116RS54 AP E MFD sensor PWB
2 DHAI-0295QSZZ AC C Manual feeding earth harness
3 LBNDJ0013FCZ1 AE C Wire band
4 XHBS730P06000 AC C Screw(3×6)
5 CPLTM0023QS02 AF C SB plate 1
6 NGERH0972FCZZ AB C Gear(27T)
7 XRESP40-06000 AA C E-ring(E4)
8 XEBS730P08000 AC C Screw(3×8)
9 NGERH0990FCZZ AB C Gear(16T)
10 XPSSJ20-07000 AA C Spring pin(φ2-7)
11 NBRGP0562FCZZ AD C Bearing
12 NROLR0016QSZZ AT C MF transport roller
13 LFRM-0006QSJZ AN D Single manual feed frame
14 MSPRC0039QSZ1 AC C Earth spring
15 XBPS730P06KS0 AB N C Screw(3×6KS)
16 MSPRC0038QSZ1 AC C Actuator spring
17 MLEVP0007QSZZ AD C Actuator
18 MSPRC0080QSZZ AB C SB transport earth spring
20 PGIDM0014QSJ1 AF C DUP upper guide
21 PGIDM0013QSJZ AF C SB side guide R
22 PGIDM0012QSJZ AF C SB side guide F
23 NSFTZ0007QSZZ AG C Roller shaft
24 NROLP1122FCZZ AF C PS upper roller
25 LFRM-0007QSJ2 AL D Single manual feed lower frame
26 MSPRC0036QSZ1 AB C MF spring
27 NGERH0021QSZZ AD C Manual feeding gear
28 XEPS730P06X00 AA N C Screw(3×6X)
29 MSPRP0079QSZZ AD C SB earth plate spring
30 XEBS730P06000 AA N C Screw(3×6)
31 MSPRD0108QSZZ AC C SB lower earth spring
32 XEBS740P12000 AA N C Screw(4×12)
33 MSPRC0109QSZZ AC C Spring
501 CFRM-0007RS54 AX E SB manual feeding lower frame unit
502 CFRM-0006RS53 BB E Single manual paper feeding unit
501
502
1
2
3
4
5
6
7
7
7
9
10
11
12
13
14
15
16
17
22
21
25
26
27
28
24
24
23
18
8
8
8
20
32
32
32
29
30
31
PRP02524
33
