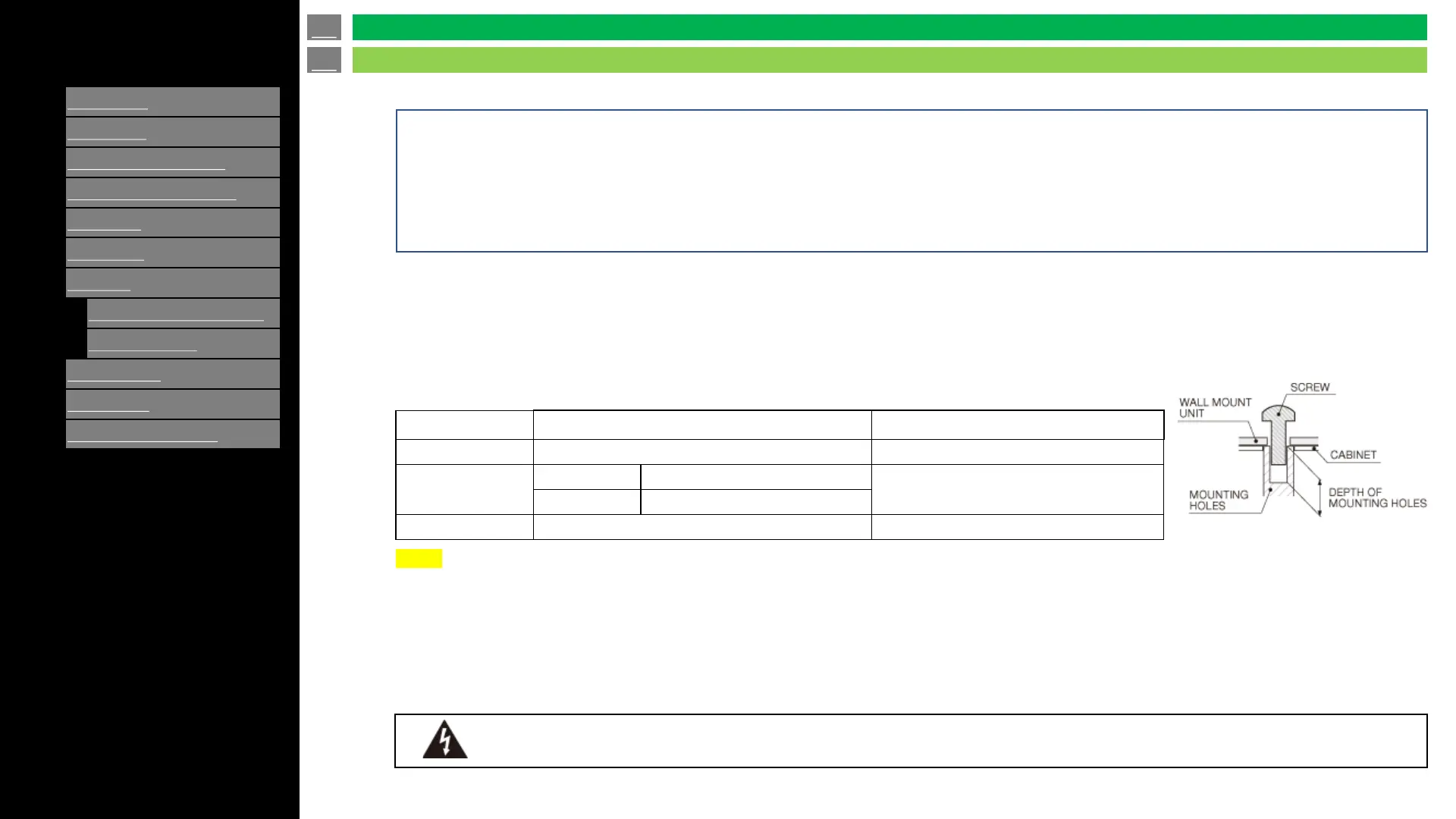

For the screws, refer to the table shown below.
NOTE
• To use this TV mounted on a wall, remove the cable tie as needed.
• Do not use screws that do not comply with the VESA standard screw specifications.
• Do not use screws that are longer than the standard length. Screws that are too long may cause damage to the inside of the TV.
• Do not fasten the screws too firmly or loosely. This may damage the product or cause the product to fall, leading to personal injury. SHARP is not
liable for these kinds of accidents.
• SHARP is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used, or the consumer fails to follow the
product installation instructions.
Do not install the wall mount kit while your TV is turned on. It may result in personal injury due to electric shock.
• Screws which suits for each models are set in the box.
• Especially, 50”, 55”, 65” models are different length screws required for either upper side and lower side.
• Screws for each upper and lower side are packed to separate bags (50”, 55”, 65” models).
• Please take care length of screws.
- Long length screws: for upper side
- Short length screws: for lower side
For 4P-B50EJ2U, 4P-B55EJ2U and 4P-B65EJ2U
For 4P-B75EJ2U
• Screw length is the same for upper side and lower side.
• 4 pcs. of sleeves are set in the box. Please insert these to each VESA holes before fasten screws.
en-US 56
Setting the TV on the Wall
Appendix

Sharp AQUOS 4P-B65EJ2U Specifications

General

Screen shape	Flat
LED backlight	Yes
Response time	6 ms
Display diagonal	65 \
Display brightness	330 cd/m²
Display technology	LCD
Native aspect ratio	16:9
LED backlighting type	Direct-lit LED
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Display number of colors	1.07 billion colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1920 x 1080 (HD 1080), 3860 x 2160
Display refresh rates supported	60 Hz
Motion interpolation technology	-
RMS rated power	16 W
Number of speakers	2
Headphone outputs	0
HDMI ports quantity	3
Common interface (CI)	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Power consumption (standby)	- W
Power consumption (typical)	180 W
Package type	Box
Package depth	151.89 mm
Package width	1588.01 mm
Package height	938.02 mm
Package weight	23000 g
Operating temperature (T-T)	0 - 40 °C
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
Control type	Wireless
Stand type	Legs stand
Stand color	Black
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)

Weight and Dimensions

Depth (with stand)	73.66 mm
Width (with stand)	1446 mm
Height (with stand)	835.66 mm
Weight (without stand)	16400 g
