Preparation
15
CAUTION
• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital
TV Set Top Box (STB), PC or other external equipment.
• Refer to the relevant operation manual (Digital TV Set Top Box (STB), VCR, DVD player, etc.) carefully before making
connections.

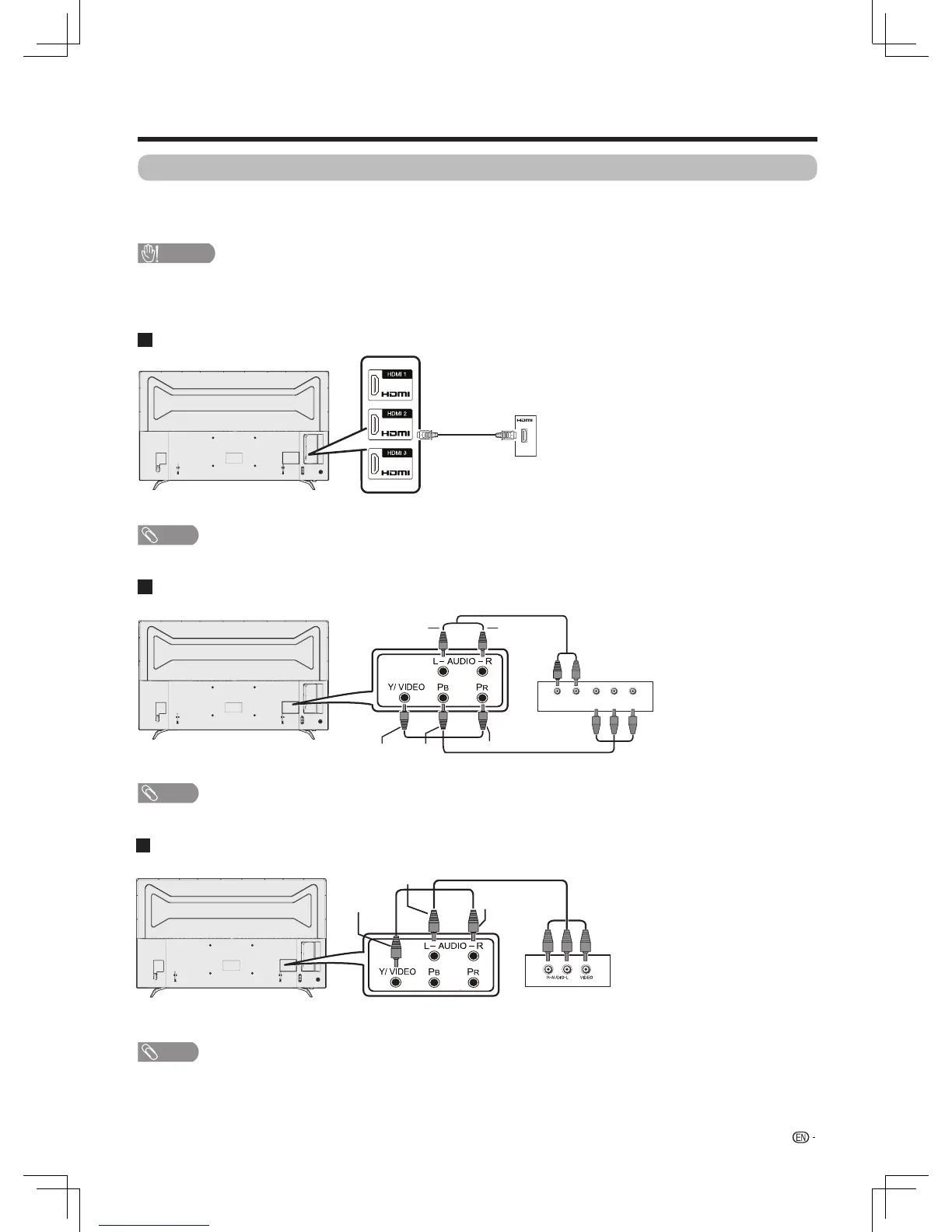

Connecting external devices
When using component cable* (commercially available)
When using AV cable* (commercially available)
When using HDMI cable (commercially available)
Digital TV STB/VCR/
Game console/
Camcorder/DVD
Player
NOTE
• When using a TV set-top box to watch TV programs, use the set-top box remote control to switch channels.
NOTE
• Insert the terminals by colour.
NOTE
• Insert the terminals by colour.
Audio-R(Red)
Video(Yellow)
Audio-L(White)
*
The component and AV input share the same terminal.
*
The component and AV input share the same terminal.
P
R
Y(Green) P(Blue)
(Red)
Digital TV STB/VCR/Game
console/Camcorder/DVD
Player/PC
Digital TV STB/VCR/
Game console/
Camcorder/DVD Player
Audio-L（White）
Audio-R
（Red）
You can connect many types of external equipment to your TV, like a VCR, Digital TV Set Top Box (STB), game
console, camcorder, DVD player and PC. To view external source images,
select the input
source of remote
and then press OK.control or the TV icon on the smart home
R– AUDIO – L
YP
B
PR
To Next Page
