14

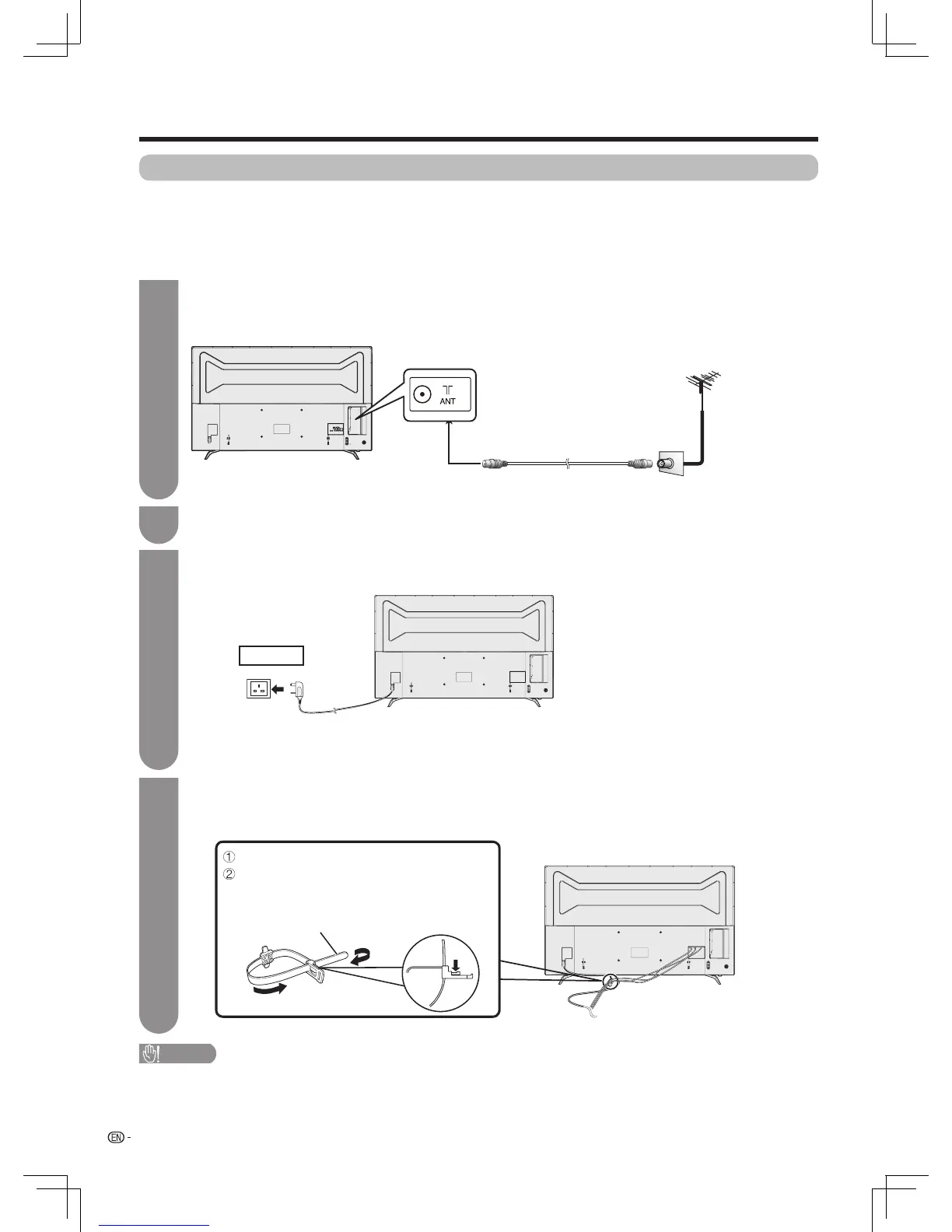

Preparation
1
Before turning on the power
Notes on installing the TV
• Avoid direct sunlight and place the TV in a well-ventilated location.
• Place the TV in a level location.
• Do not turn on the power of the TV before connecting the AC cord.
• If there are any protective plastic sheets on the TV cabinet, please take them off before connecting.
Plug the AC cord into the AC outlet.
• Place the TV close to the AC outlet, and keep the power plug within reach.
• Disconnect the AC cord from the AC outlet if the TV will not be used for a long period of time.
Connecting the antenna cable
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of
connections that are used for coaxial cable.
Connecting external devices
See page 15 and 16 for connecting external equipment, such as a VCR and DVD player.
2
3
4
CAUTION
•
To prevent risk of electric shock , do not touch un-insulated parts of any cables with the AC cord connected.
Bundling the cables
As the picture illustrated, insert the cable clip into the hole on the TV, and put the cable into the cable clip
for banding.
Fix AC cord and other wires with cable clip.
Pull the band through the hole to adjust the degree
of tightness.
If the band is too long,
pull it through the other hole.
To loosen the cable
clip, press the
button.
Standard
DIN45325 plug
(IEC169-2)
75-ohm coaxial
cable (round cable)
Room antenna terminal
(75-ohm type)
Antenna cable
(commercially available)
To antenna terminal
TV (rear view)
AC cord
AC outlet
To Next Page
