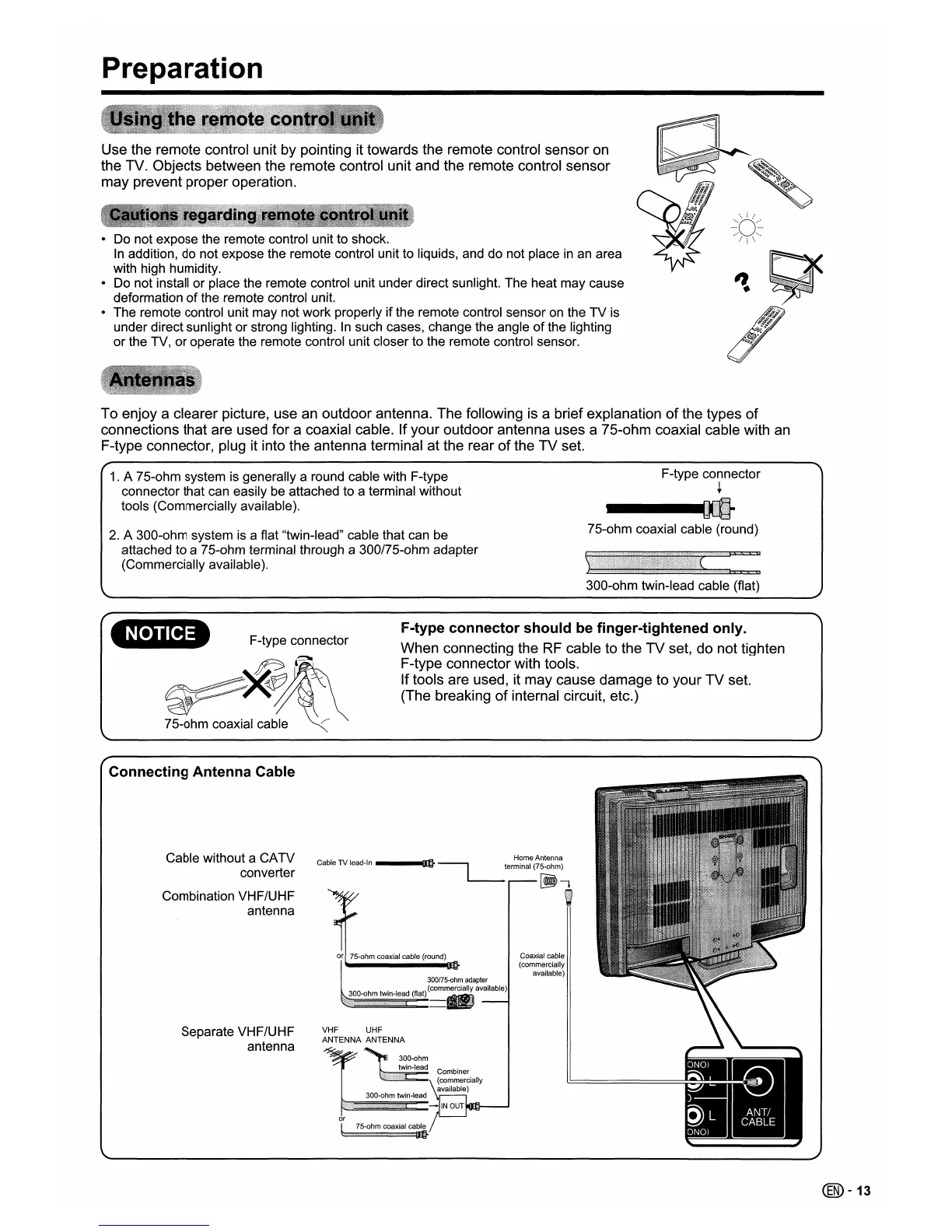

Preparation
Use the remote control unit by pointing it towards the remote control sensor
on
the TV. Objects between the remote control unit and the remote control sensor
may prevent proper operation.
• Do not expose the remote control unit to shock.
In
addition, do not expose the remote control unit to liquids, and do not place
in
an area
with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause
deformation
of
the remote control unit.
• The remote control unit may not work properly if the remote control sensor
on
the TV is
under direct sunlight or strong lighting.
In
such cases, change the angle
of
the lighting
or the TV, or operate the remote control unit closer to the remote control sensor.
To enjoy a clearer picture, use an outdoor antenna. The following
is
a brief explanation
of
the types
of
connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with
an
F-type connector, plug it into the antenna terminal at the rear
of
the TV set.
1.
A 75-ohm system is generally a round cable with F-type
connector that can easily be attached to a terminal without
tools (Commercially available).
2.
A 300-ohm system
is
a flat "twin-lead" cable that can be
attached to a 75-ohm terminal through a 300/75-ohm adapter
(Commercially available).
F-type connector
+
---.
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
NOTICE
F-type connector
~l~
~~~
-
75-ohm coaxial cable
~
F-type
connector
should
be finger-tightened only.
When connecting the
RF
cable to the TV set, do not tighten
F-type connector with tools.
If tools are used, it may cause damage to your TV set.
(The breaking
of
internal circuit, etc.)
Coaxial cable
(commercially
available)
300/75-ohm
adapter
_iiEiiE~=(f1a~t)
(com.
available)
Combiner
~
commerciallY
available)
300-ohm twin-lead
.1111111~==-
IN
OUT
or /
t 75-ohm coaxial
ca;.
VHF UHF
ANTENNA ANTENNA
Cable
TV
lead-In
__
.-JnmrFl
Home Antenna
blit
----,
terminal (75-ohm)
l--
~~
,
Separate VHF/UHF
antenna
Cable without a CATV
converter
Combination VHF/UHF
antenna
Connecting
Antenna
Cable
@-13
