Sharp AQUOS LC-32Z33H - Connecting external devices

10
Preparation
CAUTION
• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital
TV Decoder (Set Top Box), PC or other external equipment.
• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.

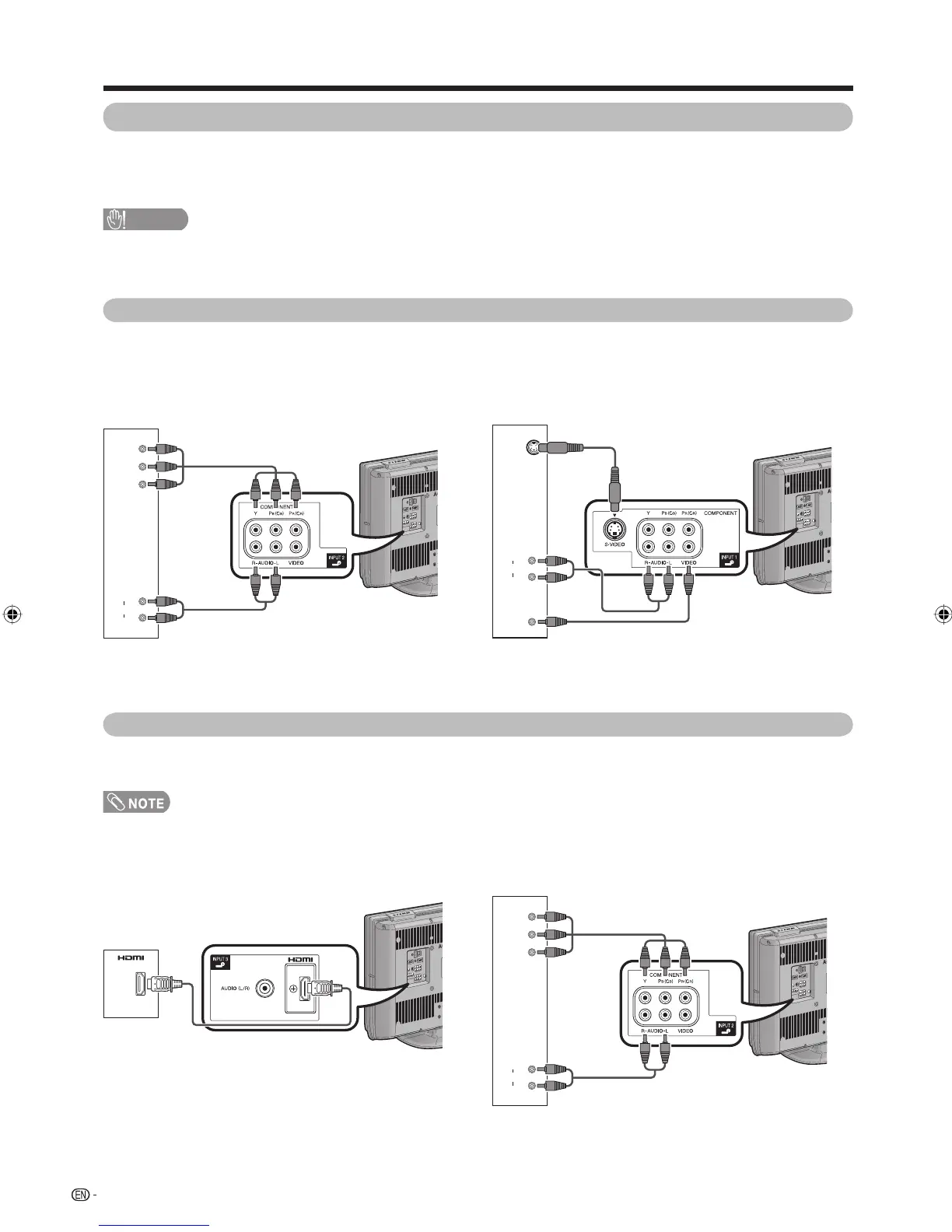

Connecting a VCR, game console or camcorder
A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using
the INPUT 1/INPUT 2 terminals.
Connecting a DVD player
You can use the INPUT 1/INPUT 2, INPUT 3/INPUT 4 (HDMI) terminals when connecting to a DVD player and
other audiovisual equipment.
When using HDMI-certifi ed cable
(commercially available)
When using component cable
(commercially available)
• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 3. (See page 36.)
AUDIO
R
L
Y
P
B
(CB)
P
R
(CR)
When using component cable
(commercially available)
AUDIO
R
L
Y
P
B
(CB)
P
R
(CR)
Connecting external devices
You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD
player, Digital TV Decoder (Set Top Box) and PC. To view external source images, select the input source from
TV/VIDEO on the remote control unit or TV/VIDEO on the TV.
When using composite cable or
S-VIDEO cable (commercially available)
VCR/
Game console/
Camcorder
AUDIO
R
L
VIDEO
S-VIDEO
DVD player
VCR/
Game console/
Camcorder
DVD player
or
