Preparation
How to make a simple platform (For LC-70UA50H only)
To make such a simple platform, you need to use the packing box and the four foam blocks inside it: TOP-L,
TOP-C and TOP-R .
3
1

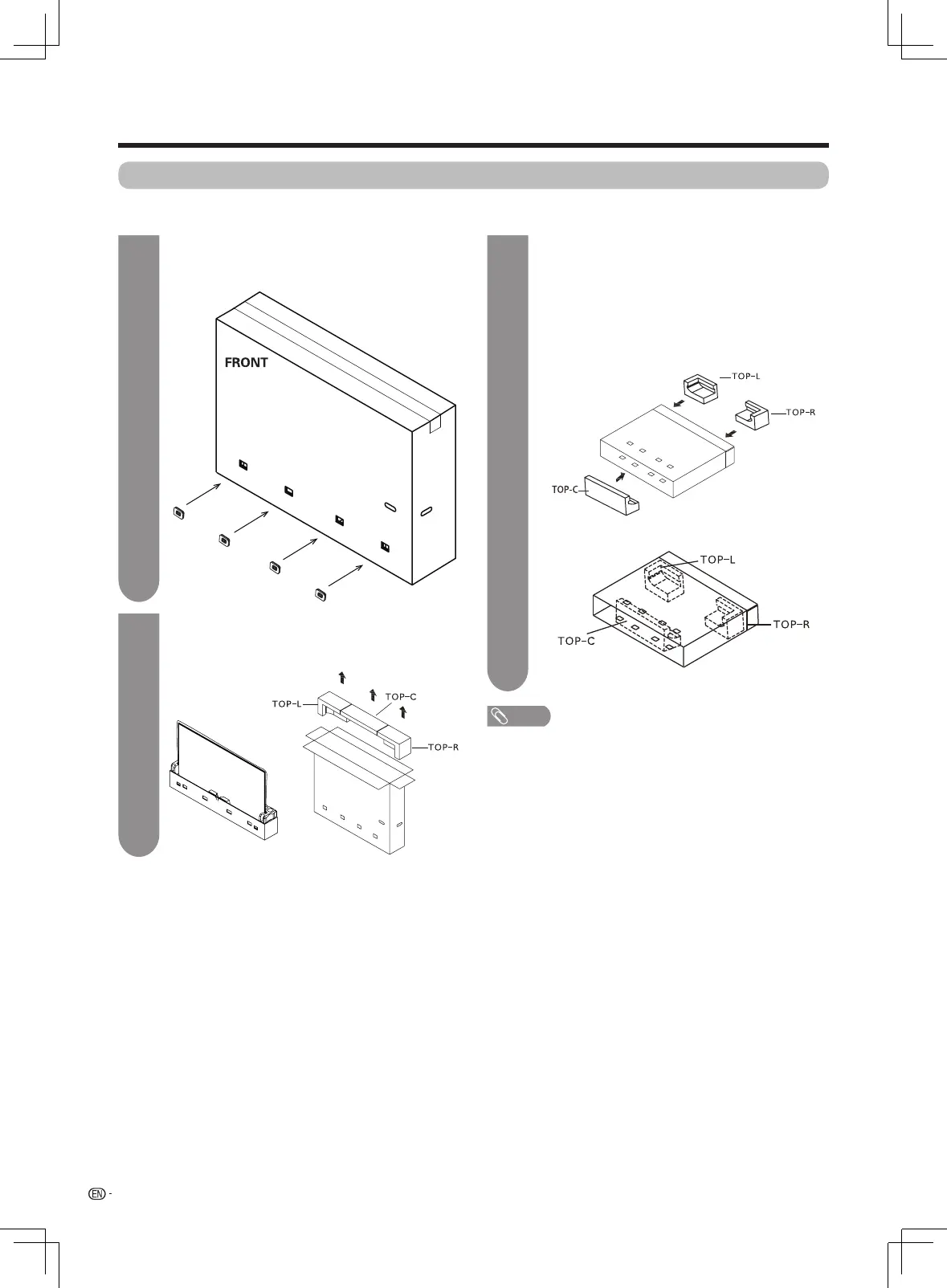

As shown in the following figure, remove the
plastic lock at the bottom of packing box.
2
As shown in the following figure, remove the
three foam blocks TOP-L, TOP-C and TOP-R
on the top.
1 As shown in Figure A, place it face down.
2 Attach the foam blocks TOP-L and TOP-R onto
the right side and left side of the packing box
respectively
( as shown in Figure B ).
3
Insert the foam blocks TOP-C into the packing
box ( as shown in Figure B ). Now, a simple
platform is ready.
NOTE
• Put
the platform on the flat floor after you have made it.
•
When installing the stand, you need to put the TV face
down on the simple platform. Before that, put a shock pad
on the platform to protect the screen.
•
The simple platform is just for temporary use. Do not apply
any load exceeding the weight of the LCD TV onto this
platform.
Figure A
Figure B
FRONT
