AR-1118 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-1
[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES
1. Appearance
2. Internal

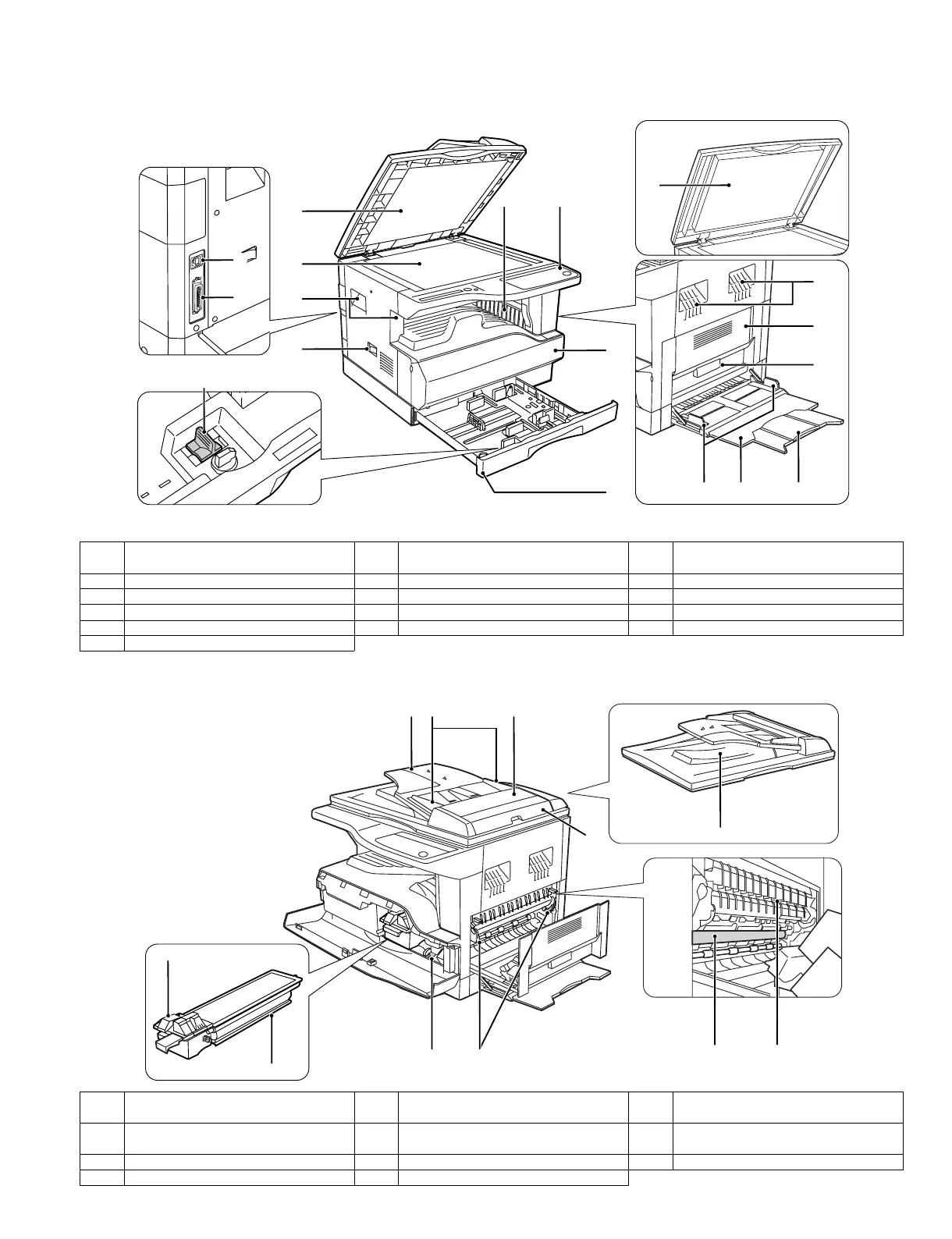

1 Document feeder cover (when the SPF
is installed) /document cover
2 Document glass 3 Handles
4 Power switch 5 Operation panel 6 Paper output tray
7 Front cover 8 Paper trays 9 Side cover
10 Side cover handle 11 Bypass tray guides 12 Bypass tray
13 Bypass tray extension 14 Charger cleaner 15 USB 1.1 connector
16 Parallel connector
17 Document feeder tray
(when the SPF is installed)
18 Original guides
(when the SPF is installed)
19 Feeding roller cover
(when the SPF is installed)
20 Right side cover
(when the SPF is installed)
21 Exit area
(when the SPF is installed)
22 Toner cartridge lock release lever
23 Toner cartridge 24 Roller rotating knob 25 Fusing unit release levers
26 Photoconductive drum 27 Fusing unit paper guide
1
1
3
9
10
131211
6 5
2
3
7
4
16
14
15
8
1917
22
23
21
20
24 25
18
2726
