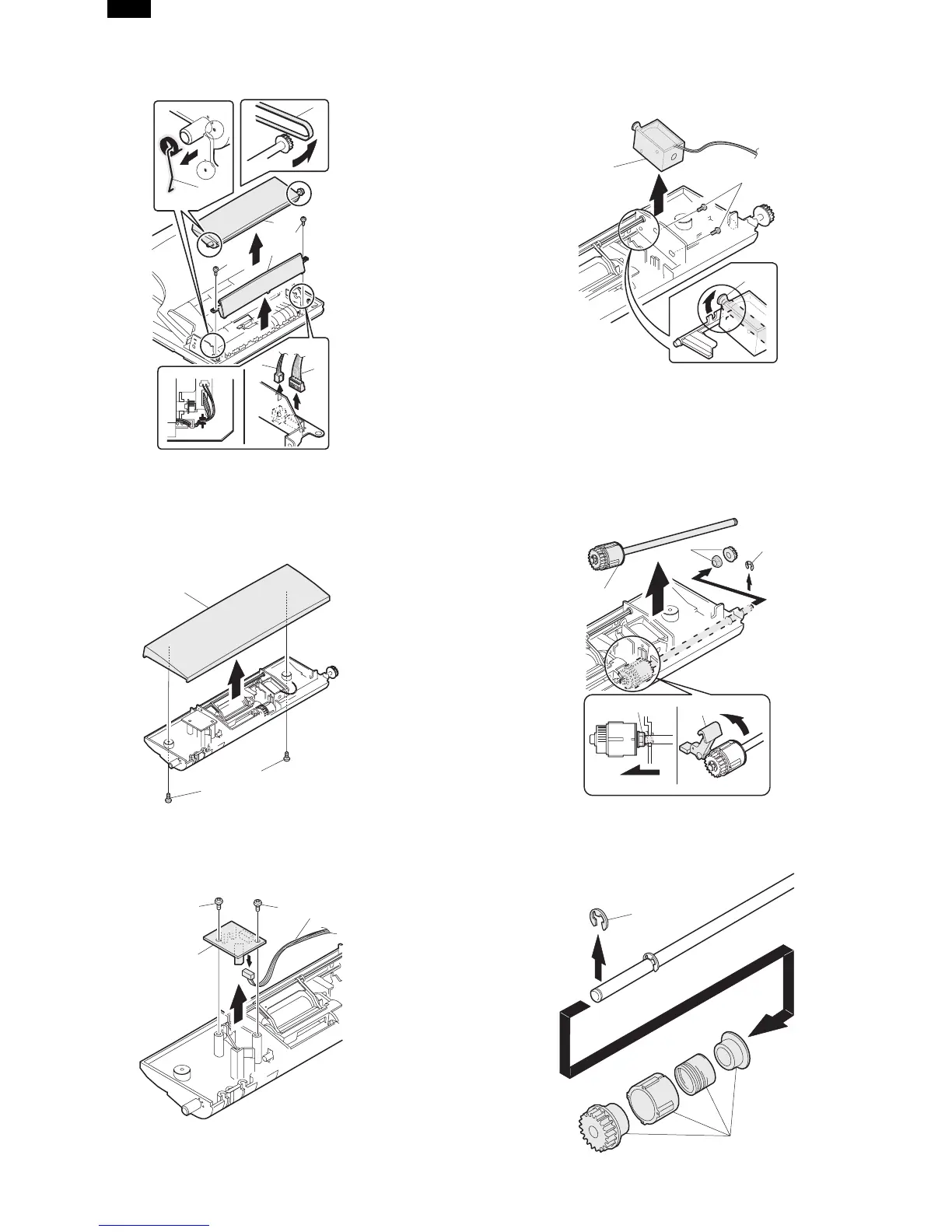

1) Remove the belt, the paper feed frame SP, and two harnesses.
2) Remove the pickup unit.
∗ When installing the parts, be careful of the hole position of the paper
frame SP.
A. Sensor PWB
1) Remove two screws from the bottom of the pickup unit.
2) Remove the upper cover.
1) Remove two screws.
2) Remove the sensor PWB.
3) Remove the harness.
B. Pickup solenoid
1) Remove two screws.
2) Remove the pickup solenoid
∗ When installing, hang iron core A on the solenoid arm.
C. Clutch
1) Remove the E-ring.
2) Remove the pulley and bushing.
3) Slide the bushing in the arrow direction.
4) Lift the clutch, and 5) remove the clutch.
1) Remove the E-ring.
2) Remove the parts.
1
1
3
4
3
2
1
1
2
1
1
1
1
2
3
1
2
A
1
5
2
4
3
1
2
AR-F152
7 – 19
