AYXP9LSR
5 – 2

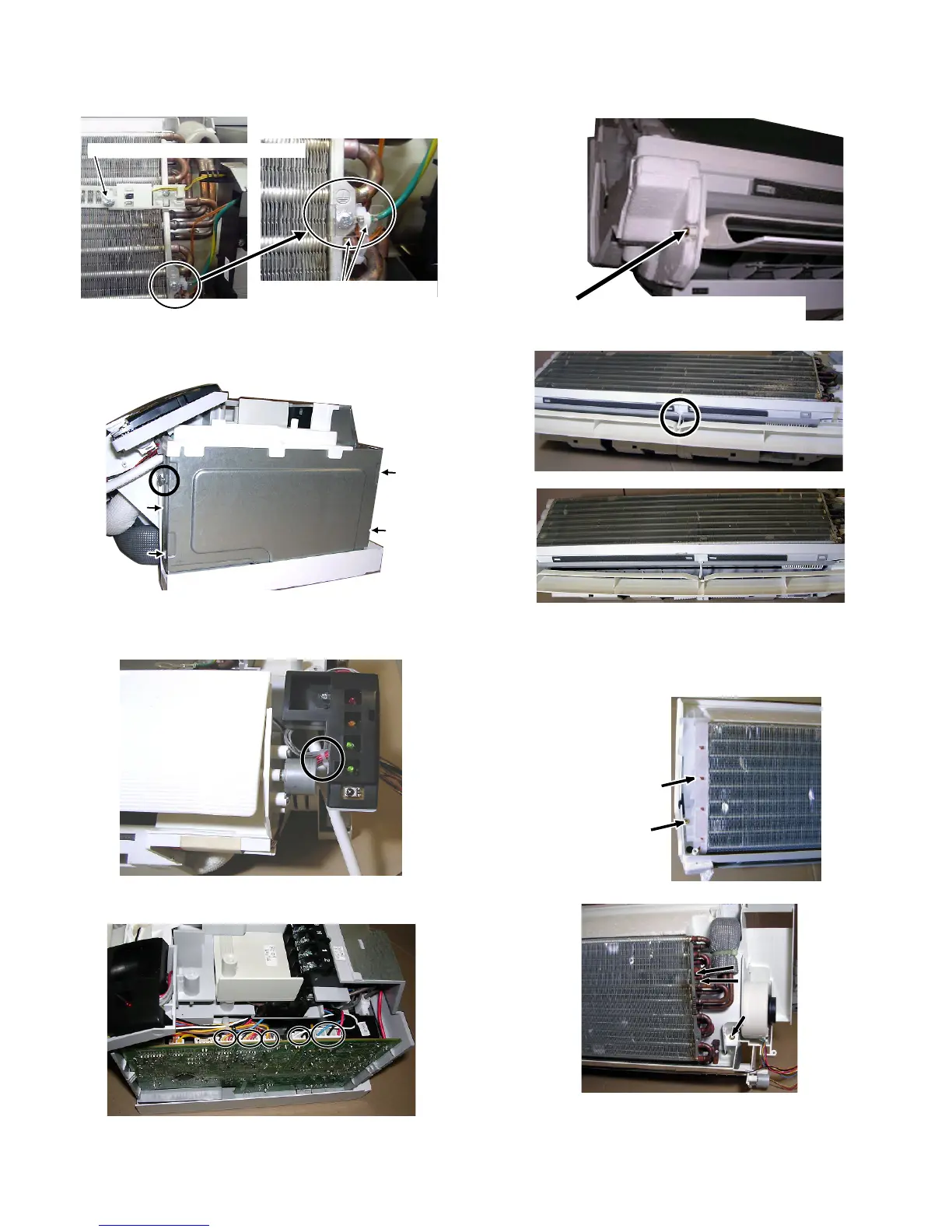

8) Remove the thermistor cover and the thermistor wire.
Remove a screw fixing the earth wire.
9) Unhook the A side of the control box cover from the control box and
then unhook the B side in order to pull it away.
10)Remove the screw C fixing the control box and cut the wire fixing
band.
11)Remove the 5 connectors and remove the control box.
12)Remove the center shaft of the horizontal louver from louver holder
with lifting the louver holder, and remove the horizontal louver from
cabinet while warping.
13)
a) Remove the 3 screws fixing the side cover L and side cover R.
Take off the catch of side cover R.
To Next Page
