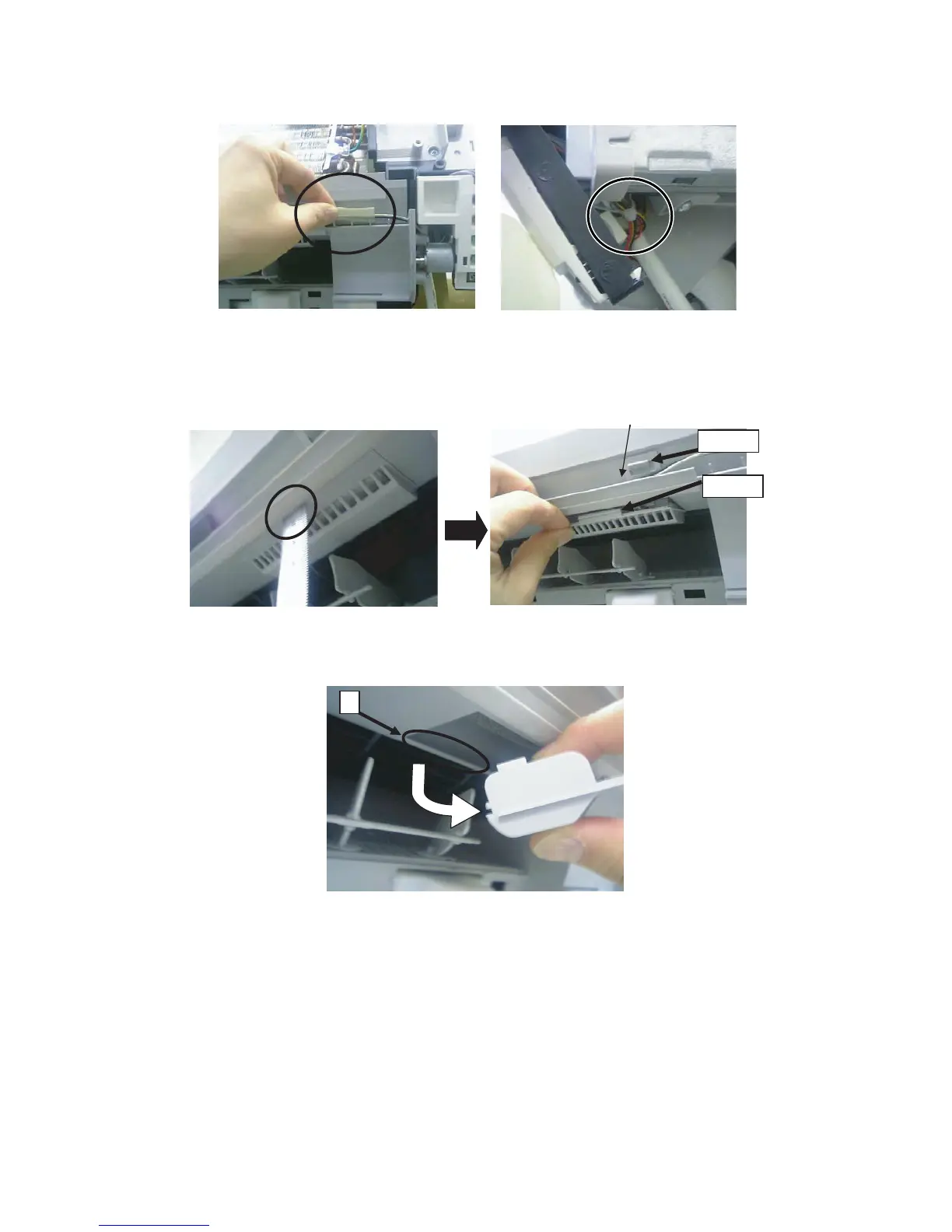

[2] HOW TO REMOVE PLASMACLUSTER UNIT(For the models with PLASMACLUSTER)
1) Take the tape off and cut the fixing band
2) Insert the thin board to center of gap and remove the hook of holder.
Remove plasmacluster unit while being careful not to damage the lead wires.
3) When assemble the plasmacluster unit,
insert part A to holder part indicated by big arrow.
HOOK
HOOK B
HOOK
HOOK B
HOOK
HOOK B
Get the lead wires through
the left side of HOOK B
A
