AYXP9LSR
5 – 3

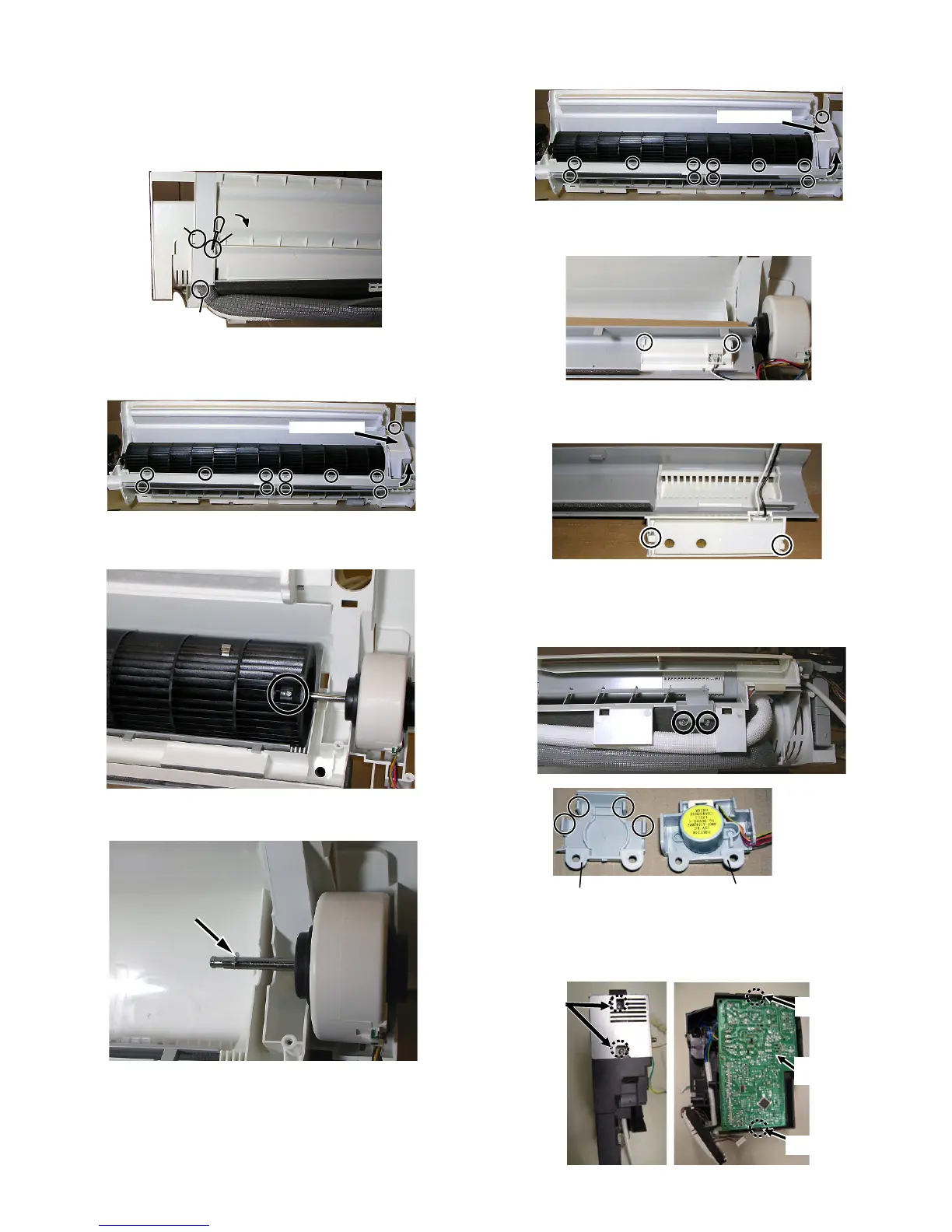

b) Remove the tube cover.
• Insert the (–) screwdriver to A hole and then lean it to the
right as lifting B part.
c) Remove the evaporator from the cabinet.
• Take off the catch of the tube cover from the plate and move
the evaporator upward.
14)Lift the bottom part of the side cover R and remove the side cover
R.
15)Loosen the screw of cross flow fan and separate the cross flow fan
and the fan motor.
When assembling them, insert the motor shaft in the boss of the
cross flow fan to the ring position.
16)Take off the catch of guide R from cabinet and remove the guide.
17)Remove the holder ass'y from the cover while unfixing the hooks of
the cover.
18)Remove the plasmacluster unit from the holder after unfixing its
hooks
19)For the models with the auto horizontal adjustment function.
Remove the 2 screws and take out the louver motor V assemblies.
• Remove the louver motor cover after taking off the catches of it.
20)Remove 2 screws fixing on the rear side of control box.
Remove the control board unit from the control box while unfixing 2
hooks.
To Next Page
