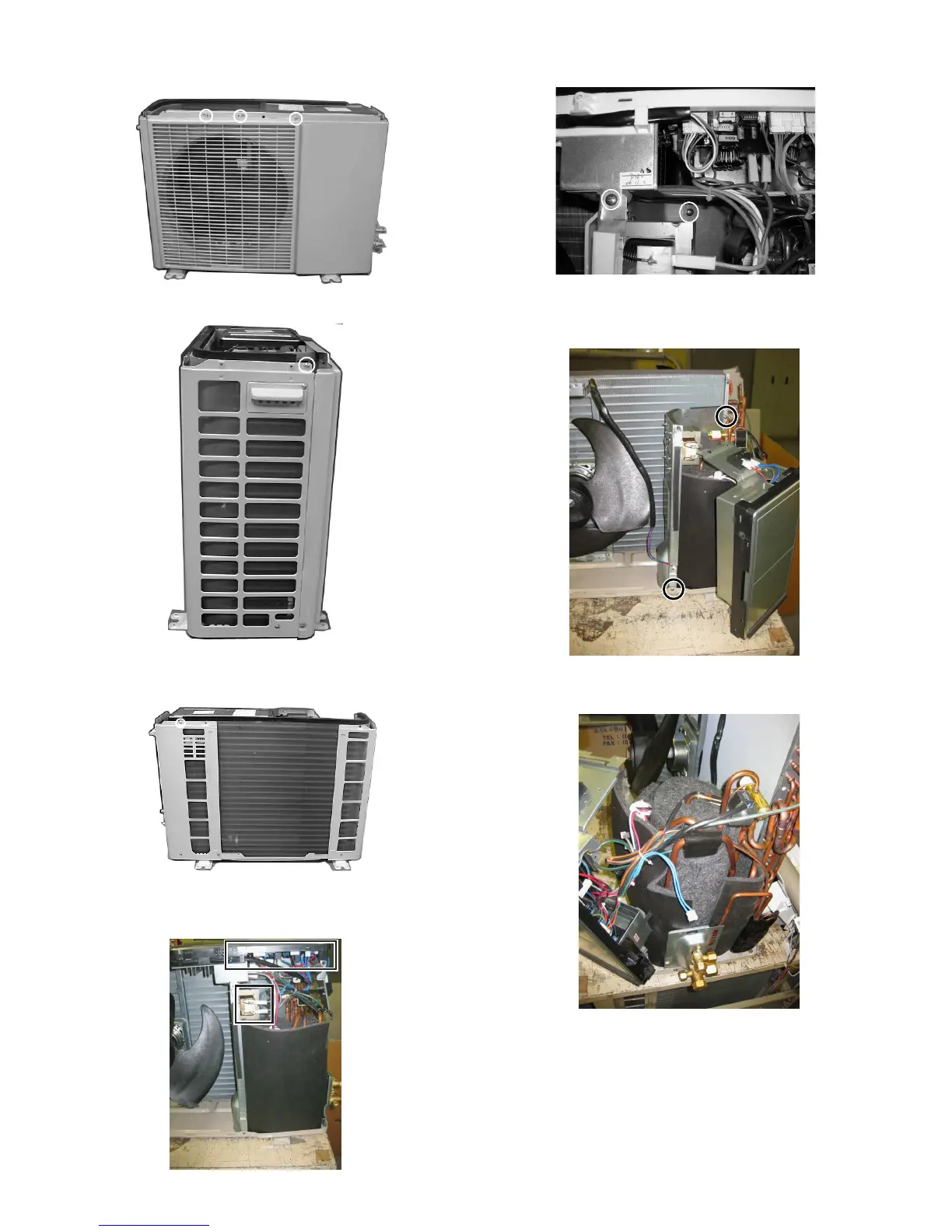

7) Remove the 3 screws. [motor angle(2), control box(1)]
Remove the front panel.
8) Remove a screw fixing the condenser.
9) Remove a screw fixing the side cover R .
Remove the side cover R and the side cover L.
10)Disconnect the connectors.
(Thermistor,fan,expansion valve and reactor connector)
11)Remove the 2 screws fixing control box.
12)Remove two screws fixing bulkhead ass’y.
and remove bulkhead ass’y
13)Remove compressor covers.
