AYXP9LSR
5 – 7

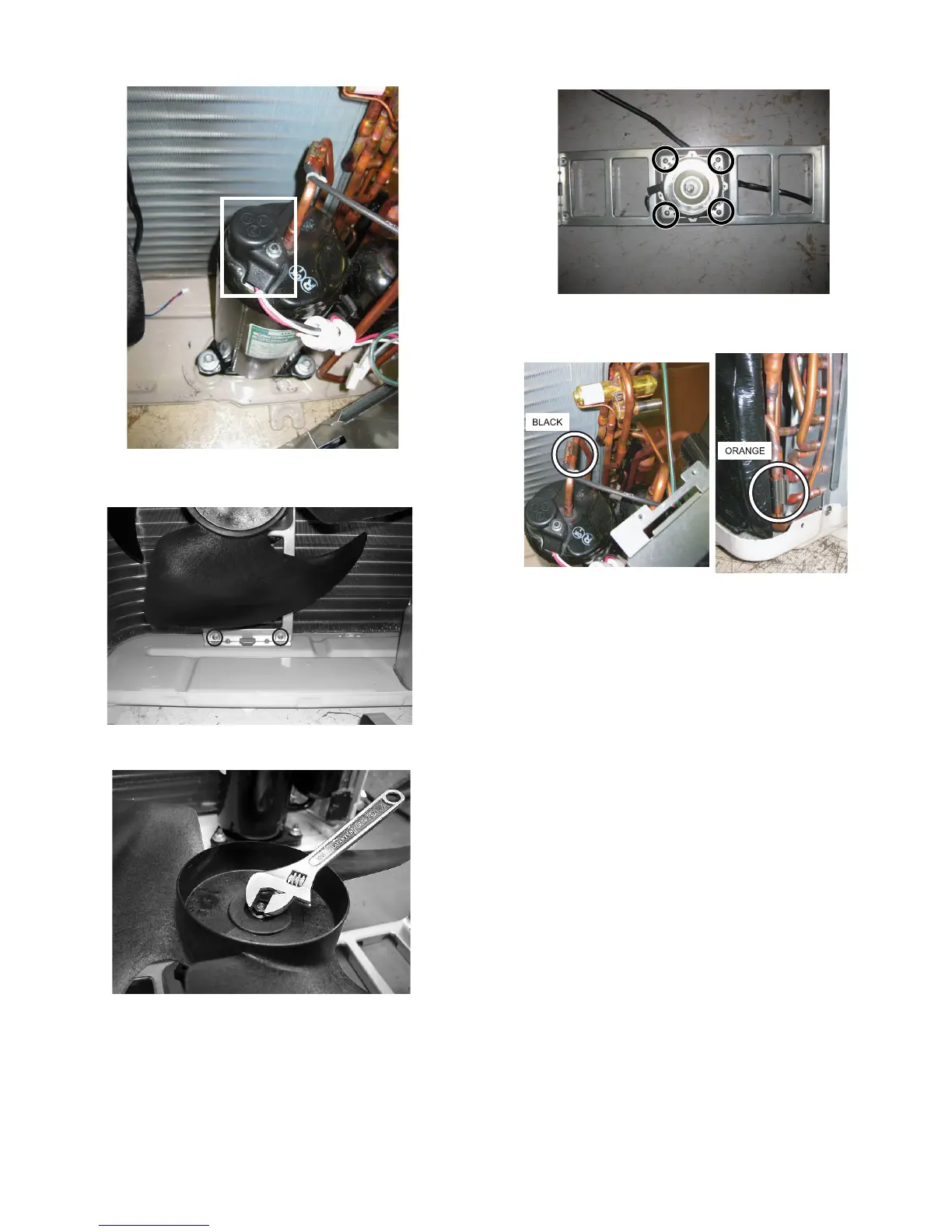

14)Remove terminal cover and 3 terminals of compressor.
15)Remove the 2 screws fixing motor angle.
16)Loosen the fan nut and fan can be taken off.
17)Remove 4 screws.
18)Thermistor position.
