Speaker connection
Front speakers
Connect each speaker wire to the FRONT SPEAKER termi-
nals as shown.
Use speakers with an impedance of 8 ohms or more, as
lower impedance speakers can damage the unit.
Connect the black wire to the minus (-) terminal, and the
red wire to the plus (+) terminal.
Surround speakers
Connect each speaker wire to the SURROUND SPEAKER
terminals as shown.
Use speakers with an impedance of 16 ohms or more, as
lower impedance speakers can damage the unit.
Connect the wire with the white line to the minus (-) ter-
minal and the plain wire to the plus (+) terminal.
Caution:
Do not mistake the right channel for the left channel
when connecting the speakers to the unit. The right
speaker is the one on the right side when you are facing
the front of the unit.
Do not let bare speaker wires touch each other as this
may damage the amplifier and/or speakers.
Do not allow any objects to fall into or to be placed in the
bass reflex ducts.
Do not stand or sit on the speakers. If the speakers fall or
collapse, you may be injured.

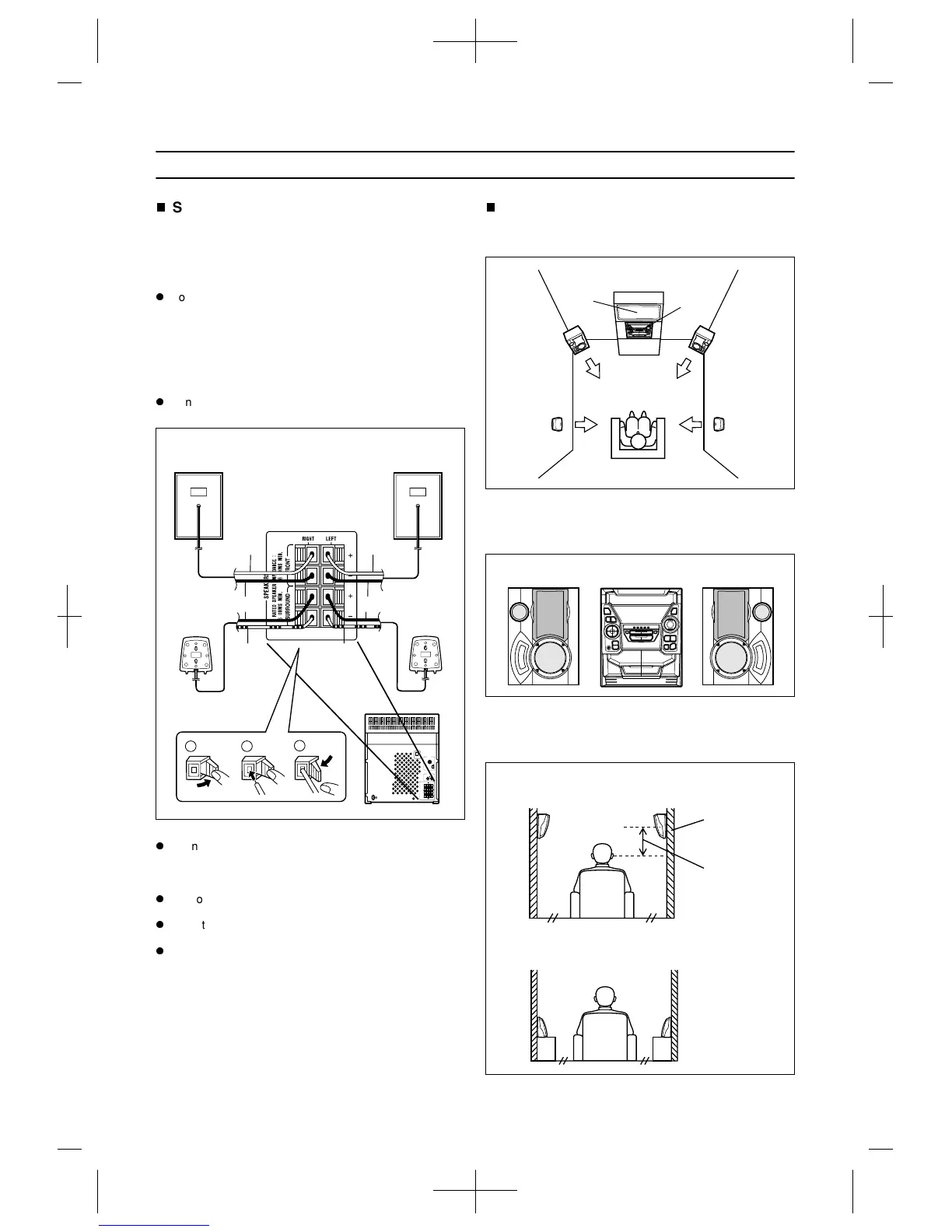

Placing the speaker system
To enjoy the surround effect, we recommend that you place
each speaker as shown below.
Placing the front speakers:
The left and right speakers have individual shapes. For best
performance, place the speakers according to the diagram
below.
Installation of the surround speakers:
If possible, mount the surround speakers on the wall. Install
them 60 - 90 cm (23" - 35") above the height of your ears
when you are seated.
2
1
3
Front speaker
(Left)
Surround
speaker
(Left)
Surround
speaker
(Right)
Front speaker
(Right)
Red
Black
With
white
line
With
white
line
Black
Red
Left speaker Right speaker
Example: When installed on the wall
Example: When installed vertically
TV
Main
unit
Front
speaker
(Left)
Surround
speaker
(Left)
Surround
speaker
(Right)
Front
speaker
(Right)
Wall
60 - 90 cm
(23" - 35")
