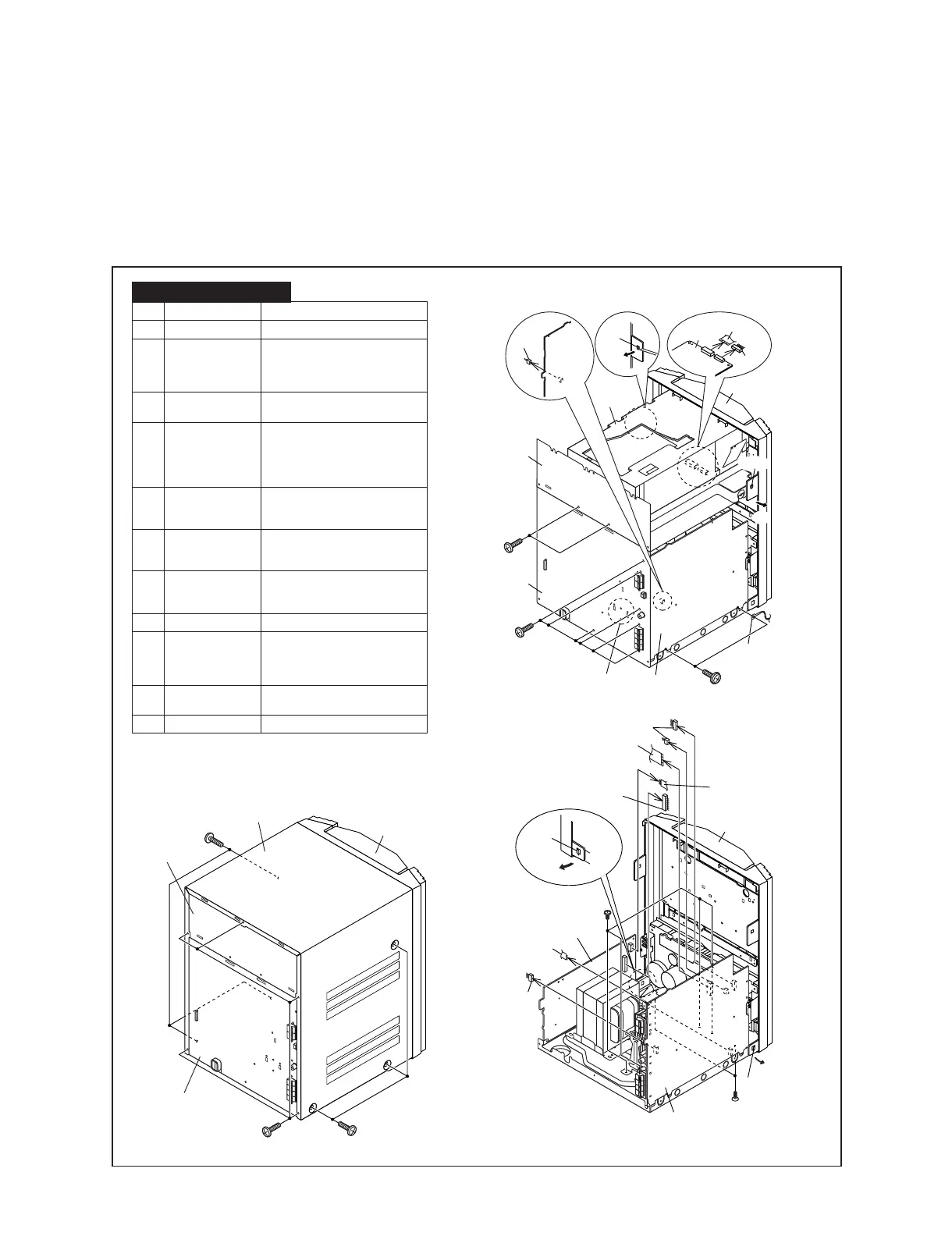

CHAPTER 3. MECHANISM BLOCKS
[1] Caution on disassembly
Caution on Disassembly
Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing the unit, be sure to rearrange
the leads where they were before disassembling.
1 Top/Side Cabinet 1. Screw .................... (A1) x11
2 Rear Panel, B/ 1. Screw ...................... (B1) x2
Changer Mechanism
Unit
2. Hook ........................ (B2) x2
(B3) x1
4. Socket ..................... (B4) x1
3 Rear Panel, A with 1. Screw ...................... (C1) x6
Fan Motor 2. Socket ..................... (C2) x1
4 Main PWB 1. Screw ...................... (D1) x2
2. Flat Cable ...............
3. Flat Cable ...............
(D2) x1
3. Socket ..................... (D3) x4
4. Flat Wire .................. (D4) x1
5. Screw ...................... (D5) x4
5 Front Panel 1. Screw ...................... (E1) x2
2. Flat Wire .................. (E2) x1
3. Hook ........................ (E3) x2
6 Tape Mechanism 1. Open the cassette holder.
2. Screw .......................(F1) x6
3. Flat Cable ................ (F2) x1
7 Display PWB 1. Knob ........................ (G1) x1
2. Screw .................... (G2) x10
8 Game Input PWB 1. Screw....................... (H1) x2
9 CD Servo PWB 1. Screw ....................... (J1) x3
2. Flat Cable ................ (J2) x2
3. Socket ...................... (J3) x1
4. Hook ......................... (J4) x1
3. Hook ........................ (G3) x5
10 Changer 1. Screw ...................... (K1) x4
Mechanism Unit 2. Changer Chassis .... (K2) x1
11 CD Mechanism 1. Screw ....................... (L1) x4
STEP
REMOVAL PROCEDURE
CD-ES900/CD-ES99
Note 1:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of the connector so as to protect the optical
pickup from electrostatic damage.
Top/Side Cabinet
Front Panel
(A1)x5
φ3x10mm
(A1)x3
φ3x10mm
(A1)x3
φ3x10mm
Rear Panel, A
Rear Panel, B
Front Panel
Main PWB
Main PWB
Lug Wire
Fan Motor
Pull
Pull
CD Servo
PWB
(D1)x2
φ3x10mm
(B1)x2
φ3x10mm
(C1)x6
φ3x10mm
(C2)x1
(B2)x1
(B2)x1
(B3)x1
(B4)x1
Changer
Mechanism
Unit
Rear
Panel, A
Rear
Panel, B
(D5)x4
φ3x6mm
Front Panel
Main PWB
Power PWB
(E1)x2
φ3x8mm
(D3)x1
(D4)x1
(D3)x1
(E2)x1
(D3)x2
(E3)x1
(E3)x1
(D2)x1
