Preparation for Use
System connections (continued)

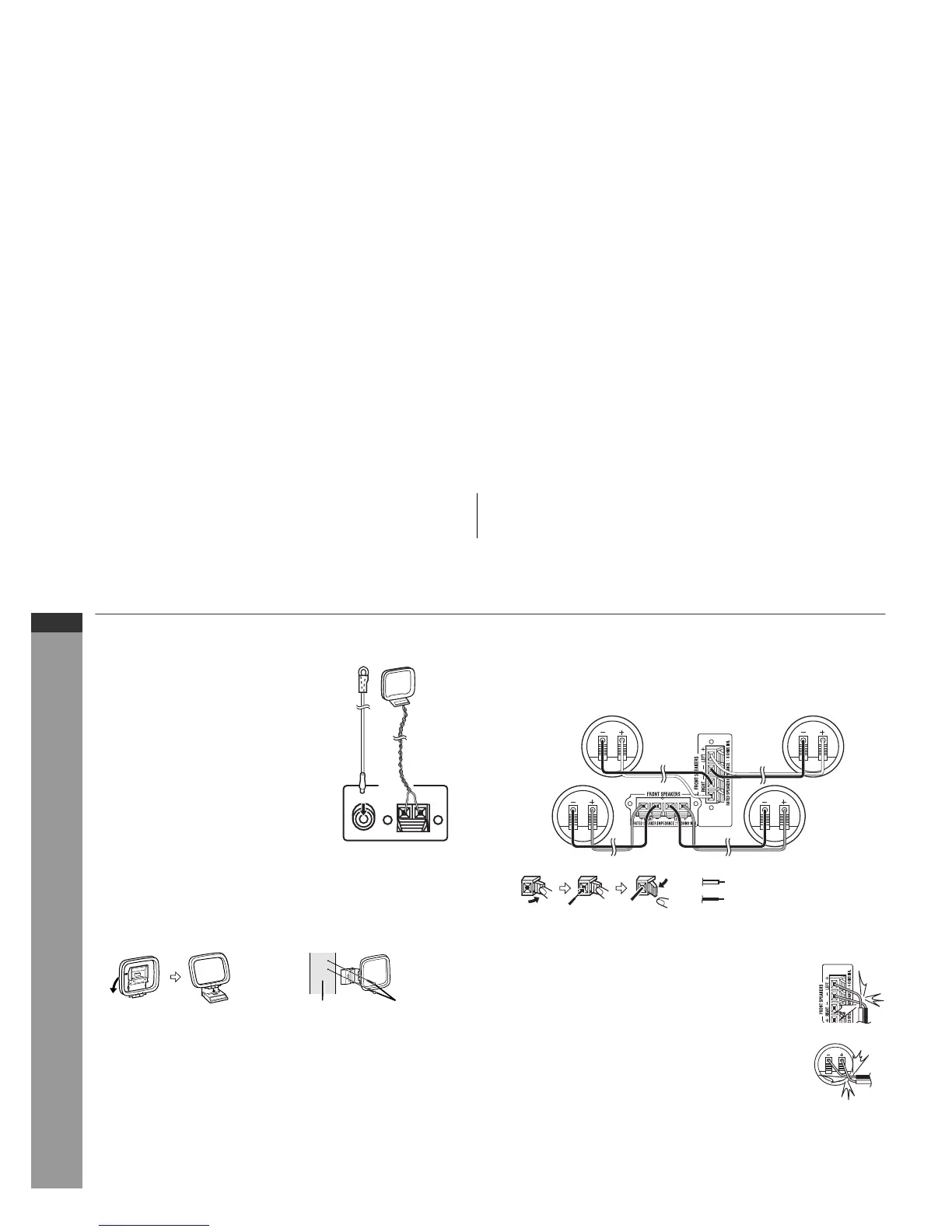

Aerial connection
Note:
Placing the aerial on the unit or near the AC power lead may cause
noise pickup. Place the aerial away from the unit for better reception.
Installing the AM loop aerial:
Speaker connection
Front speakers:
Connect the black wire to the FRONT SPEAKERS (–) terminal, and
the red wire to the FRONT SPEAKERS (+) terminal.
Caution:
Supplied FM aerial:
Connect the FM aerial wire to the FM
75 OHMS socket and position the FM
aerial wire in the direction where the
strongest signal can be received.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM
and GND terminals. Position the AM
loop aerial for optimum reception.
Place the AM loop aerial on
a shelf,
etc., or attach it to a stand or a wall with
screws (not supplied).
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
ANTENNA
FM
75 OHMS
AM
GND
AM loop
aerial
FM
aerial
Connect the speaker wires to the speakers first, then to the unit.
If you use other speakers with impedance lower
than that specified, the unit may be damaged.
Front speakers: 6 ohms (CP-G14000) and 12 ohms
(CP-G17000 and CP-G22000)
Do not mistake the right and the left channels. The
right speaker is the one on the right side when you
face the unit.
Do not let the bare speaker wires touch each other.
Do not allow any objects to fall into or to be placed
in the bass reflex ducts.
Do not stand or sit on the speakers. You may be
injured.
Black
Red
Front speaker (right)
Front speaker (right) Front speaker (left)
Front speaker (left)
Incorrect
Incorrect
