Preparation for Use
System connections (continued)

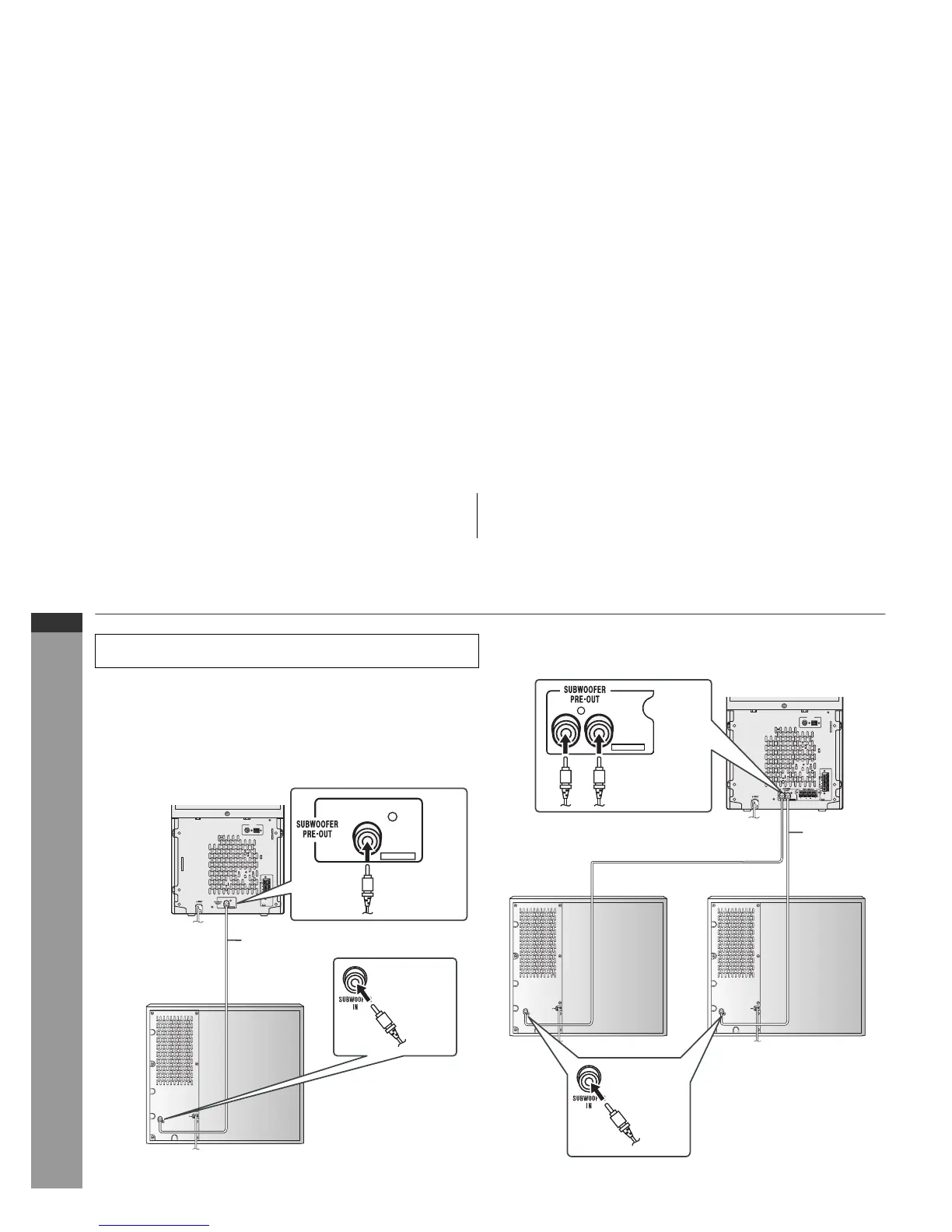

 Connecting the subwoofer
Use the subwoofer cable to connect the SUBWOOFER PRE-OUT
socket on the main unit and the SUBWOOFER IN socket on the
active subwoofer.
Make sure to unplug the AC power lead of the main unit before
making any connections.
75 OHMS
FM
GND
AM
ANTENNA
RATED SPEAKER IMPEDANCE : 6 OHMS MIN.
Main unit
Subwoofer cable
(For CD-G14000 and CD-G17000)
Active subwoofer
To subwoofer
output socket
To subwoofer
input socket
75 OHMS
FM
GND
AM
ANTENNA
RATED SPEAKER IMPEDANCE : 12 OHMS MIN.
RATED SPEAKER IMPEDANCE : 12 OHMS MIN.
RIGHT
LEFT
Subwoofer
cable
Active subwoofers
To subwoofer
output sockets
To subwoofer
input sockets
(For CD-G22000)
