– 11 –
CD-K7000W/C7000W,CP-C7000

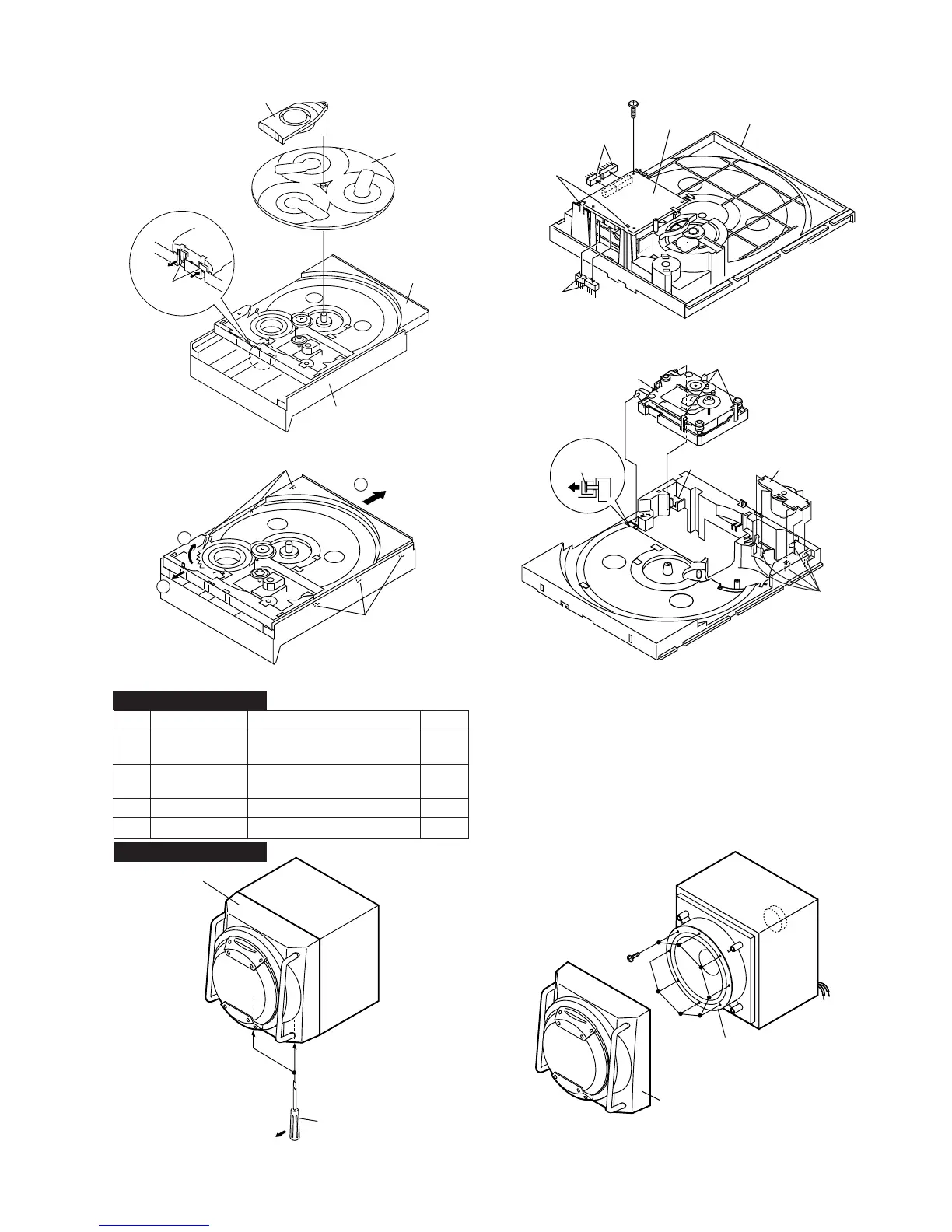

Figure 11-1
Turntable
Disc Tray
(N2) x1
CD Player Unit
(N1) x2
1
3
2
(P1) x3
(P1) x3
Figure 11-2
(Q3) x2
(Q2) x2
(Q3) x2
CD Servo
PWB
CD Player
Base
(Q1)x1
ø3x8mm
Figure 11-3
(R2) x3
(R1) x1
(S1) x5
(R1) x1
Loading
Motor
PWB
CD
Mechanism
CP-C7000
1 Woofer 1. Front Panel ............ (A1) x1 11-5
2. Screw ..................... (A2) x8 11-6
2 Tweeter 1. Front Panel ............ (B1) x1 12-1
2. Screw ..................... (B2) x4 12-2
3 Mid Range 1. Screw .................... (C1) x4 12-2
4 Super Tweeter 1. Screw .................... (D1) x2 12-2
STEP REMOVAL
PROCEDURE
FIGURE
Figure 11-4
CP-C7000
Figure 11-5 Figure 11-6
Driver should
be pried away
from Speaker Box.
Screw
Driver
(A1) x 1
(A2) x8
ø4x16mm
Woofer
Front
Panel
Caution:
The metallic handles on the both sides of the speaker grill on
the main speaker are decorations.
Do not carry the speakers by them as this may damage the
speakers.
To Next Page
