REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 7 and 11 of the disassembly method to
remove the tape mechanism.

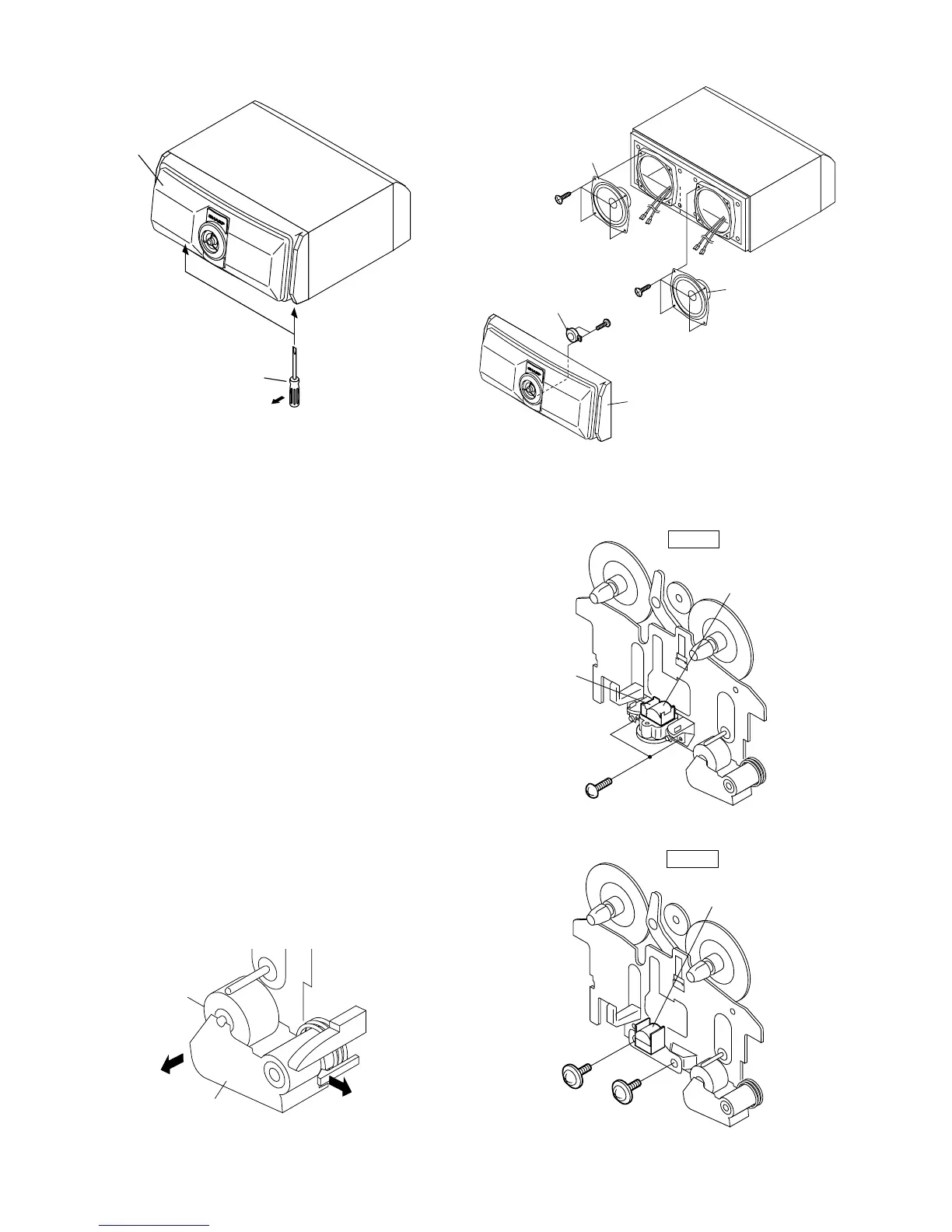

Figure 12-3
Figure 12-4
Figure 12-1
Figure 12-2
Driver should
be pried away
from Speaker Box.
Screw
Driver
(B1) x 1
Super
Tweeter
(D1)x2
ø3x10mm
(B2)x4
ø4x16mm
(C1)x4
ø4x16mm
Tweeter
Front
Panel
Mid
Range
Figure 12-5
Pinch Roller
(C1)x1
<A>
STEP1
STEP2
(A1)x2
Ø2x6mm
TAPE2
Record/Playback
Head
Erase Head
(B1)x1
Ø2x9mm
(B1)x1
Ø2x5mm
TAPE1
Playback
Head
How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 12-3)
1. When you remove the screw (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removesd.
How to remove the playback head (TAPE 1)
(See Fig. 12-4)
1. When you remove the screw (B1) x 2 pcs., the playback
head.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 12-5)
1. Carefully push the inside claw to remove it. The pinch roller
pawl in the direction of the arrow <A>, and remove the pinch
roller (C1) upwards.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
