CD-K7000W/C7000W,CP-C7000

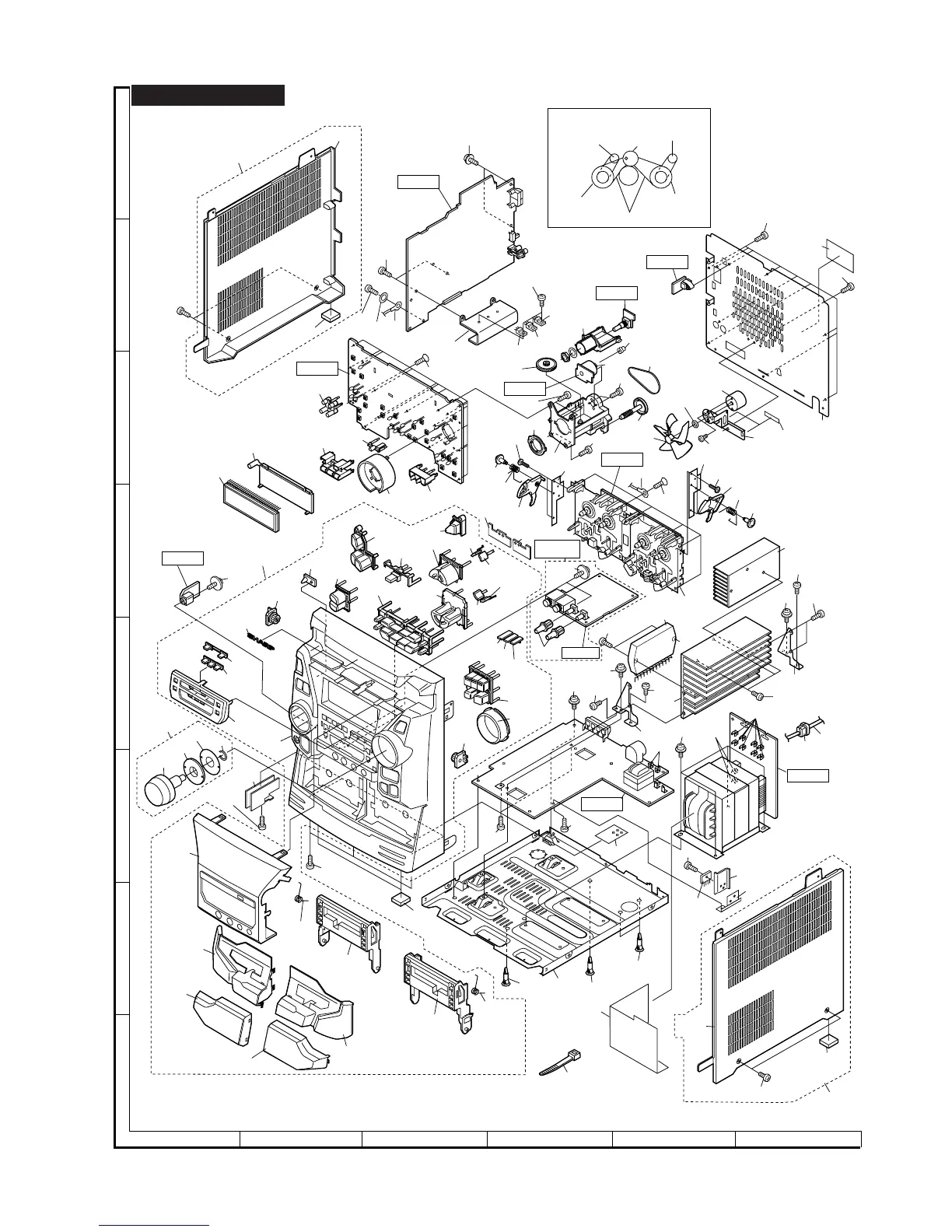

Figure 10 CABINET EXPLODED VIEW (1/2)
A
B
C
D
E
F
G
H
1
23
456
– 10 –
Note: Only tape mechanism assembly and consumable parts are supplied for replacement purposes.
CD-K7000W/C7000W
MM1
MAIN BELT
FLYWHEEL
ASS'Y
TAPE1
FLYWHEEL
ASS'Y
TAPE2
FF/REW
ROLLER
ASS'Y
FF/REW
ROLLER
ASS'Y
BELT CONNECTION
202
202-1
PWB-A1
202-2
PWB-A2
PWB-A3
270
286
Q851
Q850
Q852
PWB-E2
PWB-A4
278
M701
M901
PWB-E1
PWB-G
233
223
230
206
210
209
220
222
265
IC901
PWB-D
208
219
221
201-16
201-19
201-13
201-14
201-27
201-28
201-25
201-12
201-15
201-20
201-11
201-10
201-29
201-30
201-31
201-17
201-21
285x2
214
FL701
610x2
201-21
201-24
201
207
207-1
201-1
281x2
207-2
207-3
207-4
201-8
201-4
201-6
201-7
201-5
201-2
201-22
225x2
201-3
201-23
213
618
618
269
237
212
229
203
203-2
203-1
231x2
231x8
231x2
PWB-B1
PWB-B2
228
273
272
271
275
274
612
201-32
201-33
201-9
618x2
226
267
623
622
605x11
279
610x2
614x2
608x3
280
624x2
293
619x2
610x11
610
289
601x2
620
606x2
605x6
607
607
614
614
614
608x2
617x4
268
608x2
608x1
609x2
614
x2
611x3
611x2
610x2
276
606x2
620
201-26
621x2
619x2
277
284
282
283
291x2
290
227
D809
625
610
CD-K7000W
ONLY
292
64
66
Table of Contents
Table of Contents
1
Safety Precaution for Service Manual
2
Voltage Selection
2
Specifications
3
Front Panel
4
Names of Parts
4
Rear Panel
6
Main Speaker
6
Sub Speaker
6
Remote Control
6
AM/FM Interval
8
Preparation for Use
8
Setting the Clock
8
Resetting the Microcomputer
8
Operation Manual
8
Caution on Disassembly
9
Disassembly
9
How to Remove the Playback Head
12
Tape Mechanism Section
12
How to Remove the Record/Playback and Erase Heads
12
Removing and Reinstalling the Main Parts
12
CD Mechanism Section
13
How to Remove the Belt/Motor
13
How to Remove the Loading Motor
13
How to Remove the Pickup
13
Mechanism Section
14
Tuner Section
14
Adjustment
14
CD Section
15
CD Error Code Description
15
Items Adjusted Automatically
15
Schematic Diagram and Wiring Side of P.w.board
16
Resistor
16
Capacitor
16
Notes on Schematic Diagram
16
Block Diagram
17
Schematic Diagram / Wiring Side of P.w.board
21
Wiring Side of PW Board
32
Voltage
40
Waveforms of CD Circuit
41
When the CD Does Not Function
42
When a CD Cannot be Played
42
How to Use
42
Troubleshooting (CD Section)
42
Focus-HF System Check
43
Tracking System Check
44
Spin System Check
44
Others
45
PLL System Check
45
Block Diagram of IC
46
Function Table of IC
46
Servo/Signal Control
47
System Microcomputer
49
Audio Processor
51
MIC Amp
52
Pin Connection
54
FL Display
54
Parts Guide
55
Explanation of Capacitors/Resistors Parts Codes
55
CD Mechanism Exploded View
64
Cabinet Exploded View
65
Speaker Exploded View
67
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Sharp CD-K7000W and is the answer not in the manual?
Ask a question
