Sharp CD-MD3000H Service Manual

– 19 –
CD-MD3000H/CD-MD3000W
1 Woofer/Tweeter/ 1. Net................. (A1) x1 19-1
Sub Woofer 2. Front Panel ... (A2) x1
3. Screw ............ (A3) x4 19-2
4. Ring ............... (A4) x1
5.
Catching holder .. (A5) x2
6. Screw ............ (A6) x2
7. Cover............. (A7) x1
8. Screw ............ (A8) x2
9. Screw ............ (A9) x4 19-3
10. Cover............. (A10) x1

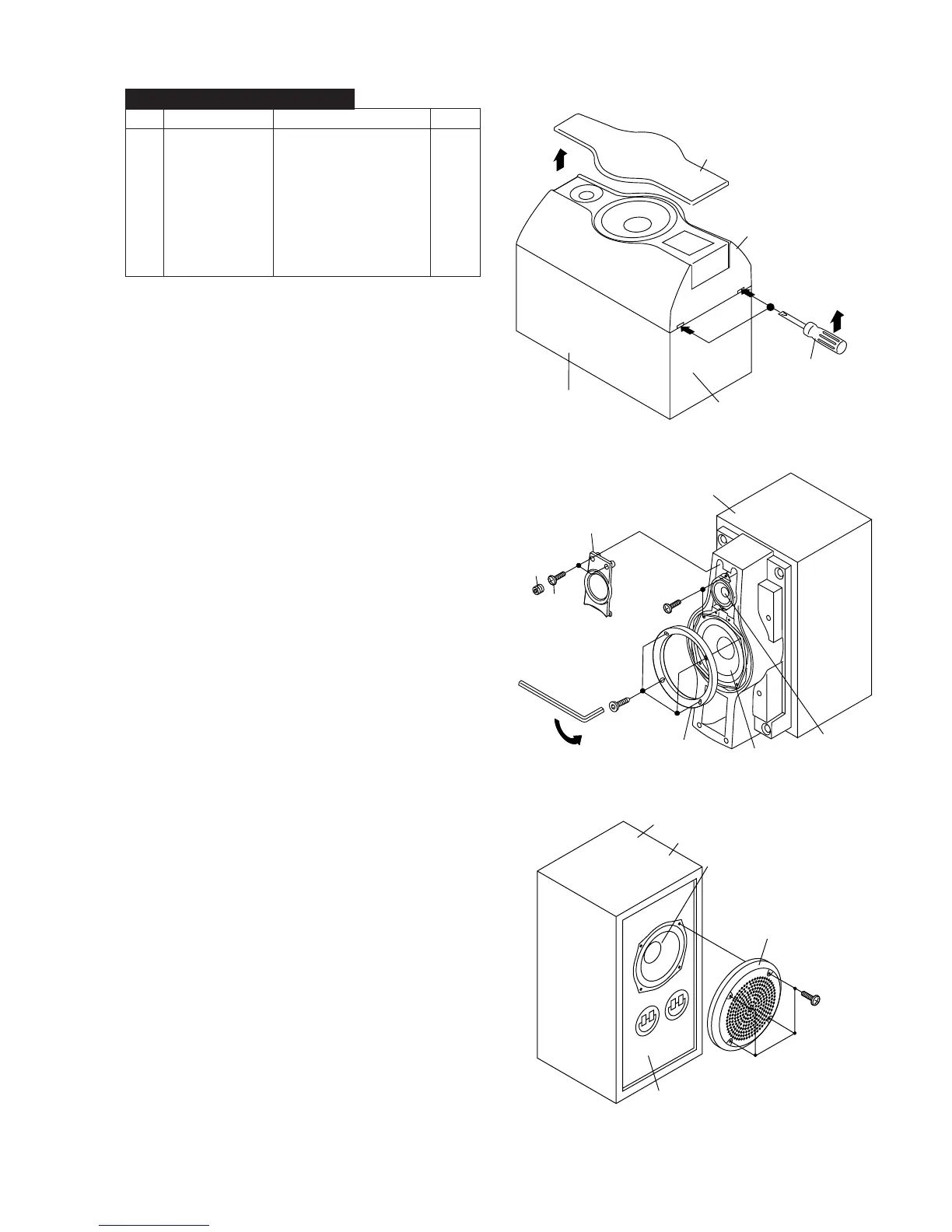

STEP REMOVAL PROCEDURE FIGURE
Figure 19-1
Figure 19-2
Figure 19-3
Top Side
Rear Side
Sub Woofer
(A10)x1
(A9)x4
ø4x20mm
Speaker Box
Driver should
be pried away
from Speaker Box.
Screw Driver
(A1)x1
(A2)x1
Speaker Box
Bottom Side
(A3)x4
ø4x16mm
(A4)x1
Woofer
Speaker Box
Tweeter
(A5)x2
(A7)x1
(A6)x2
ø3x10mm
(A8)x2
ø3x10mm
CP-RW5000H/CP-RW5000W
