CD-SW330
2 – 31
THE TW
O
SLOT
MUST FREE
FROM GREASE SC141
APPLY GREASE SC141
BELOW THE MARKING
FOR BOTH PORTION

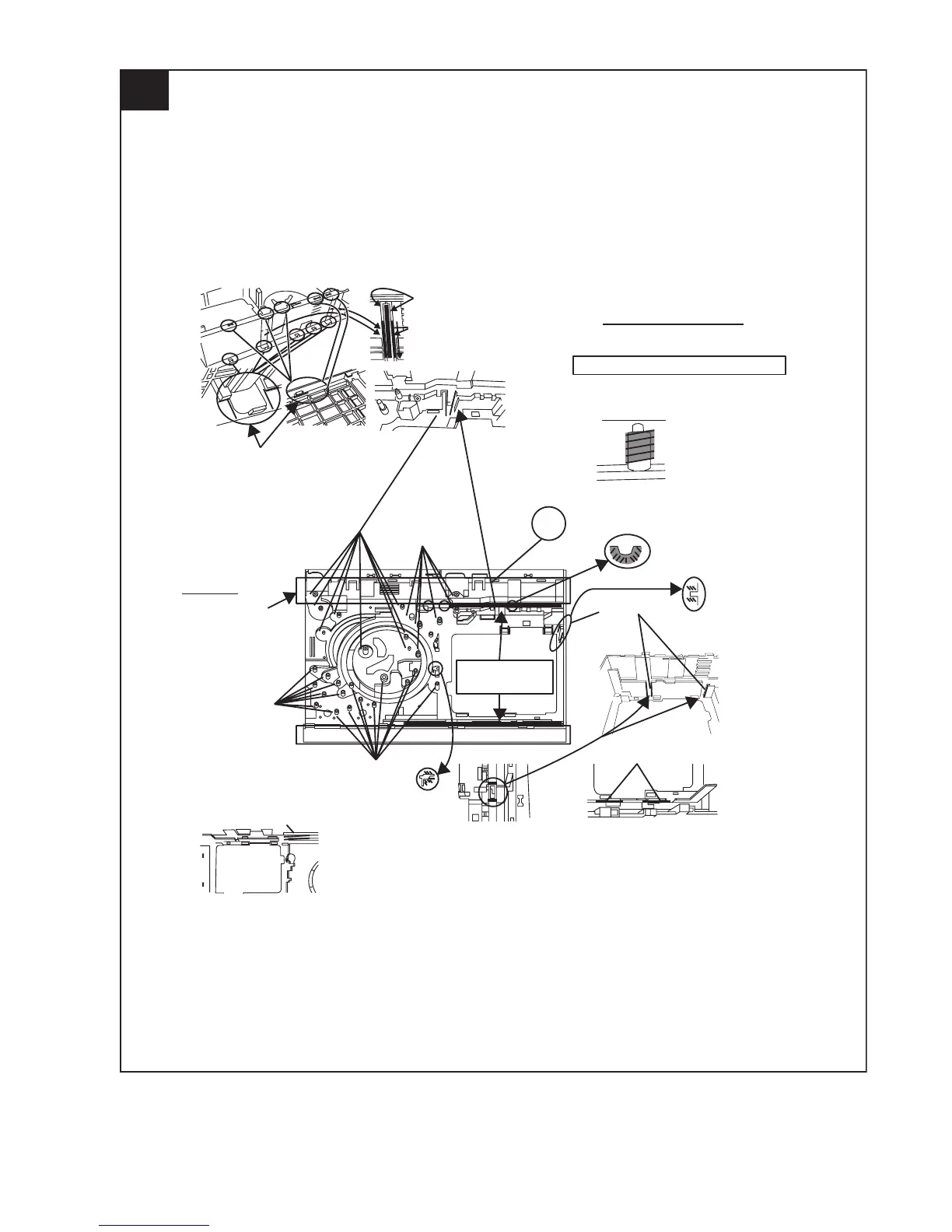

ASSEMBLY SEQUENCE
1. APPLY GREASE SC141 TO MAIN BASE
GREASE SC141 APPLICATION AREA
ALL BOSS
APPLY GREASE
SC141
APPLY GREASE
SC141
1 RIB ONLY
APPLY GREASE SC141
APPLY GREASE
SC141
APPLY GREASE SC141 AT 3 HALF MOON
CAUTION
TRAY SLIDING
AREA MUST
FREE FROM
GREASE SC141
APPLY GREASE
SC141
APPLY GREASE
SC141
APPLY GREASE SC141
AT BOTH SLOT
APPLY GREASE SC141
INSIDE SLOT
APPLY GREASE SC141 AT WALL
105
27
36
38
Table of Contents
Default Chapter
1
Table of Contents
1
Chapter 1. General Description
3
Important Service Safety Precaution
3
Important Service Notes (for U.S.A Only)
3
Specifications
4
Names of Parts
5
Remote Control
6
Chapter 2. Adjustments
7
Mechanism Section
7
Test Mode
8
CD Section
10
CD Changer Mechanism Section
11
Chapter 3. Mechanism Blocks
43
Caution on Disassembly
43
Removing and Reinstalling the Main Parts
46
Chapter 4. Diagrams
48
Main Block Diagrams
48
CD Block Diagrams
50
Waveforms of Servo Circuit
52
CHAPTER 5. CIRCUIT DESCRIPTION 1] Waveforms of Servo Circuit
52
IC Voltage
53
Chapter 6. Circuit Schematics and Parts
55
Notes on Schematic Diagram
55
Types of Transistor and LED
55
Schematic Diagram
56
Wiring Side of PWB
74
Chapter 7. Flowchart
92
Troubleshooting
92
Chapter 8. Others
96
Function Table of IC
96
FL Display
103
Parts Guide
105
