CD-SW330
6 – 1
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS LAYOUT
[1]
Notes On Schematic Diagram
•Resistor:
To differentiate the units of resistors, such symbol as K
and M are used: the symbol K means 1000 ohm and
the symbol M means 1000 kohm and the resistor with-
out any symbol is ohm-type resistor. Besides, the one
with “Fusible” is a fuse type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used:
this symbol P means pico-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/
withstand voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for
this model are subject to change for improvement with-
out prior notice.
• The indicated voltage in each section is the one mea-
sured by Digital Multimeter between such a section
and the chassis with no signal given.
1. In the tuner section,
indicates AM
indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ “ ( ) are important
for maintaining the safety of the set. Be sure to replace
these parts with specified ones for maintaining the
safety and performance of the set.

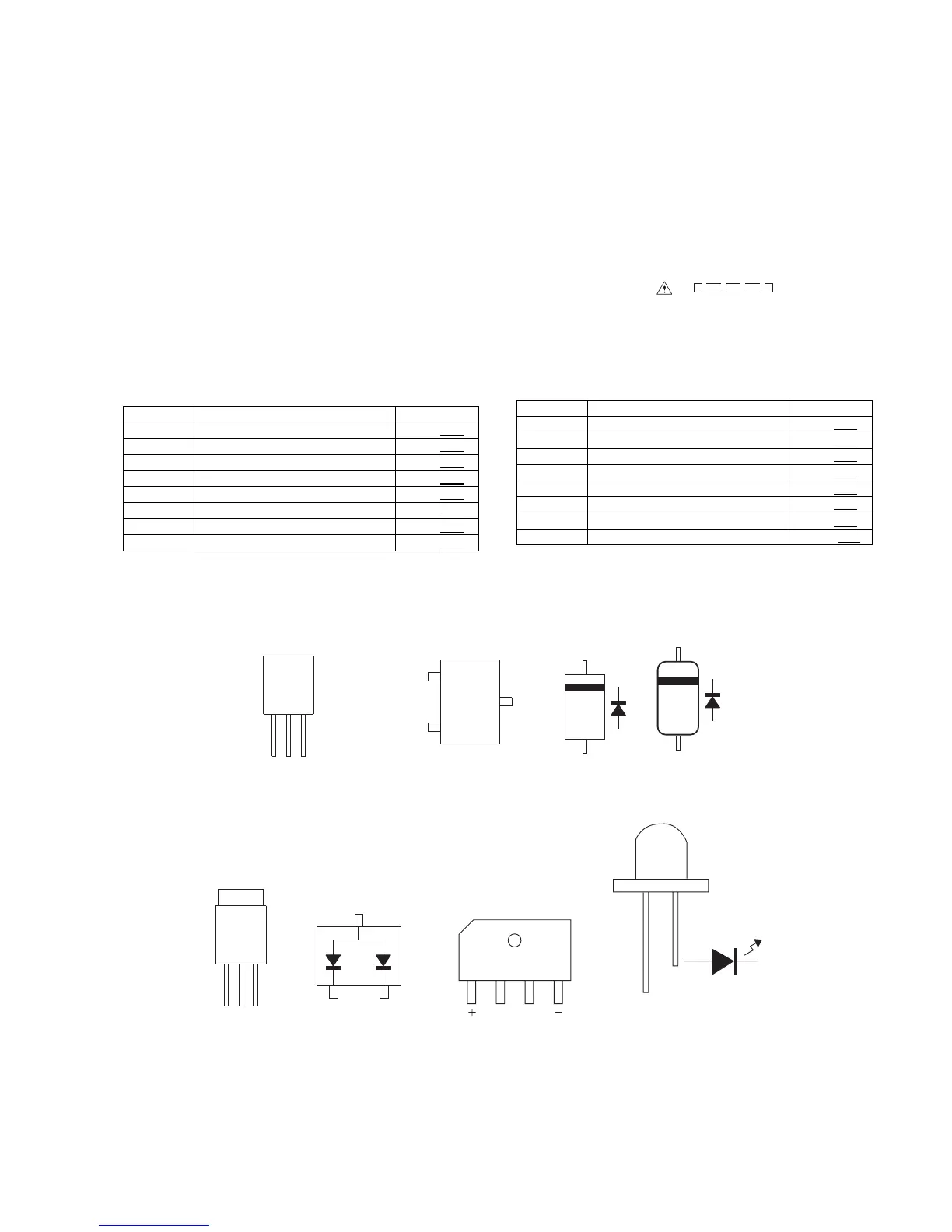

[2] Types Of Transistor And LED
REF. NO DESCRIPTION POSITION
SW701 POWER ON /STAND-BY ON—OFF
SW702 CD ON—OFF
SW703 TUNER (BAND) ON—OFF
SW704 AUX ON—OFF
SW705 TAPE ON—OFF
SW706 STOP ON—OFF
SW707 PLAY ON—OFF
SW708 FAST FORWARD/PRESET UP ON—OFF
SW709 FAST REWIND/PRESET DOWN ON—OFF
SW711 DISC 1 ON—OFF
SW712 DISC 2 ON—OFF
SW713 DISC 3 ON—OFF
SW714 DISC 4 ON—OFF
SW715 DISC 5 ON—OFF
SW716 OPEN/CLOSE ON—OFF
VR701 VOLUME MAX—MIN
REF. NO DESCRIPTION POSITION
KRA102 S
KRC107 S
KRC102 S
KRC104 S
KTA1504 Y
KTC3875 GR
KTA1504 GR
KTA1554 T
SS8550H
B
(3)
E
(1)
C
(2)
TOP
VIEW
KDS184
KDS226
TOP VIEW
TOP VIEW
KTA1271 Y
KTA1273 Y
KTA1274 Y
KTA1266 GR
VIEW
FRONT
E C B
(S)(G)(D)
(1)(2)(3)
VIEW
FRONT
1 2 3
KIA7805
1N4004S
DRL204F
MA111
HSS4148
TS20P05G
D10XB60F
AC AC
VIEW
FRONT
FRONT
VIEW
SLR342VC
SDPB40F2A
343BD2S
503BC2E
KTC3199 GR
KTC3200 GR
KTC3203 Y
KTC3205 Y
To Next Page
