[4] Names Of Parts
Display
CD-SW330

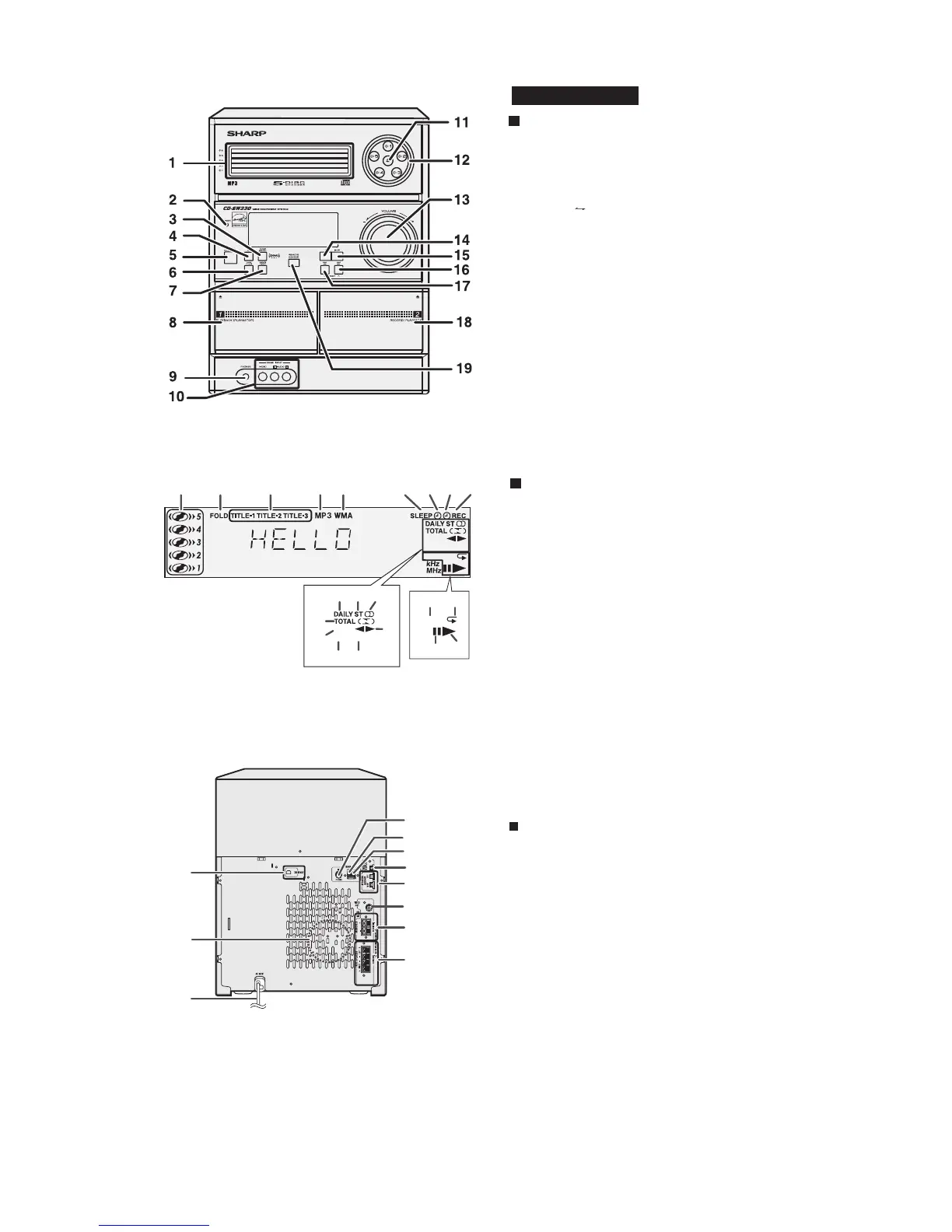

Front panel
1. Disc Trays
2. Timer Indicator
3. Tuner (Band) Button
4. CD Button
5. Power On/Stand-by Button
6. Tape (1 2) Button
7. Game/Video Button
8. Tape 1 Cassette Compartment
9. Headphone Jack
10. Game/Video Input Jacks
11. Disc Tray Open/Close Button
12. Disc Number Select Buttons
13. Volume Control
14. CD or Tape Stop Button
15. CD Play or Repeat, Tape Play Button
16. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up, Time Up Button
17. CD Track Down or Fast Reverse, Tape 2 Fast Rewind,
Tuner Preset Down, Time Down Button
18. Tape 2 Cassette Compartment
19. Remote Sensor
1. Disc Number Indicators
2. MP3/WMA Folder Indicator
3. MP3/WMA Title Indicators
4. MP3 Indicator
5. WMA Indicator
6. Sleep Indicator
7. Timer Play Indicator
8. Timer Recording Indicator
9. Tape 2 Record Indicator
10. Total Indicator
11. Daily Timer Indicator
12. FM Stereo Mode Indicator
13. FM Stereo Receiving Indicator
14. Tape Play Indicator
15. Extra Bass Indicator
16. XM Category Indicator
17. XM Channel Indicator
18. Memory Indicator
19. Disc Repeat Play Indicator
20. Disc Pause Indicator
21. Disc Play Indicator
Rear panel
1. XM Mini-Tuner Jack
2. Cooling Fan
3. AC Power Cord
4. FM 75 Ohms Antenna Jack
5. AM Antenna Ground Terminal
6. AM Loop Antenna Terminal
7. Subwoofer Light-up Jack
8. Speaker Light-up Jacks
9. Video out Jack
10. Subwoofer Terminal
11. Front Speaker Terminals
4
1
7
8
9
5
6
11
10
3
2
12 3 45 6789
MEMORY
CHAN
CAT X-BASS
11 1213
10
14
1516
17
CHAN
CAT X-BASS
18 19
20
21
MEMORY
1 – 3
