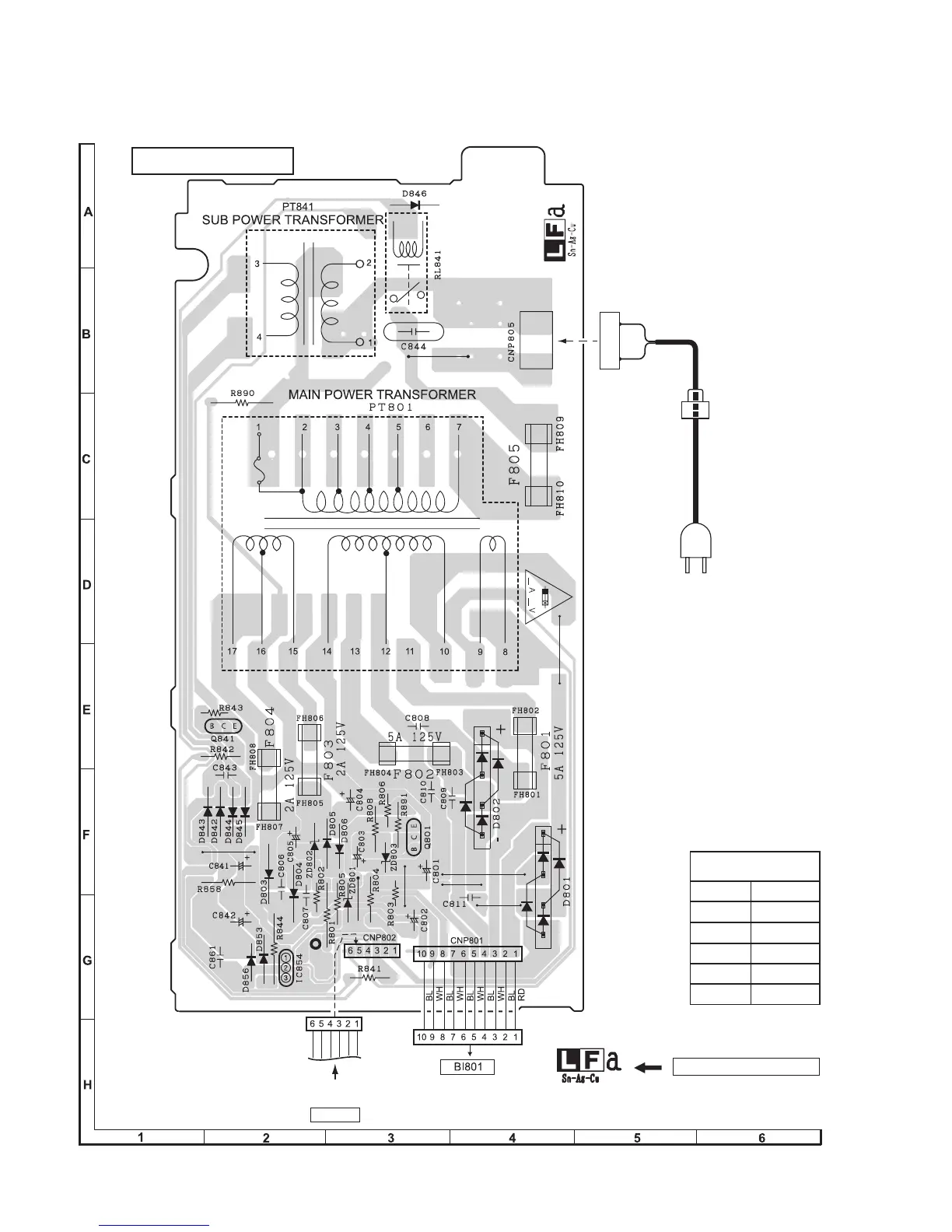

Figure 6-23: WIRING SIDE OF POWER PWB (TOP VIEW)
AC POWER SUPPLY
CORD
AC 120V, 60Hz
CNS701
CNS801
BK
WH
8A 125V
T. F
RD GR YL GR YL GR
FROM
DISPLAY PWB-B1
BI701
FROM MAIN PWB-A1
POWER PWB-A2
COLOR TABLE
RD
BK
BL
RED
WH WHITE
BLACK
BLUE
GR
YL
GREEN
YELLOW
Lead-free solder indication
Lead-free solder is used in the POWER PWB.
Refer to "Precautions for handling lead-free solder"
for instructions and precautions.
