Sharp CD-SW330 User Manual

CD-SW330
6 – 34

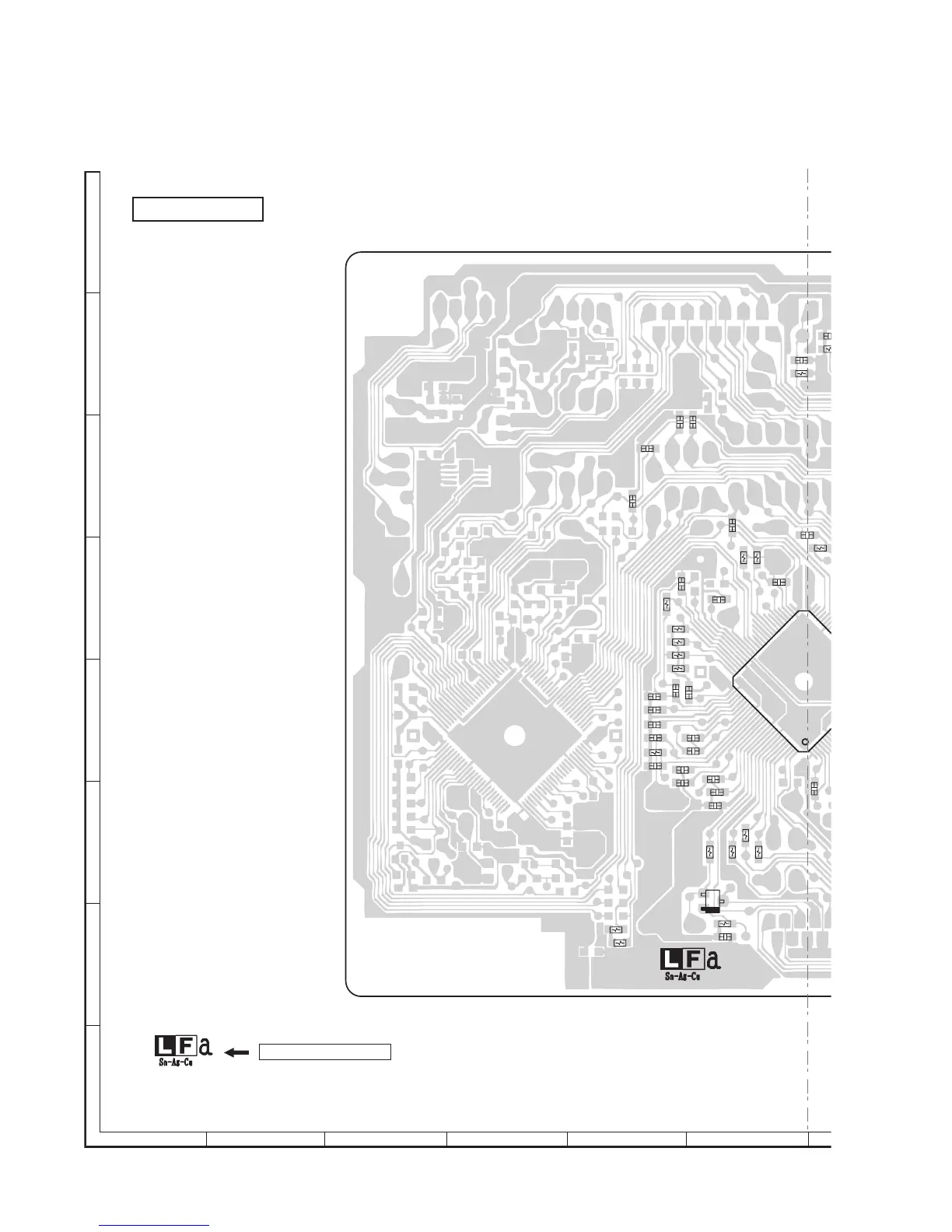

Figure 6-32 WIRING SIDE OF CD MP3 PWB (BOTTOM VIEW) (1/2)
CD MP3 PWB-C
RA16
RA15
C5
C6
C53
R37
R38
C51
C49
C48
R55
C71
R1
C16
C13
C14
C10
R2
C52
C54
C55
R34
R3
R5
R4
C7
C8
C25
1
C11
C12
C20
C21
C19
C23
R10
R8 R9
R6
R11
Q1
C18
R7
C17
C50
Lead-free solder indication
Lead-free solder is used in the CD MP3 PWB.
Refer to "Precautions for handling lead-free solder" for instructions
and precautions.
A
B
C
D
E
F
G
H
1
23456

Sharp CD-SW330 Specifications

General

Brand	Sharp
Model	CD-SW330
Category	Stereo System
Language	English
