GB-20

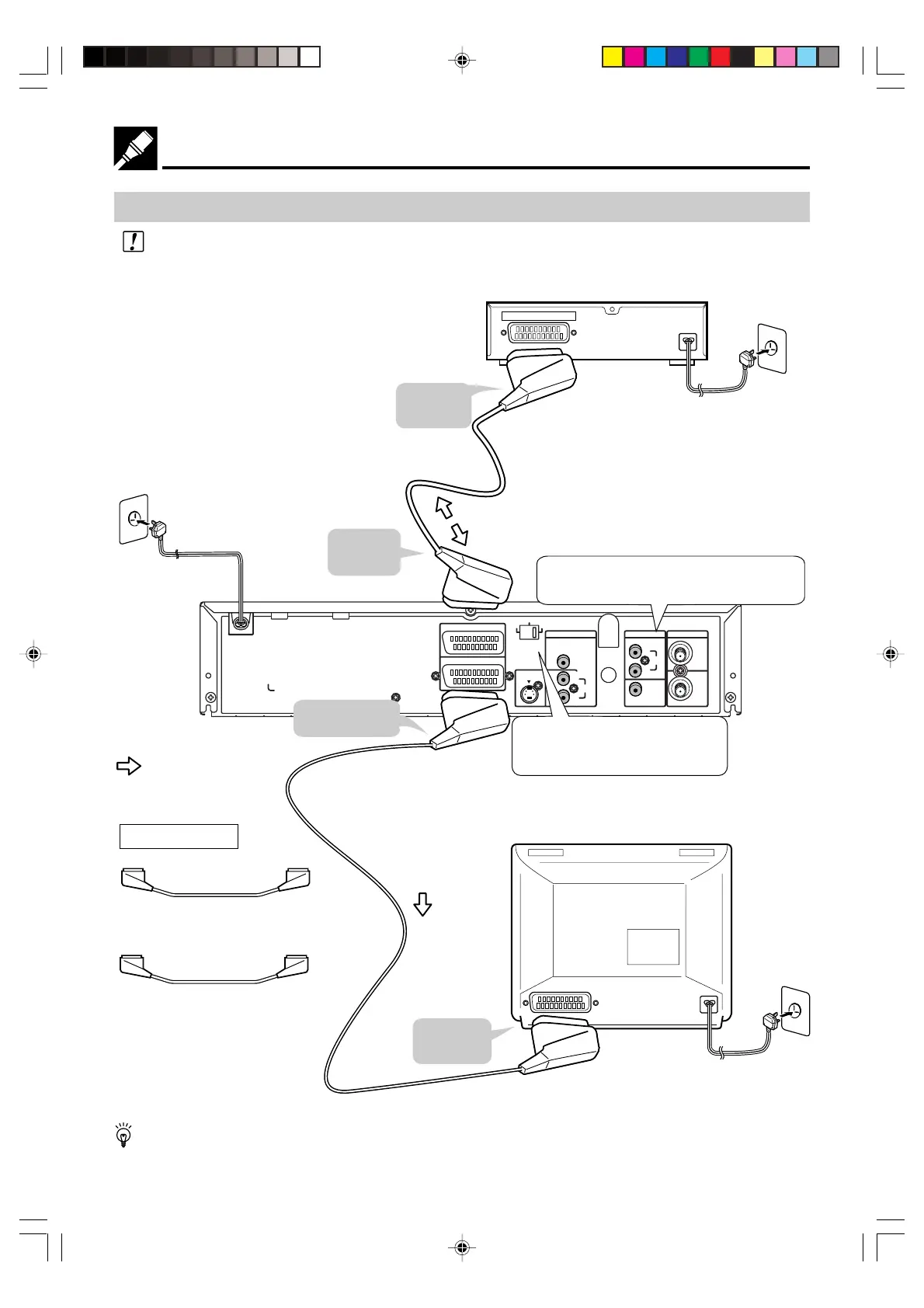

Connecting a TV with LINE 1 (TV) Output and LINE 2 Input SCARTS
Use the SCART leads (one SCART lead: supplied) to connect the Unit to your TV and VCR or
DECORDER.
The factory default setting for the OUTPUT SELECTOR is “VIDEO”. If your TV supports the higher quality
modes S-VIDEO or RGB via the SCART, then please set the selector for your preference.
Required leads
SCART lead (the other SCART
lead: commercially available)
SCART lead (one SCART lead:
supplied)
: Signal flow
Basic Connection
LINE 2
LINE 1 (TV)
S-VIDEO
OUTPUT
SELECTOR
RGB VIDEO
S-VIDEO
AUDIO
VCR/DVD OUT
R
L
AUDIO
VIDEO
ANTENNA
IN
OUT
DVD OUT
R
L
AUDIO
TV
To LINE 2
SCART
To LINE 1 (TV)
SCART
To SCART
input
VCR/DVD OUT jacks can be used instead of
LINE 1(TV), depending on your TV.
Change the position according to
the signal type (VIDEO/S-VIDEO/
RGB) that is output to TV during
DVD playback.
To SCART
output
VCR or DECODER
SCART OUTPUT
