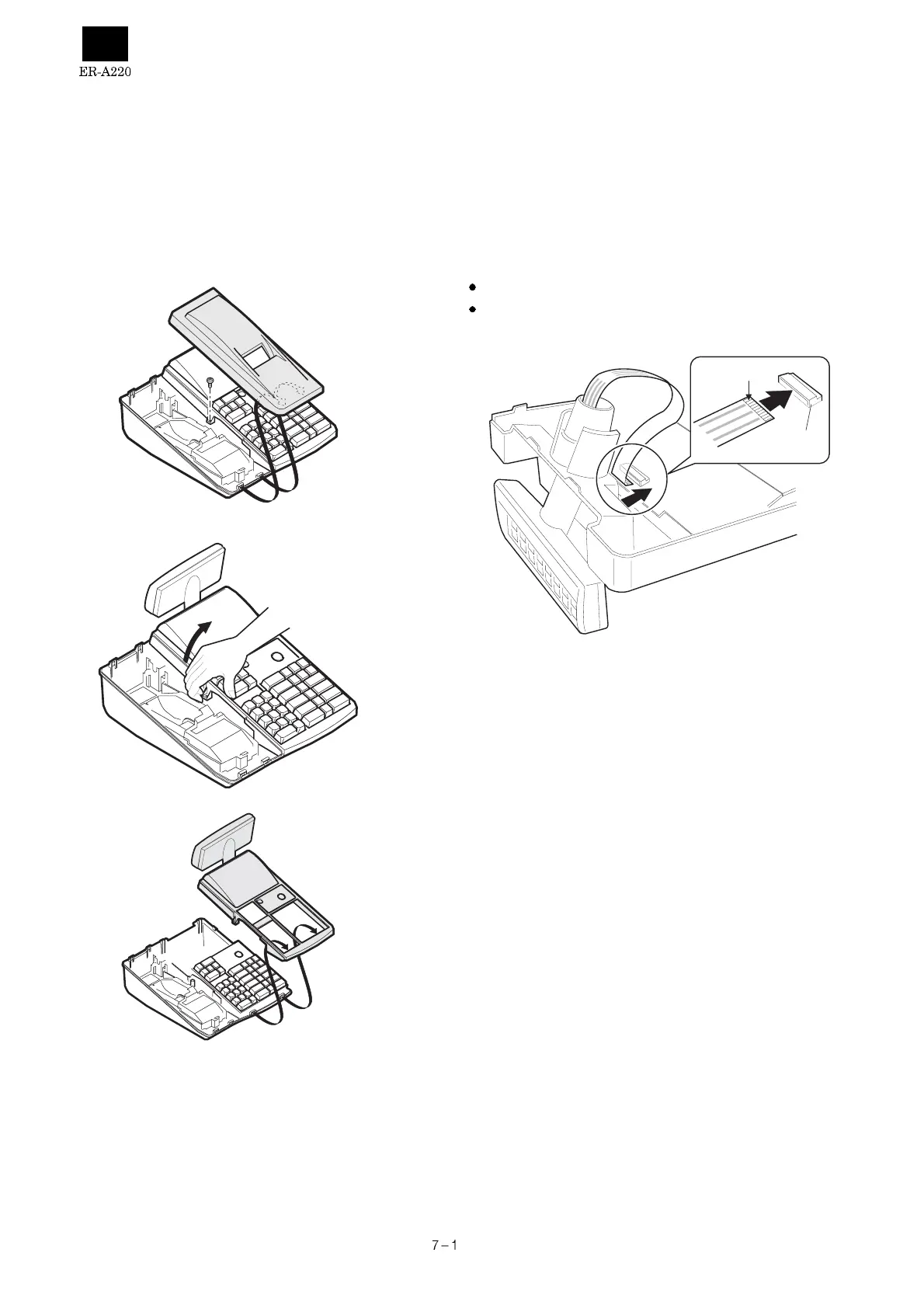

CHAPTER 7. SERVICE PRECAUTION
1. Cautions to be taken when removing
the upper cabinet
When removing the upper cabinet, first remove the printer cover
and then remove the upper cabinet from the let side, as shown in
the sketch below.
2. Cautions to be taken when installing
the pop-up display connector cable
Exercise care not to have the wrong direction of the pop-up display
connector cable when connecting the cable to the Key I/F connector
CN14.
When connecting the cable, make sure:
The cable is not kinked.
The cable contact surface points upward against the PWB when
inserting the cable.
CN14
Surface points
