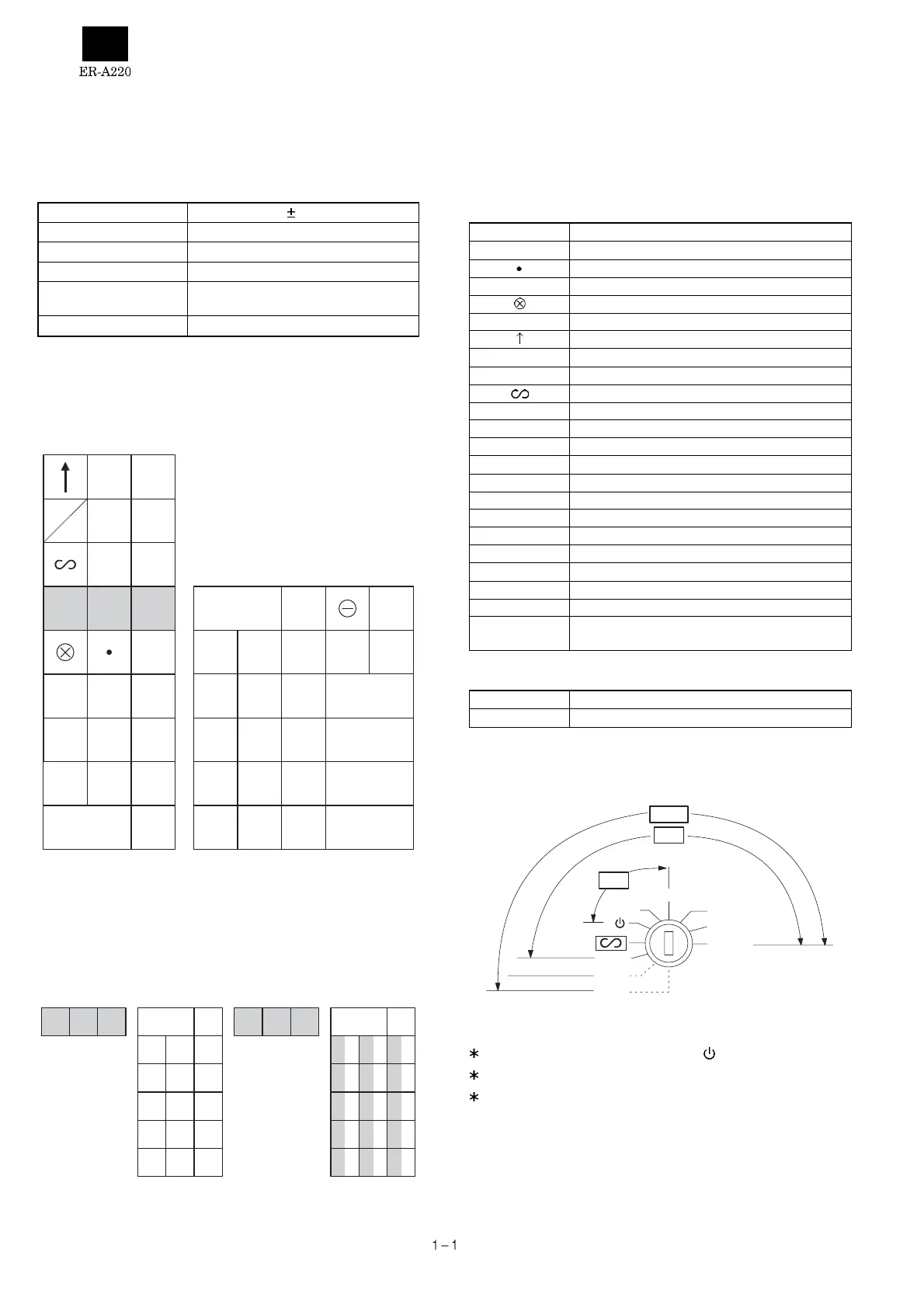

CHAPTER 1. SPECIFICATIONS
1. Appearance/Rating
1) Rating
Power source AC local voltage( 10%), 50/60Hz
Power consumption Max. 45W, Stand-by : 20W
Operating temperature 0°C~40°C
Operating humidity 10%~90%
Physical dimensions,
including the drawer
330(W) x 363(D) x 238(H)mm
Weight 8.9 kg
2. Keyboard
1) Standard keyboard layout (15 Departments)
Fig. 2-1
2) Option keyboard layout
There are following Department keylayout selections by PGM pro-
gramming (JOB#61-A)
3) Key top name
Standard Key Top
KEY TOP DESCRIPTION
0 to 9,00 Numeric keys
Decimal point key
CL Clear key
Multiplication key
1 to 15 Department 1 to 15 keys
Paper feed key
CASH # Cashier code entry key
RA Received on Account key
Void key
AUTO 1, 2 Automatically Entry key 1, 2
EX Currency conversion key
PLU PLU/Subdept code entry key
AMT Amount Entry key
%1, 2 % key 1, 2
(–) Discount key
SHIFT Department shift key for DEPT. 16 – 30 key
CH Check key
CR Credit key
TL/NS Total and No sale key
RCPT/PO After receipt issue & Paid out key
RF Refund key
#/TM/ST
Non-add code entry, Time display and Tax
included subtotal key
Optional Key Top
KEY TOP DESCRIPTION
16-30 Department key 16-30
3. Mode switch
Fig. 3-1
The key can be removed in the REG or position.
In the SRV’ mode, key inputs are prohibited and no display is made.
With the key in the off position power is not supplied to the main
PWB.
000
123
11
12
456
789
13
14
15
WYPL2
WYPL2
WYPL2
AMTPLU
CL
ESC
SHIFT
AUTO
2
AUTO
1
%1 %2
CR
CH
#/TM/ST
TL/NS
CASH
#
RF
VAT
RCPT
PO
EX
16
27
38
49
510
RA
11
12
13
14
15
WYPL2
AMTPLU
VAT
1. 15 Departments 2. 30 Departments
16
27
38
49
510
SHIFT
11
12
13
14
15
WYPL2
AMTPLU
VAT
16
27
38
49
510
SHIFT
2520 30
2419 29
2318 28
2217 27
2116 26
X2/Z2
X1/Z1
MGR
REG
OP,X/Z
PGM
(SRV)
(SRV')
MA
SRV
OP
