[Functions]
Function for each key position
SRV ’ : System reset
SRV : Service mode (SRV/PGM programming)
PGM : Allows programming of an item that is not changed fre-
quently, in addition to the PGM mode programming.
OP, X/Z : Allows X or Z operation by cashiers.
REG : Allows registrations.
MGR : Allows the operations, by authorized person such as a
manager (e.g. correction after transaction finished or
cancellation of entry limits), which are not permitted to
ordinary cashiers.
X1/Z1 : Allows reading and resetting of a day’s sales total.
X2/Z2 : Allows reading or resetting sales totals in a specified
period.
: Switching off the display to prevent key board entries.
(The setting turn off the AC power.)
: After-transaction voiding (void mode)

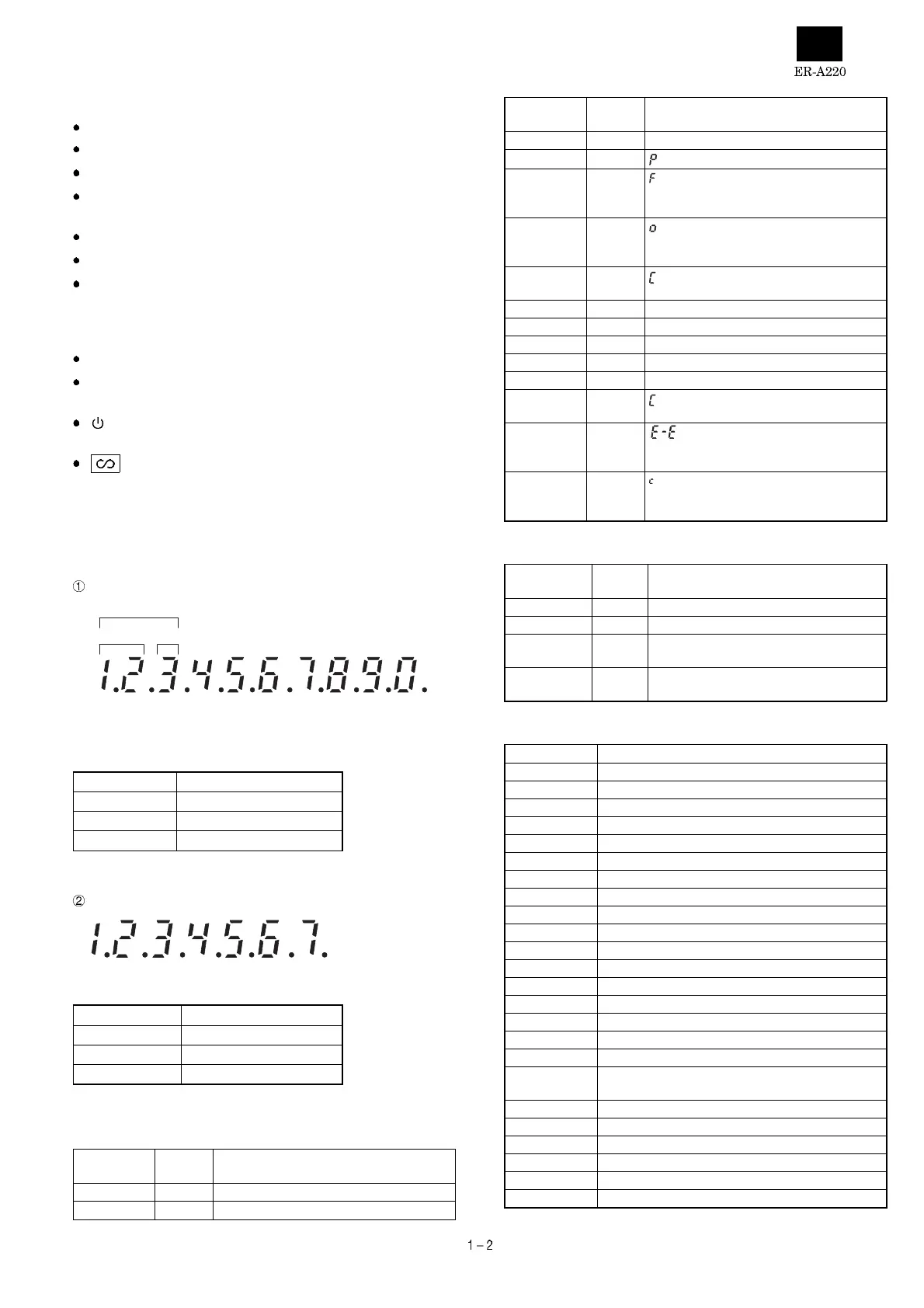

4. Display
1) Layout
Operator display
Fig. 4-1
7 segment display (LED)
No. of positions 10
Color of display Yellow Green
Character size 14.2 (H)
✕ 8.0 (W) mm
Customer display (Pop-up type)
Fig. 4-2
7 segment display (LED)
No. of positions 7
Color of display Yellow Green
Character size 14.2 (H)
✕ 8.0 (W) mm
Display contents
<Segment>
Display
Position
Description
Amount 1-8
Minus sign 4-10 – : Floating
Display
Position
Description
Error 8-10 Exx : xx = Error code
PGM Mode
10
TL/NS
CH, CR 10
: Lights up when a registration is
finalized by depressing TL/NS,
CH, CR key
SUB TOTAL/
short tender 10
: Light up when the subtotal is
displayed or when the amount
tendered is smaller
Change
10
: Light up when the change due
amount appears in the display.
Department 9-10 No zero-suppressed
PLU 8-10 No zero-suppressed
Repeat 8 Endless count, starting from 2.
Cashier No. 2 –x– : Cashie No.
Receipt OFF 9 _
CCD
compulsory
10
: Light up when CCD is compulsory
EJ full
8 - 10
: Light up when EJ memory is FULL
at the timming of key entry (by
PGM selection).
currency
conversion
10
: Light up when the EX key is
pressed to calculate a subtotal in
foreign currency.
<Decimal Point>
Display
Position
Description
Decimal point 4-1
TAB 4-1
EJ near full
8, 9
(at the timing of finalization of a
transaction) (by PGM selection)
Power save
mode
10
Power save mode
Error code list
No. Description
01 Registration error
02 Misoperation error
03 Desired code is not programmed yet
04-06 ( not used )
07 Memory is full
08-10 ( not used )
11 Compulsory of pushing the SBTL key
12 Compulsory of tendering
13-21 ( Not used )
22 Over lapped cashier error
23 Cashier resetting over error
24-31 ( Not used )
32 The cashier is not assigned
33 ( Not used )
34 Overflow limitation
35 The open price entry is inhibited
36 The unit price entry is inhibited
37
The direct non-tendering finalization after previous
tender entry is inhibited.
38-66 ( Not used )
67 REG Buffer full (ST VOID is inhidited)
68-85 ( not used )
86 Communication error (ECR data copy)
87 Data error (ECR data copy)
88 Time out error (ECR data copy)
RCPT
OFF
DEPT
REPEAT
PLU/SUB
